CRL 8972GE 105 No Hold Open Concealed Closer Package for Side-Load Installation

CRL 8972GE 105 No Hold Open Concealed Closer Package for Side-Load Installation

C.R. Laurence 8972GE 105 No Hold Open Overhead Concealed Closer Package for Side-Load Installation A.D.A. "GE" Package is designed for seamless integration and functionality in commercial and residential spaces. This overhead door closer is ideal for doors with a 1/2" top rail depth, ensuring a sleek appearance while adhering to accessibility standards. The package includes a medium spring size door closer, mounting clips, and an adjustable side-load bottom pivot set for threshold mounting. With independent dual-action valves, you can easily control both closing and latching speeds, allowing for smooth operation tailored to your needs. This model features a no hold open mechanism with a maximum opening angle of 105°, making it suitable for various door types, including aluminum and hollow metal. Built from durable aluminum, the closer is UL listed and comes with a 5-year limited warranty, ensuring reliability and performance. However, it is important to note that it should not be used with doors exceeding 200 lbs or wider than 36". The recommended installation also includes an auxiliary floor or overhead door stop to prevent damage from over-extension. C.R. Laurence’s commitment to quality and compliance makes this closer an excellent choice for any project requiring ADA compliance and superior door control.

105 No Hold Open Overhead Concealed Closer Package for Side-Load Installation A.D.A. "GE" Package

• For Doors with 1/2" (12.7 mm) Top Rail Depth
• Adjustable Side-Load Bottom Pivot Set for Threshold Mounting
• Includes All Necessary Parts
• 5 Year Limited Warranty
• UL Listed

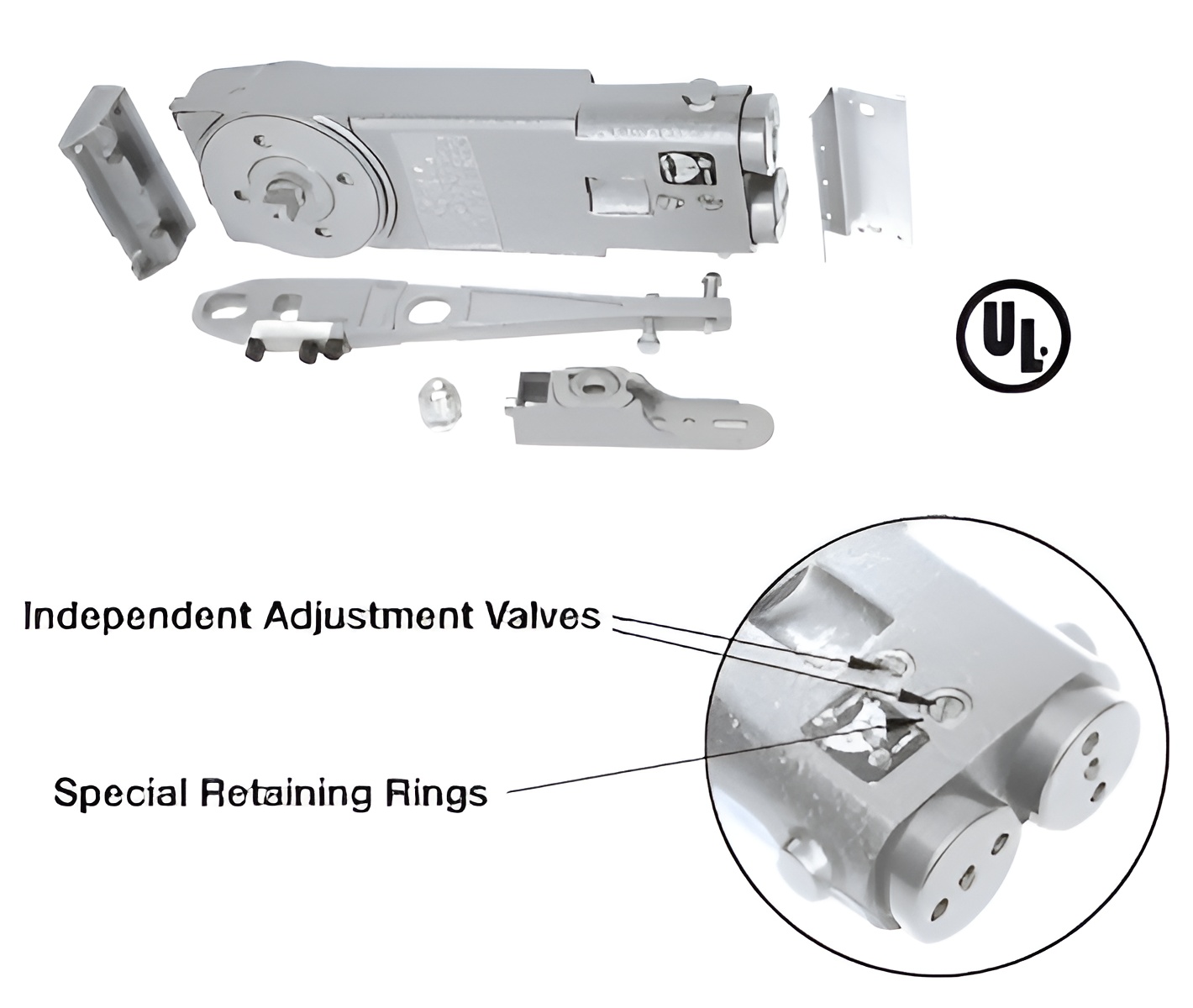

These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "S" Side-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.


Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
