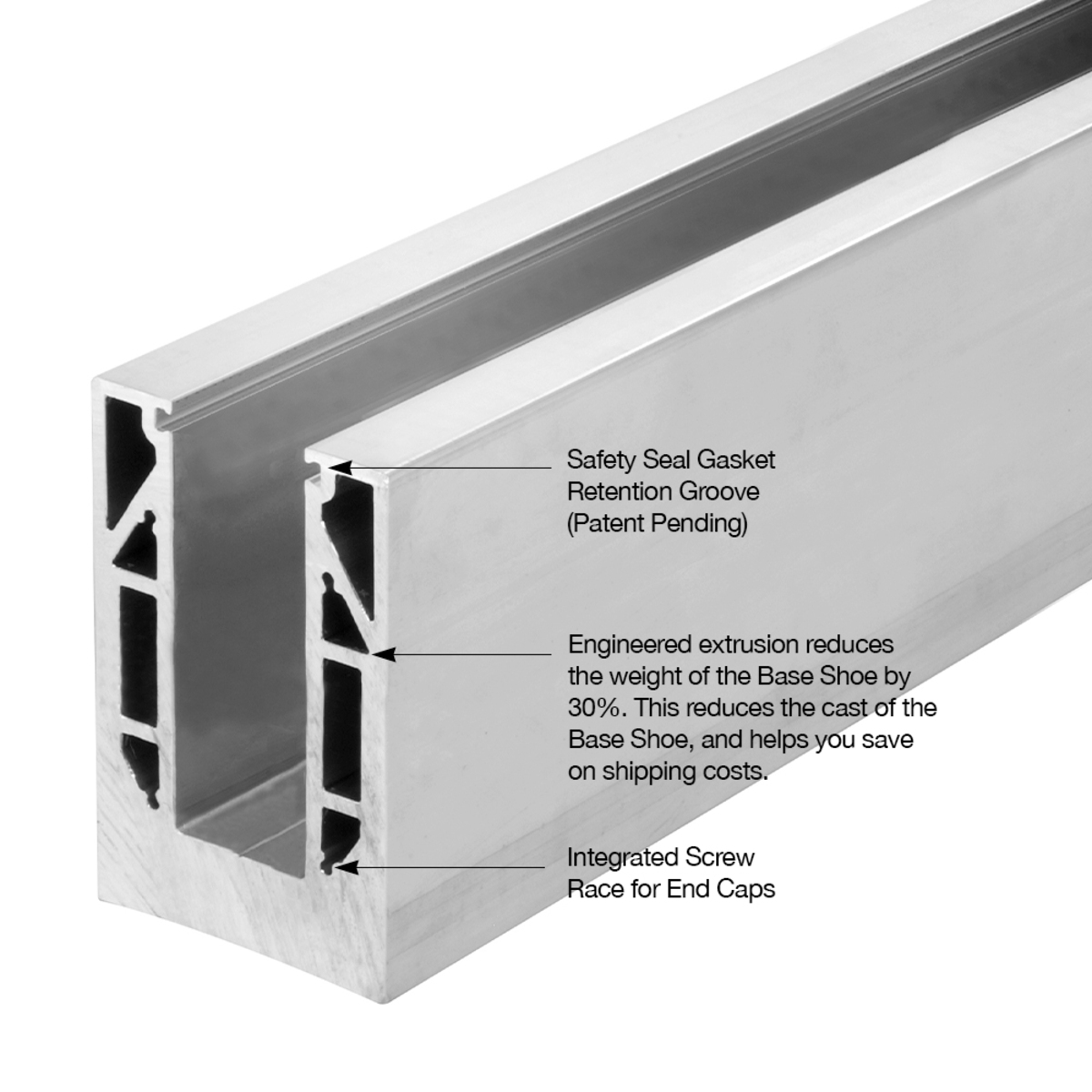

C.R. Laurence 9BL56F 9BL Series Mill 120" Square Base Shoe Fascia Mount is expertly engineered to accommodate 9/16" (13.52 mm) laminated tempered glass, making it an ideal choice for modern glass railing systems. Designed with the 2015 IBC code changes in mind, this base shoe is 30% lighter than the industry standard, providing a cost-effective, eco-friendly solution that also reduces shipping expenses. Constructed from high-quality aluminum, the 9BL56F boasts impressive load-bearing capabilities, meeting and exceeding a 200lb load with a remarkable 4x safety factor. This ensures durability and reliability for various applications. The base shoe is compatible with CRL's patented TAPER-LOC® System and can be easily cut to size using a chop saw, streamlining installation. It's important to note that CRL recommends consulting with a glass fabricator before wet setting laminated tempered glass. Additionally, while this base shoe features pre-drilled holes with a tolerance of +1/8" (3 mm) / -1/16" (1.5 mm), installers should mark the hole positions before drilling into concrete or steel substrates for optimal accuracy. The 9BL56F is finished in a sleek mill color, measuring 4-3/4" (121 mm) in height, 2-7/8" (73 mm) in width, and 120" (3048 mm) in length, making it a versatile addition to any architectural project.

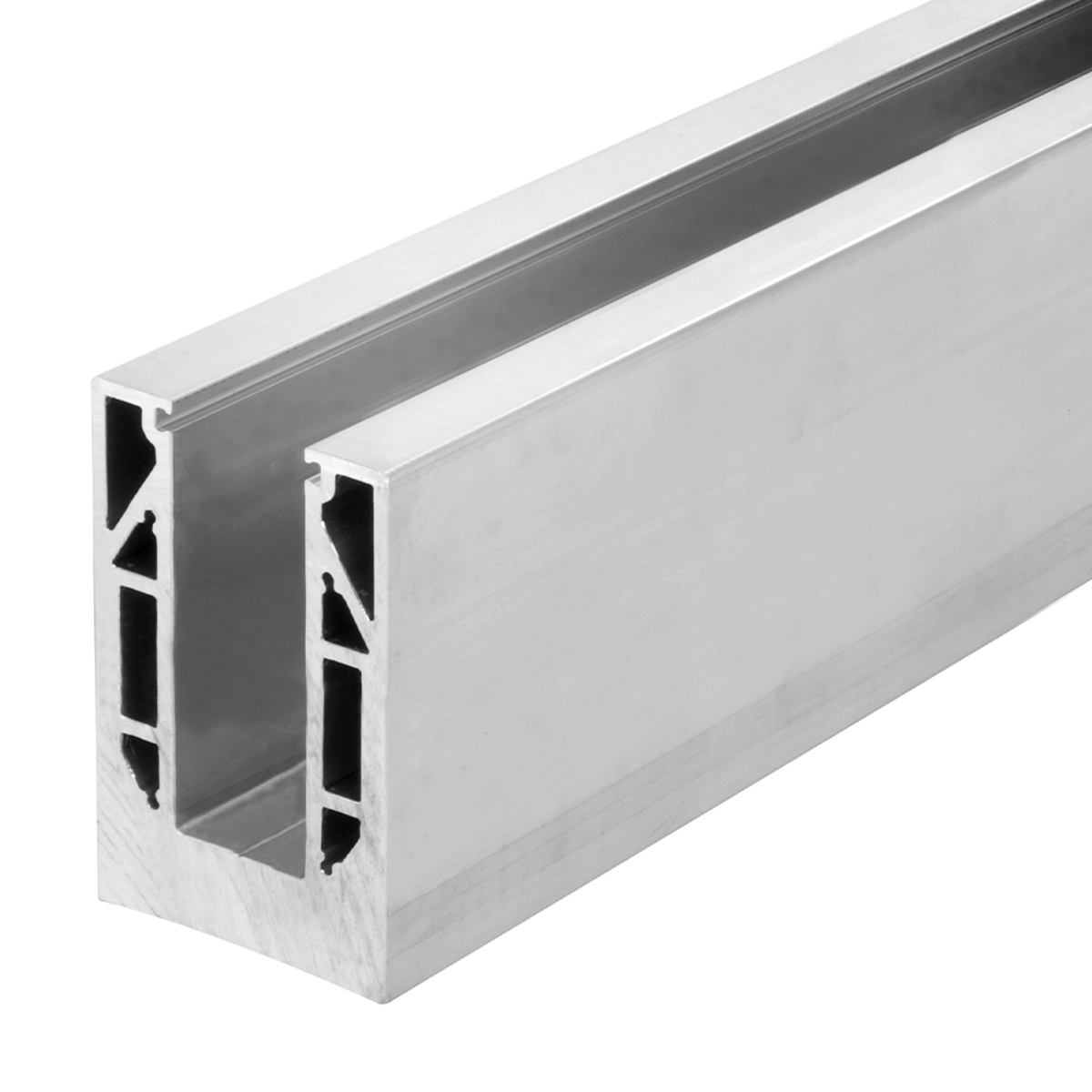

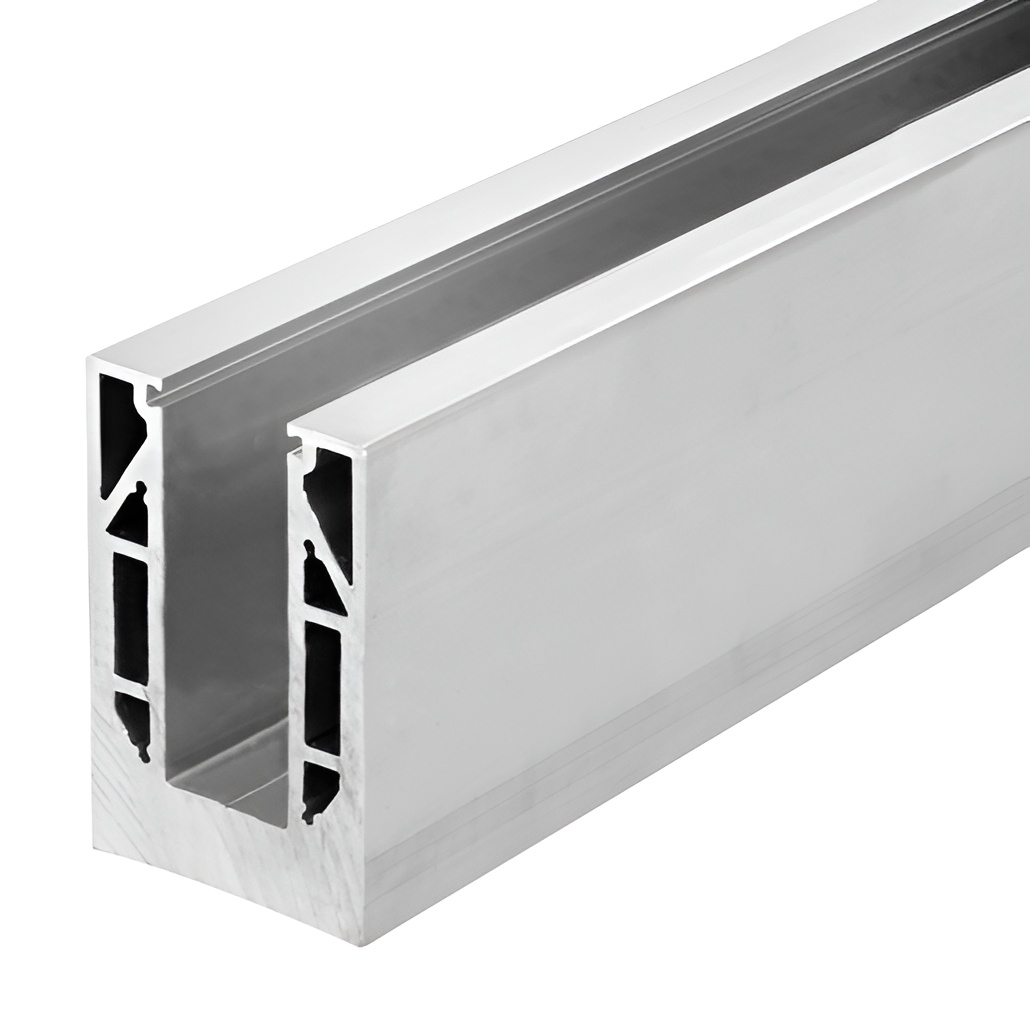

9BL Series Mill 120" Square Base Shoe Fascia Mount Drilled for 9/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

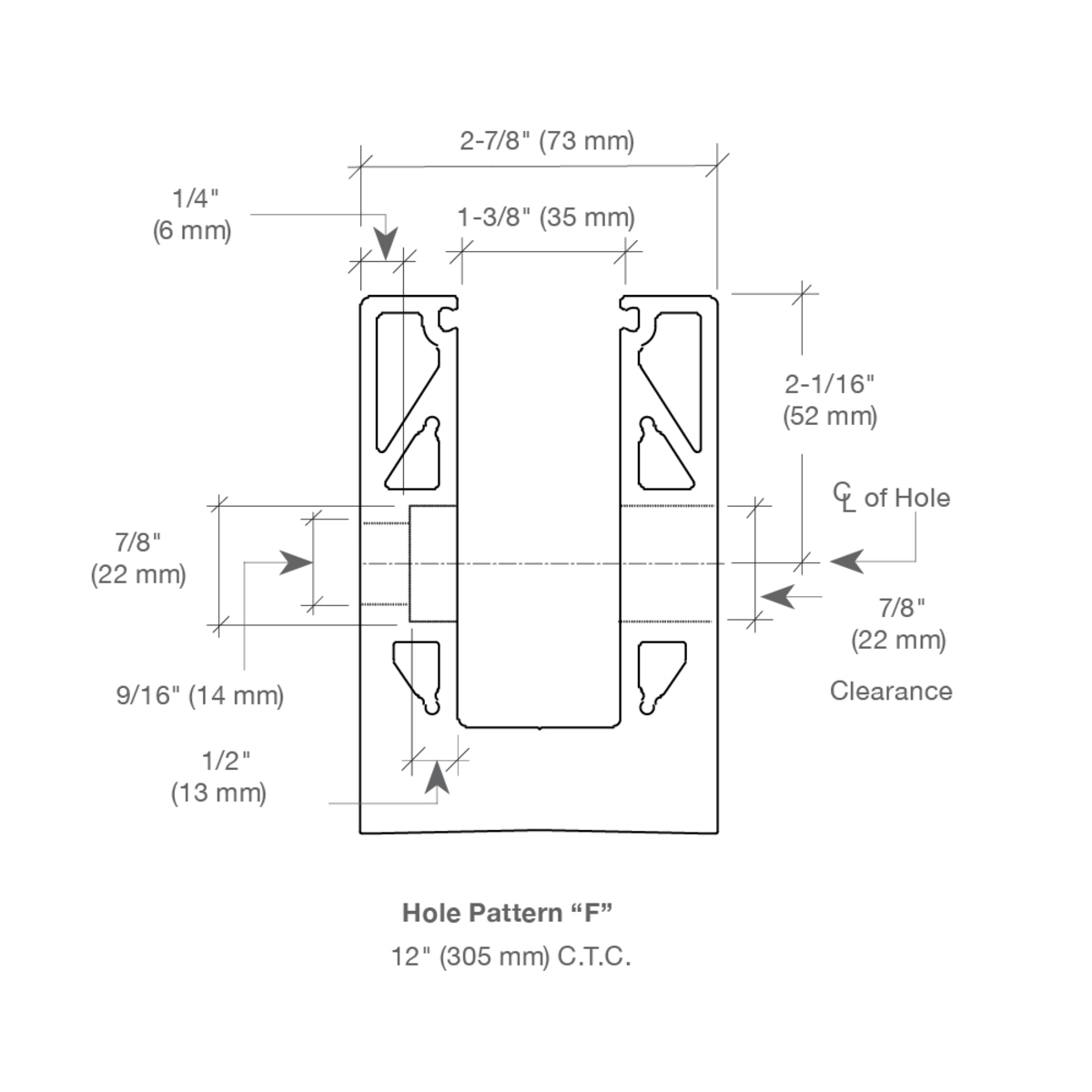

Drilling Center To Center: 12 in. (305 mm)
Finish/ Color:: Mill
Glazing Thickness: 9/16 in. (14 mm)
Glazing Type: Laminated
Height: 4-3/4 in. (121 mm)
Length: 120 in. (3048 mm)
Material: Aluminum
Shipping Limitations: No UPS - Common Carrier Only
Width: 2-7/8 in. (73 mm)
