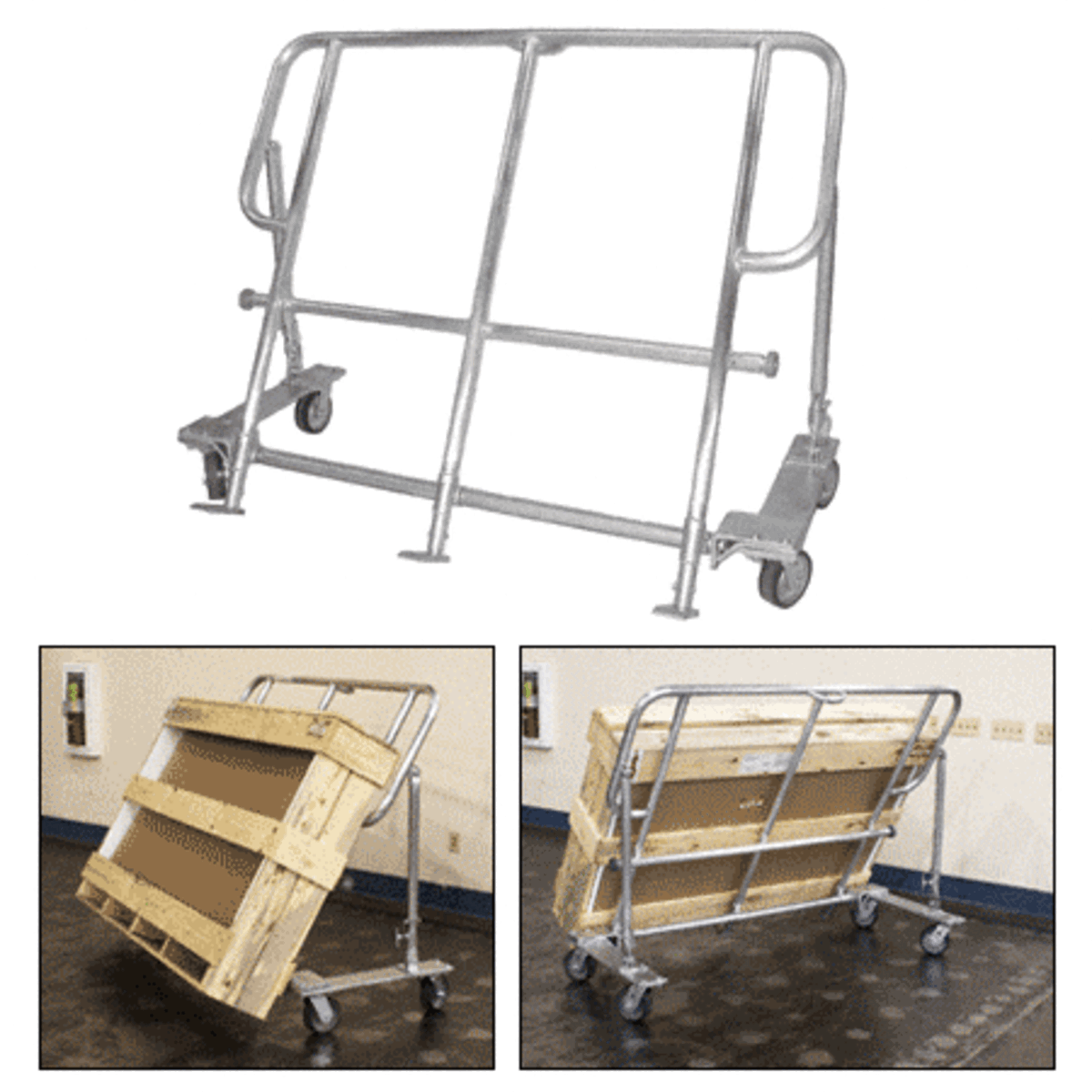

CRL AB Tilting Crate Handler

Your Price: $13,773.99

Retail Price:$16,489.98

Your Savings:$2,715.99(16%)

Efficiently lift and transport heavy crates with the CRL AB Tilting Crate Handler, featuring a 4,000 lbs capacity and adjustable tilt.

Part Number : CRL_AB

Availability: 1 In Stock

Quantity

Description

CRL AB Tilting Crate Handler

C.R. Laurence AB Tilting Crate Handler is engineered for efficient and safe handling of heavy loads in various work environments. With a robust capacity of 4,000 lbs. (1814 kg), this handler is designed to effortlessly move full crates up to 16-1/2" thick. Constructed from 1-1/4" IPS aluminum alloy pipe and featuring a durable steel under-frame, it combines strength with lightweight maneuverability. The innovative design allows the handler to tilt forward for lifting crates like a traditional dolly, then lean back onto its rollers for seamless transport around the shop. Equipped with extending support arms that reach 24" (610 mm) on either end, the AB Tilting Crate Handler accommodates loads up to 120" (3.05 m) wide. Adjustable back support braces enable operators to change the tilt angle between 45 and 75 degrees, enhancing stability for crates with a low center of gravity. Measuring 40" (1.02 m) wide, 72" (1.83 m) long (with extensions retracted), and 52" (1.32 m) high, this handler is perfect for transporting loads up to 60" (1.52 m) high. Please confirm crate sizes with product management before ordering to ensure compatibility. Note that this product ships disassembled via common carrier only.

Tilting Crate Handler

4,000 Lbs. (1814 kg) Capacity
Designed to Move Full Crates Up To 16-1/2" Thick
1-1/4" IPS Aluminum Alloy Pipe with Steel Under-frame Construction
4" Wide Toe-Plates

The CRL Tubular Aluminum Tilting Crate Handler can lean forward to lift crates like a common dolly then lean back on to its rollers for moving the crates throughout the shop. This Handler has extending support arms which extend 24" (610 mm) on either end, increasing the load capacity to 120" (3.05 m) wide. The back support braces are adjustable for changing the tilt angle of the handler to increase the load capacity. Designed to carry loads up to 60" (1.52 m) High and 4,000 lbs. (1814 kg) in Weight. This Handler measures 40" (1.02 m) wide, 72" (1.83 m) long (with extensions retracted), and 52" (1.32 m) high. Approximate shipping weight is 180 lbs. (82 kg). Ships dissembled F.O.B. the nearest CRL service center.

Product Warning:

CRATE SIZES MUST BE CONFIRMED BETWEEN CUSTOMER AND PRODUCT MANAGEMENT BEFORE ORDERING. EVEN THOUGH THIS CRATE HANDLER HAS A 4000LB CAPACITY, SOME CRATES CANNOT BE MOVED ON THIS DOLLY DUE TO THEIR OVERALL SIZE. UNLIKE THE MECHANICS OF A HAND TRUCK, THE LOAD CAN BE TILTED BACK TO ANY PRESET ANGLE BETWEEN 75 AND 45 DEGREES. THIS ALLOWS THE AB TO BE USED FOR CRATES UP TO 16-1/2 THICK.
IT ALSO SOLVES THE PROBLEM OF A SHORT CRATE WITH A LOW CENTER OF GRAVITY. Follow manufacturers load limits and crate handling procedures. Failure to do so may result in operator injury.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Frame Material: Aluminum

Height: 52 in. (1321 mm)

Load Capacity: 4000 lbs.(1814 kg)

Shipping Limitations: No UPS - Common Carrier Only

Width: 40 in. (1016 mm)
