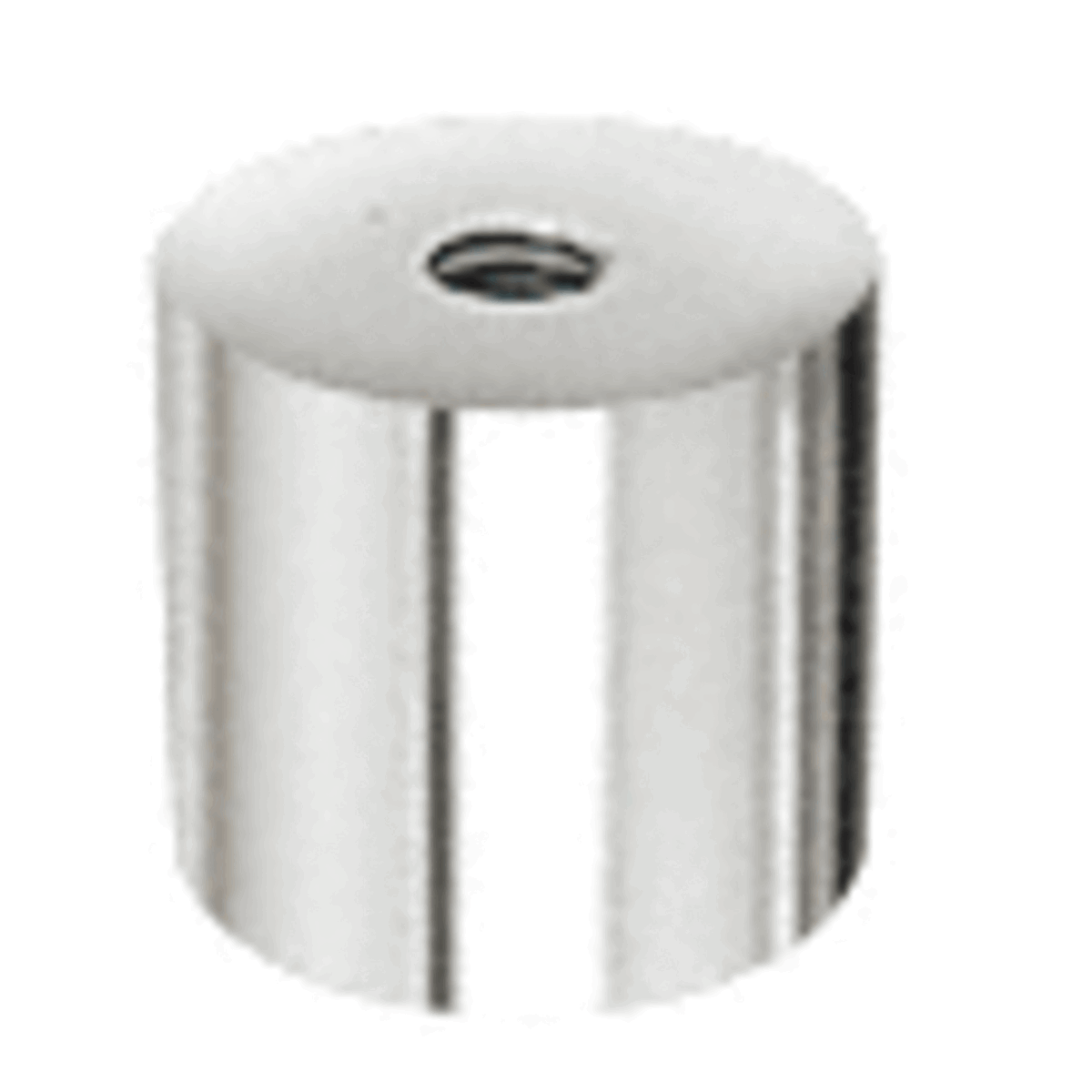

CRL ACSB1121PS 316 Polished Stainless Clad Aluminum Standoff Base, 1.5" x 1"C.R. Laurence ACSB1121PS 316 Polished Stainless Clad Aluminum Standoff Base offers an ideal solution for a wide array of design applications, including signage, furniture, and retail displays. Measuring 1-1/2" in diameter and 1" in length, this standoff base is constructed from durable aluminum and clad with 316 stainless steel, ensuring both strength and an appealing aesthetic for interior use. Designed for versatility, the ACSB1121PS features fully threaded construction, suitable for mounting with 3/8"-16 threaded Allen screws, threaded rods, or hanger bolts. Available in five standard lengths from 1" to 6", it supports a variety of project requirements, while the polished finish enhances its modern design. The standoff system provides flexibility, allowing integration with CRL Edge Grips and Swivel Fittings, further expanding its application potential. For an optimized installation experience, a complete range of mounting accessories is available, which can be ordered in any quantity to suit your project's needs, minimizing waste. It is important to note that weight limitations for this standoff system depend on the anchoring condition of the wall or substrate. Regular maintenance is recommended to preserve the stainless steel finish and ensure long-lasting performance.
316 Polished Stainless Clad Aluminum Standoff Base 1-1/2" Diameter by 1" Long
- Design Options Including Signage, Furniture and Retail Display
- Constructed of Aluminum and Cladded in 316 Stainless Steel
- For Interior Use
- Available in Several Standard Lengths
- Threaded Completely Through
CRL's 1-1/2" (38 mm) Diameter Clad Aluminum Standoff Bases provide the user with unlimited design potential for retail store, display, restaurant or commercial applications. They have 3/8"-16 threads - 1" and 1-1/2" (25.4 and 38 mm) lengths are drilled and tapped through while the 2" (51 mm) to 6" (152.4 mm) lengths have 1" deep threads at both ends. They can be mounted using 3/8"-16 threaded Allen Screws, Threaded Rods, or Hanger Bolts. Five standard lengths from 1" to 6" (25.4 to 152.4 mm) are stocked in brushed or polished 316 stainless. Cap Assemblies must be ordered separately.
Available in many distinctive and popular finishes, these Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. They come in six different lengths, from 1/2" to 4". Matching Cap Assemblies must be ordered separately.
The Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
Product Warning:
Due to the diversified variety of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/2
Finish/ Color:: Polished Stainless Steel
Length: 1
Material: Aluminum and Cladded in 316 Stainless Steel
Shipping Limitations: None
Thread Size: 3/8-16
