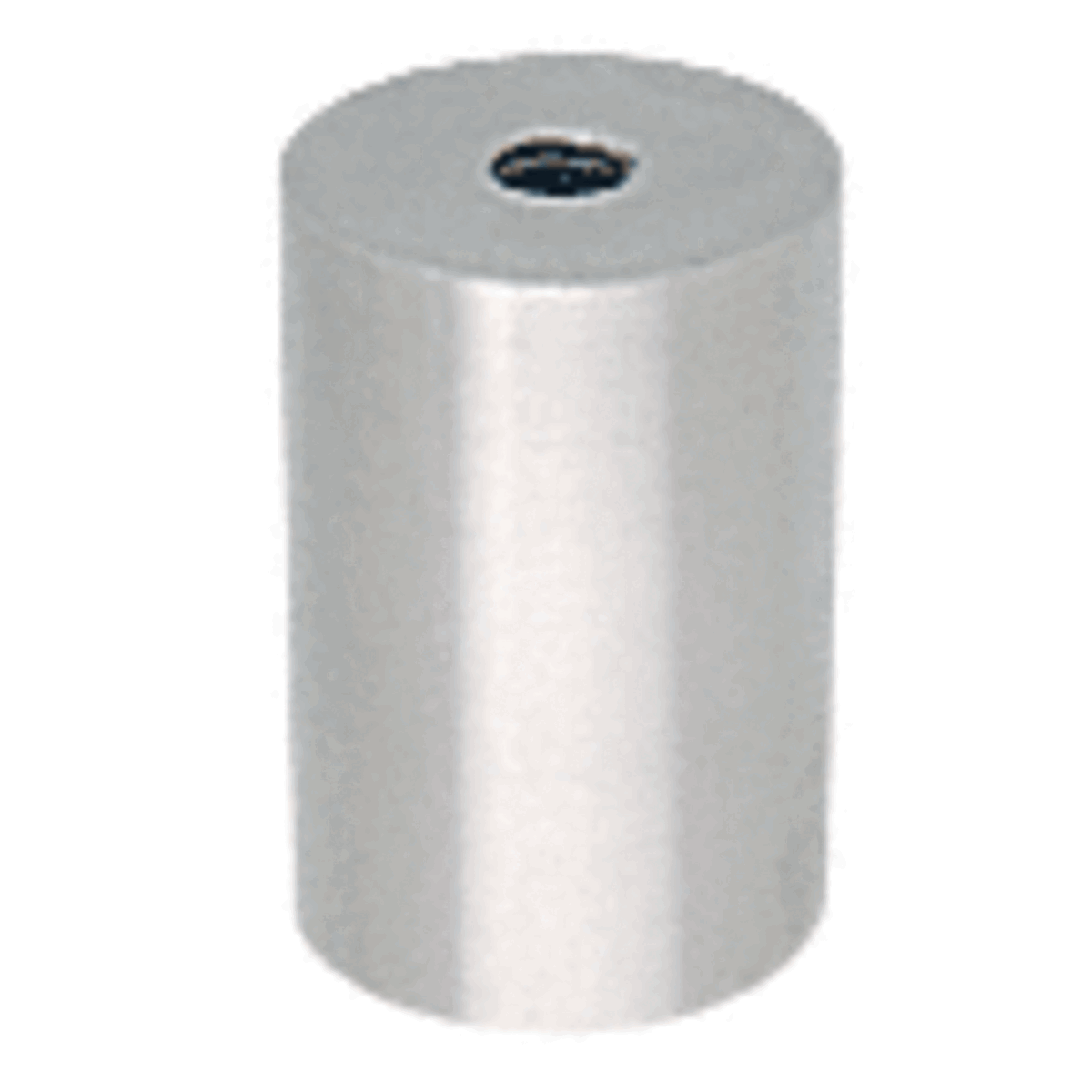

CRL ACSB1122BS 316 Brushed Stainless Clad Aluminum Standoff Base, 1.5" Dia x 2" LongC.R. Laurence ACSB1122BS 316 Brushed Stainless Clad Aluminum Standoff Base offers exceptional versatility for a variety of applications, including signage, furniture, and retail displays. With a diameter of 1-1/2 inches and a length of 2 inches, this standoff base is constructed from durable aluminum and clad in high-quality 316 stainless steel, ensuring both aesthetic appeal and longevity. Designed for interior use, the standoff features 3/8"-16 threads that run completely through the base, making it compatible with a range of mounting options. Available in several standard lengths from 1 to 6 inches, these standoffs can be installed using 3/8"-16 threaded Allen screws, threaded rods, or hanger bolts, allowing for seamless integration into your design. The brushed stainless finish lends a modern touch, while the standoff system is designed to accommodate CRL Edge Grips and Swivel Fittings, providing maximum versatility for your project. Cap assemblies are sold separately, enabling customization for your specific needs. Keep in mind that the weight limitations for the standoff system depend on the wall or substrate anchoring. For installation techniques or design assistance, the CRL Technical Sales Department is available to help. Elevate your architectural designs with the C.R. Laurence ACSB1122BS standoff base.
316 Brushed Stainless Clad Aluminum Standoff Base 1-1/2" Diameter by 2" Long
- Design Options Including Signage, Furniture and Retail Display
- Constructed of Aluminum and Cladded in 316 Stainless
- For Interior Use
- Available in Several Standard Lengths
- Threaded Completely Through
CRL's 1-1/2" (38 mm) Diameter Clad Aluminum Standoff Bases provide the user with unlimited design potential for retail store, display, restaurant or commercial applications. They have 3/8"-16 threads - 1" and 1-1/2" (25.4 and 38 mm) lengths are drilled and tapped through while the 2" (51 mm) to 6" (152.4 mm) lengths have 1" deep threads at both ends. They can be mounted using 3/8"-16 threaded Allen Screws, Threaded Rods, or Hanger Bolts. Five standard lengths from 1" to 6" (25.4 to 152.4 mm) are stocked in brushed or polished 316 stainless. Cap Assemblies must be ordered separately.
Available in many distinctive and popular finishes, these Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and
Swivel Fittings for maximum versatility. They come in six different lengths, from 1/2" to 4".
Matching Cap Assemblies must be ordered separately.
The Standoff System incorporates a complete range of
Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/2
Finish/ Color:: Brushed Stainless Steel
Length: 2
Material: Aluminum and Cladded in 316 Stainless Steel
Shipping Limitations: None
Thread Size: 3/8-16
