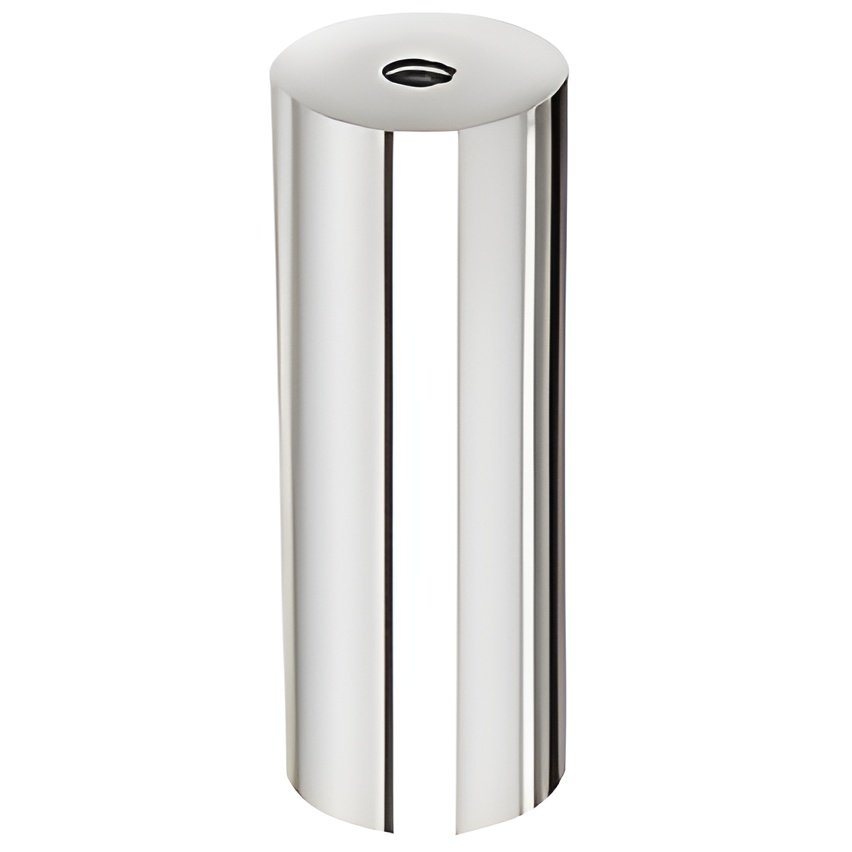

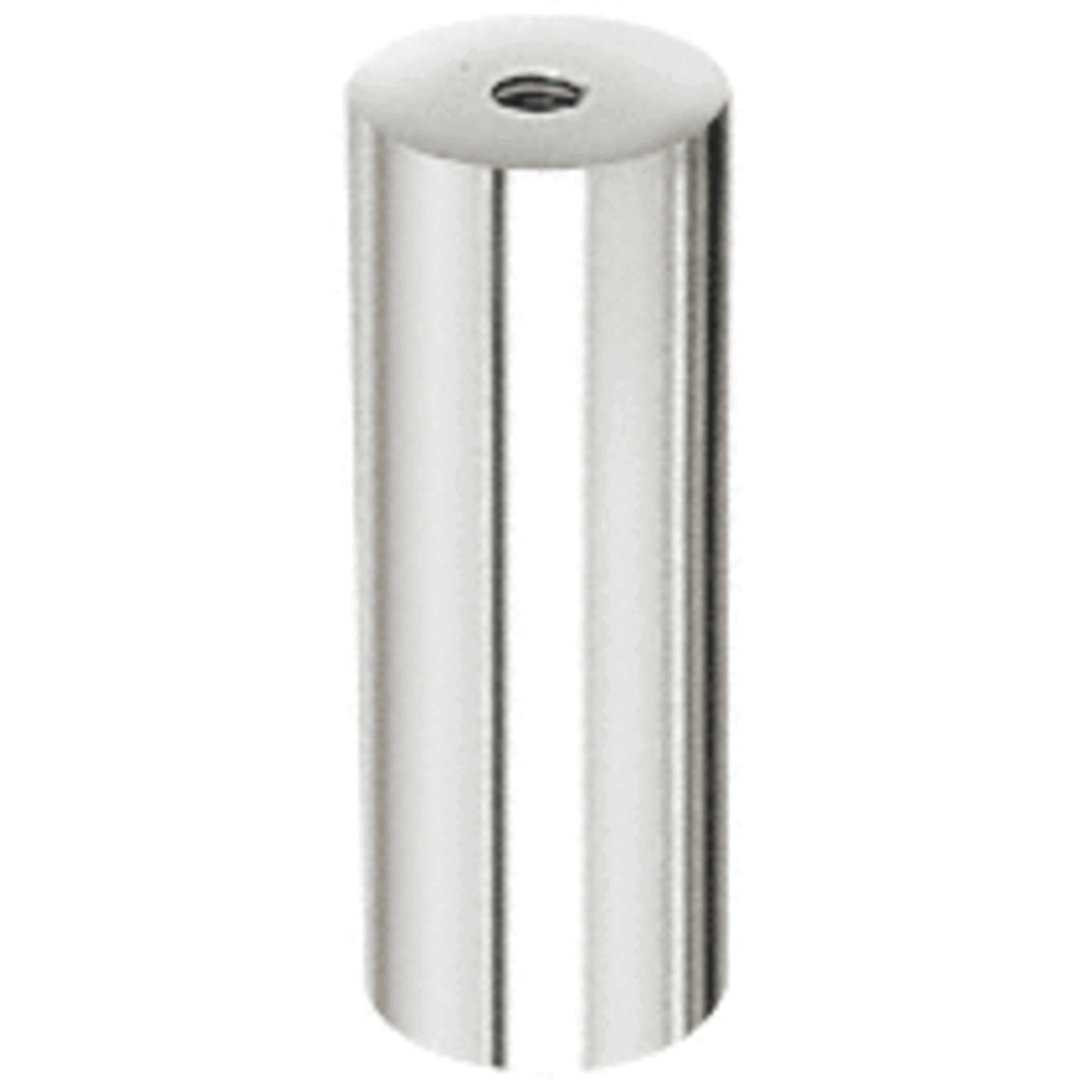

CRL ACSB1124PS 316 Polished Stainless Clad Aluminum Standoff, 1.5" x 4"C.R. Laurence ACSB1124PS 316 Polished Stainless Clad Aluminum Standoff Base offers unparalleled versatility for your design needs. Crafted from high-quality aluminum, this standoff base is clad in robust 316 stainless steel, ensuring both durability and an eye-catching aesthetic. With a diameter of 1-1/2" and a length of 4", it is ideal for various applications including signage, furniture, and retail displays. The standoff features 3/8"-16 threads, with drilled and tapped options available in lengths from 1" to 1-1/2". For lengths between 2" to 6", the threads extend 1" deep at both ends, allowing for secure mounting. Installation is simplified with compatible accessories, including 3/8"-16 threaded Allen screws, threaded rods, or hanger bolts. Available in a polished finish, the standoff not only enhances the visual appeal of any space but also integrates seamlessly with CRL Edge Grips and Swivel Fittings for maximum adaptability. Whether you're working on commercial projects or upscale residential designs, the ACSB1124PS provides an innovative solution that meets your architectural needs. Remember to order matching cap assemblies separately to complete your installation.
316 Polished Stainless Clad Aluminum Standoff Base 1-1/2" Diameter by 4" Long
- Design Options Including Signage, Furniture and Retail Display
- Constructed of Aluminum and Cladded in 316 Stainless
- For Interior Use
- Available in Several Standard Lengths
- Threaded Completely Through
CRL's 1-1/2" (38 mm) Diameter Clad Aluminum Standoff Bases provide the user with unlimited design potential for retail store, display, restaurant or commercial applications. They have 3/8"-16 threads - 1" and 1-1/2" (25.4 and 38 mm) lengths are drilled and tapped through while the 2" (51 mm) to 6" (152.4 mm) lengths have 1" deep threads at both ends. They can be mounted using 3/8"-16 threaded Allen Screws, Threaded Rods, or Hanger Bolts. Five standard lengths from 1" to 6" (25.4 to 152.4 mm) are stocked in brushed or polished 316 stainless. Cap Assemblies must be ordered separately.
Available in many distinctive and popular finishes, these Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and
Swivel Fittings for maximum versatility. They come in six different lengths, from 1/2" to 4".
Matching Cap Assemblies must be ordered separately.
The Standoff System incorporates a complete range of
Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/2
Finish/ Color:: Polished Stainless Steel
Length: 4
Material: Aluminum and Cladded in 316 Stainless Steel
Shipping Limitations: None
Thread Size: 3/8-16
