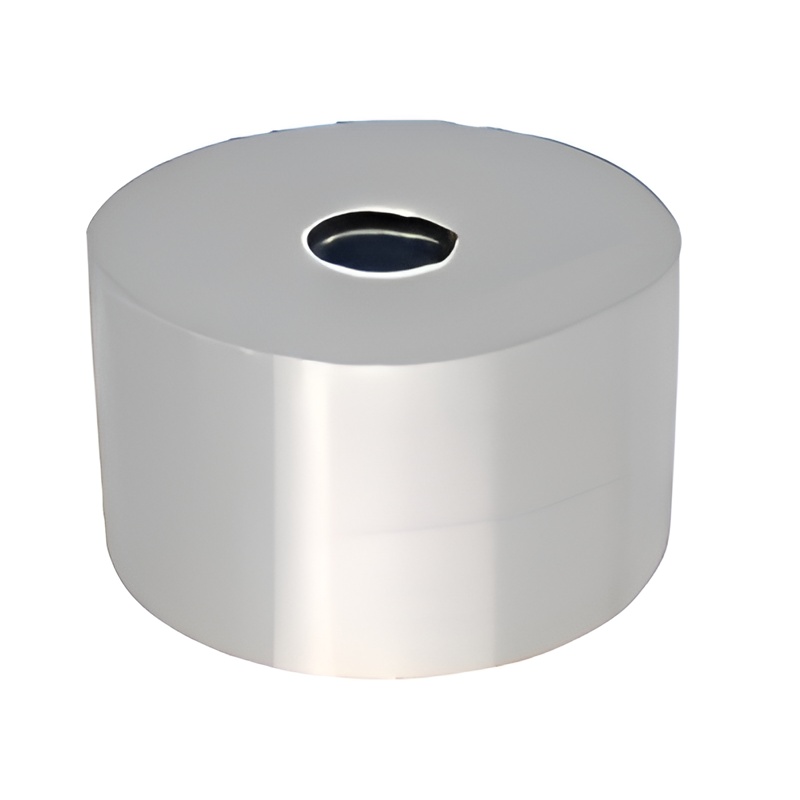

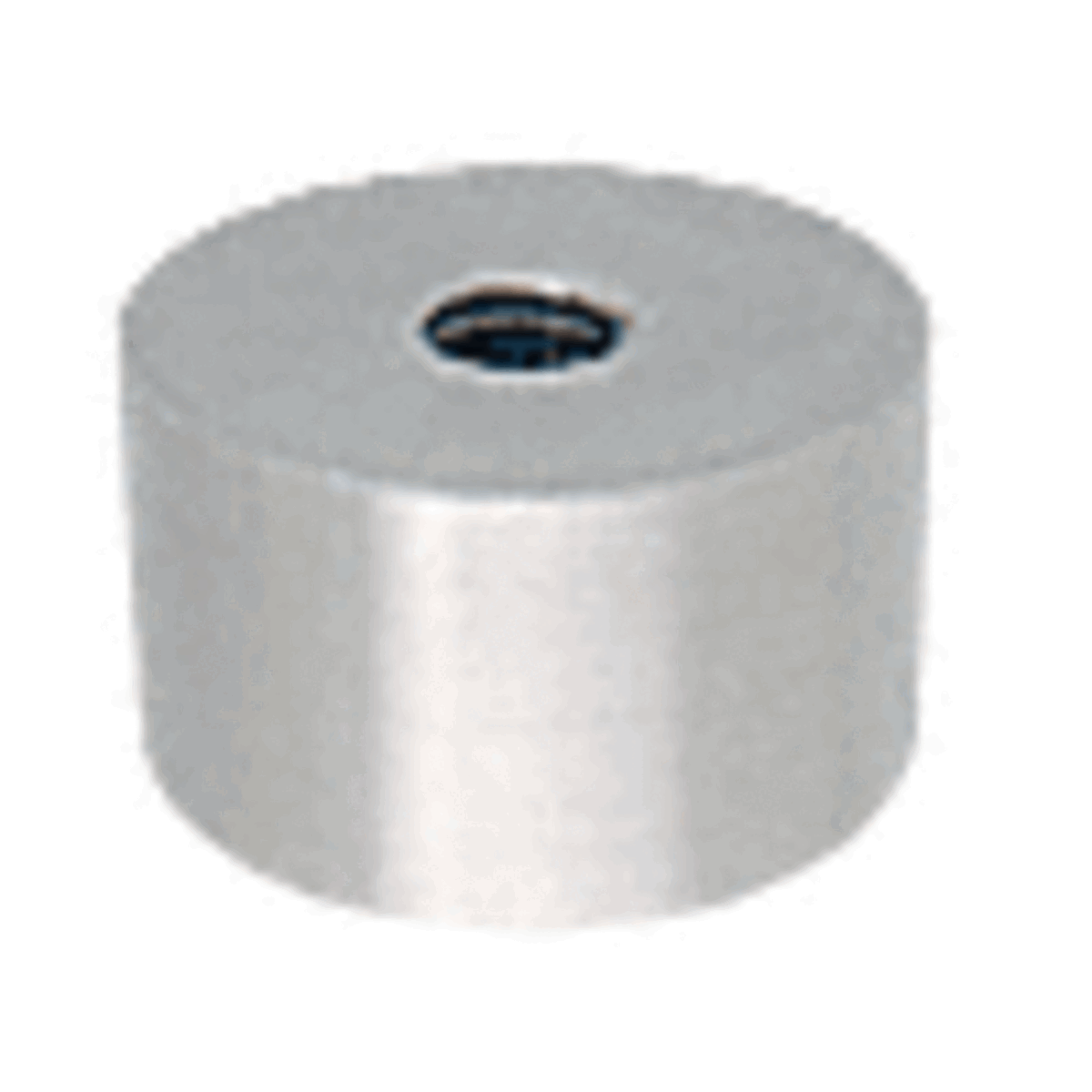

CRL ACSB21BS 316 Brushed Stainless Clad Aluminum 2" Standoff Base, 1" LengthC.R. Laurence ACSB21BS 316 Brushed Stainless Clad Aluminum 2" Diameter by 1" Long Standoff Base offers a robust solution for attaching heavy materials like glass, granite, and marble to cabinetry. Engineered with a specialized design, this standoff base is constructed from durable aluminum and clad in 316 stainless steel, ensuring both strength and aesthetic appeal. With a 2" diameter and a length of 1", it effectively supports a variety of applications, including signage, furniture, and retail displays. The standoff features 3/8"-16 threads, with drilled and tapped options available in 1" and 1-1/2" lengths, while lengths from 2" to 6" are equipped with 1" deep threads at both ends. Installation is seamless with the use of 3/8"-16 threaded Allen screws, threaded rods, or hanger bolts. C.R. Laurence provides five standard lengths, available in brushed or polished finishes, allowing you to select the perfect option for your project. For complete installations, the Standoff System includes a comprehensive range of mounting accessories, ensuring all components are available without any surplus. Note that proper installation depends on wall anchoring and material strength, emphasizing the importance of consulting with the CRL Technical Sales Department for design assistance.
316 Brushed Stainless Clad Aluminum 2" Diameter by 1" Long Standoff Base
- Design Options Including Signage, Furniture and Retail Display
- Constructed of Aluminum and Cladded in 316 Stainless
- For Interior Use
- Available in Several Standard Lengths
- Threaded Completely Through
CRL's 2" (51 mm) Diameter Clad Aluminum Standoff Bases are perfect for attaching heavy glass, granite, and marble to the top of cabinetry. They have 3/8"-16 threads — 1" and 1-1/2" (25 and 38 mm) lengths are drilled and tapped through while the 2" (51 mm) to 6" (152.4 mm) lengths have 1" (25.4 mm) deep threads at both ends. They can be mounted using 3/8"-16 threaded Allen Screws, Threaded Rods, or Hanger Bolts. Five standard lengths from 1" to 6" (25.4 to 152.4 mm) are stocked in brushed or polished 316 stainless. Cap Assemblies must be ordered separately.
The Standoff System incorporates a complete range of
Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 2
Finish/ Color:: Brushed Stainless Steel
Length: 1
Material: Aluminum and Cladded in 316 Stainless
Shipping Limitations: None
Thread Size: 3/8-16
