CRL ACSB22BS 316 Brushed Stainless Clad Aluminum 2" Standoff Base, 2" LongC.R. Laurence ACSB22BS 316 Brushed Stainless Clad Aluminum 2" Diameter by 2" Long Standoff Base offers a robust solution for securely attaching heavy materials such as glass, granite, and marble to cabinetry. This standoff base features a 2" diameter and is constructed from high-quality aluminum, expertly clad in durable 316 stainless steel, ensuring not only strength but also a polished aesthetic. Designed for interior applications, the ACSB22BS is threaded completely through with 3/8"-16 threads, making it compatible with various mounting options, including Allen screws, threaded rods, or hanger bolts. It is available in several standard lengths, ranging from 1" to 6", allowing for versatility in installation. To facilitate your project needs, CRL provides a complete range of mounting accessories, ensuring you only order what you require without excess components. While the standoff system is resistant to corrosion, routine maintenance is recommended to preserve its factory finish. Please note that weight limitations depend on the anchoring and material strengths of the wall or substrate used. For installation techniques or design assistance, reach out to the CRL Technical Sales Department. Elevate your display or signage projects with the reliability and elegance of the ACSB22BS standoff base.

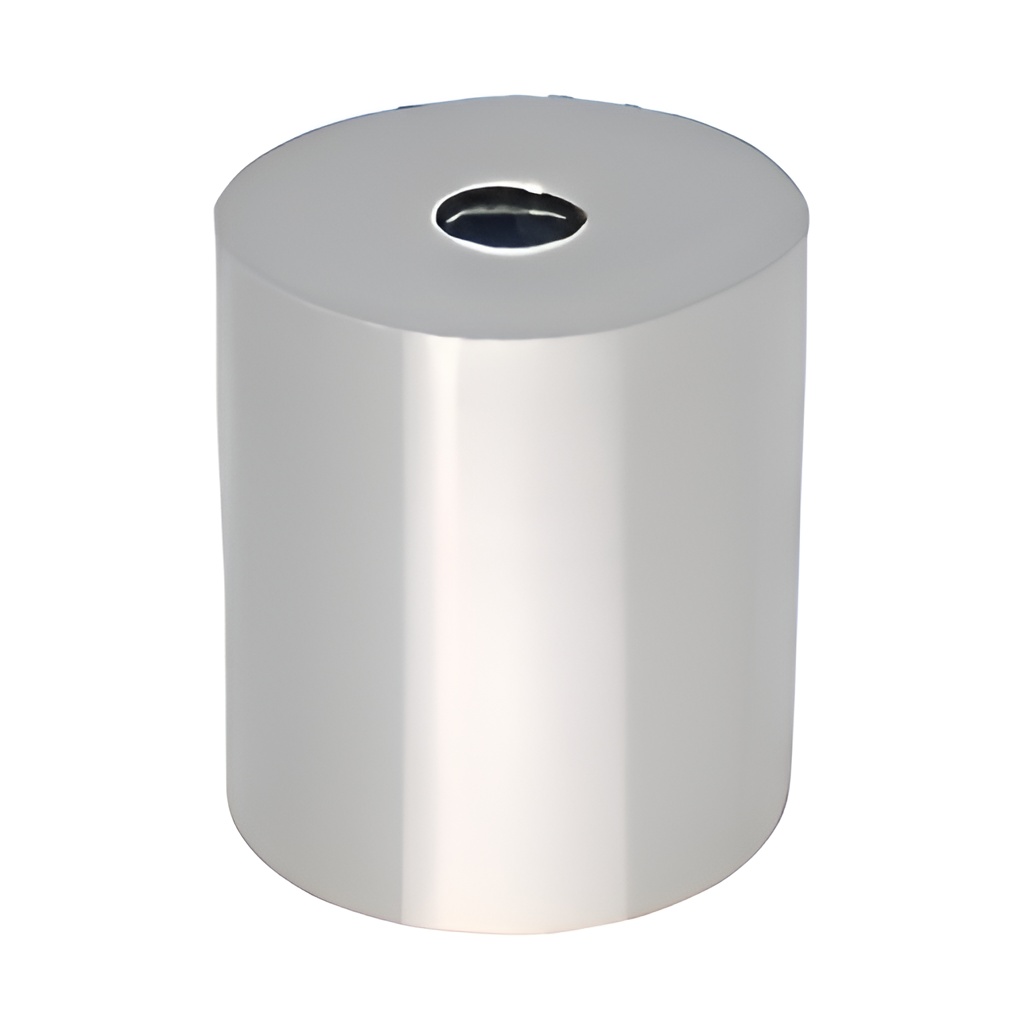

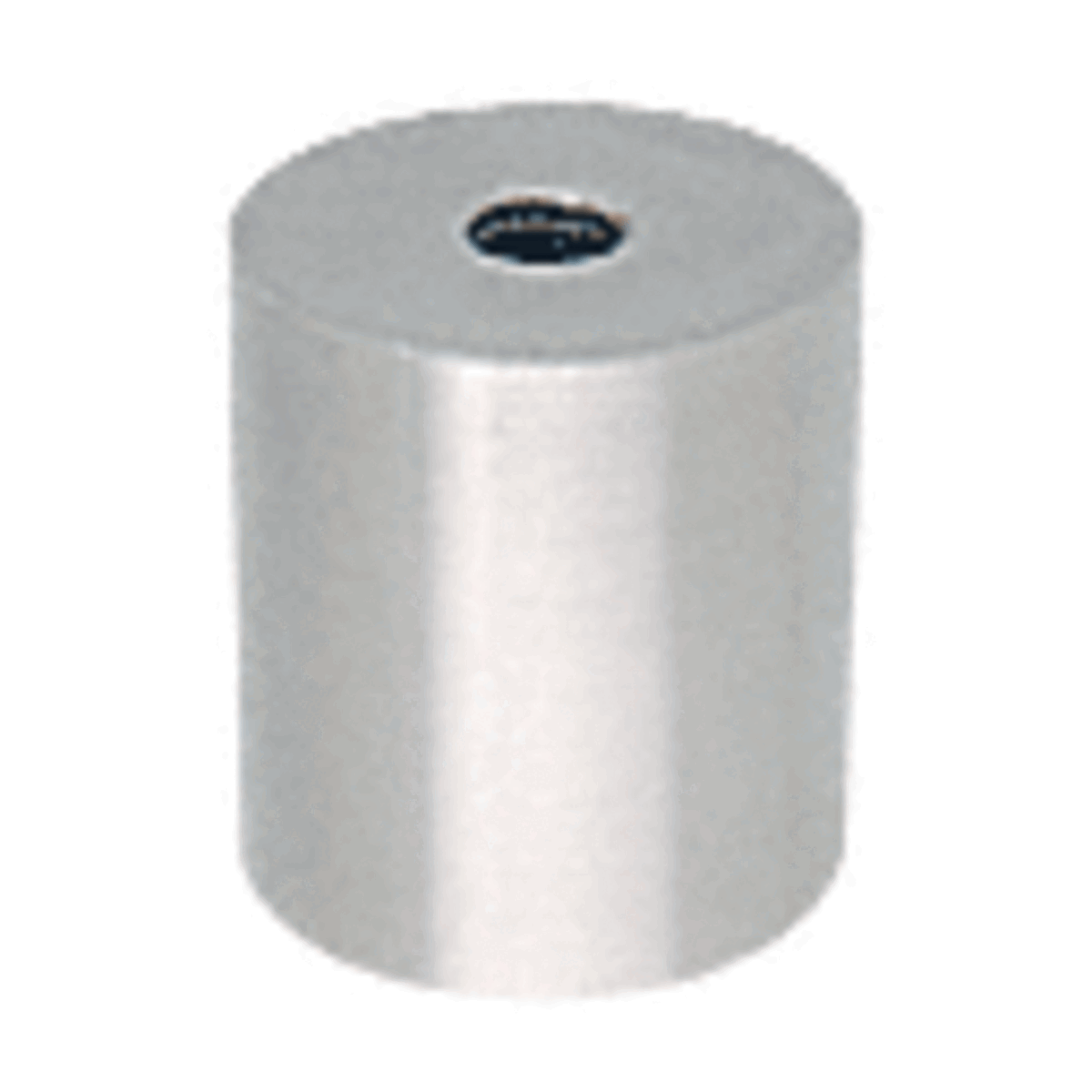

316 Brushed Stainless Clad Aluminum 2" Diameter by 2" Long Standoff Base
- Design Options Including Signage, Furniture and Retail Display
- Constructed of Aluminum and Cladded in 316 Stainless
- For Interior Use
- Available in Several Standard Lengths
- Threaded Completely Through
CRL's 2" (51 mm) Diameter Clad Aluminum Standoff Bases are perfect for attaching heavy glass, granite, and marble to the top of cabinetry. They have 3/8"-16 threads — 1" and 1-1/2" (25 and 38 mm) lengths are drilled and tapped through while the 2" (51 mm) to 6" (152.4 mm) lengths have 1" (25 mm) deep threads at both ends. They can be mounted using 3/8"-16 threaded Allen Screws, Threaded Rods, or Hanger Bolts. Five standard lengths from 1" to 6" (25.4 to 152.4 mm) are stocked in brushed or polished 316 stainless. Cap Assemblies must be ordered separately.
The Standoff System incorporates a complete range of
Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 2
Finish/ Color:: Brushed Stainless Steel
Length: 2
Material: Aluminum and Cladded in 316 Stainless
Shipping Limitations: None
Size: Round
Thread Size: 3/8-16
