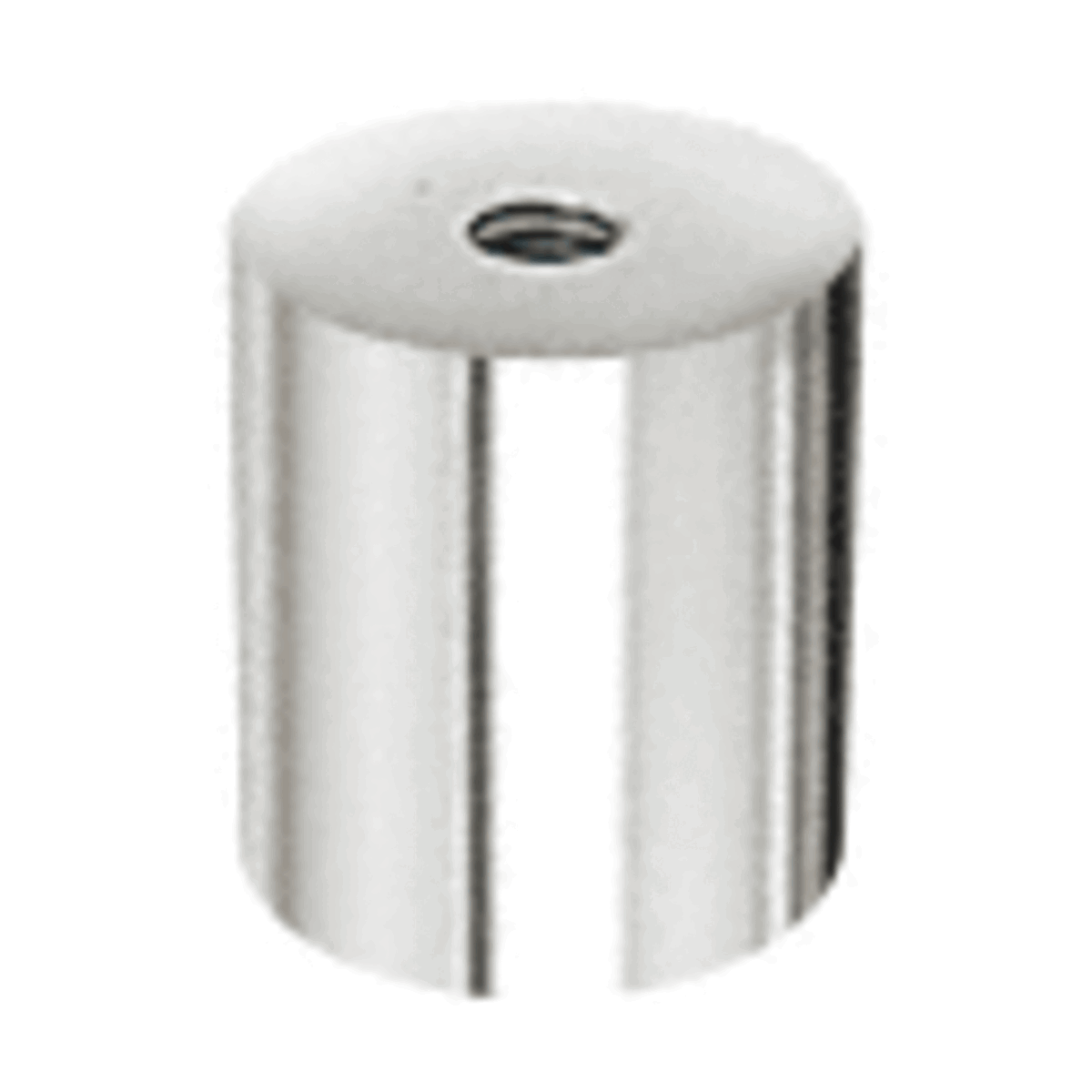

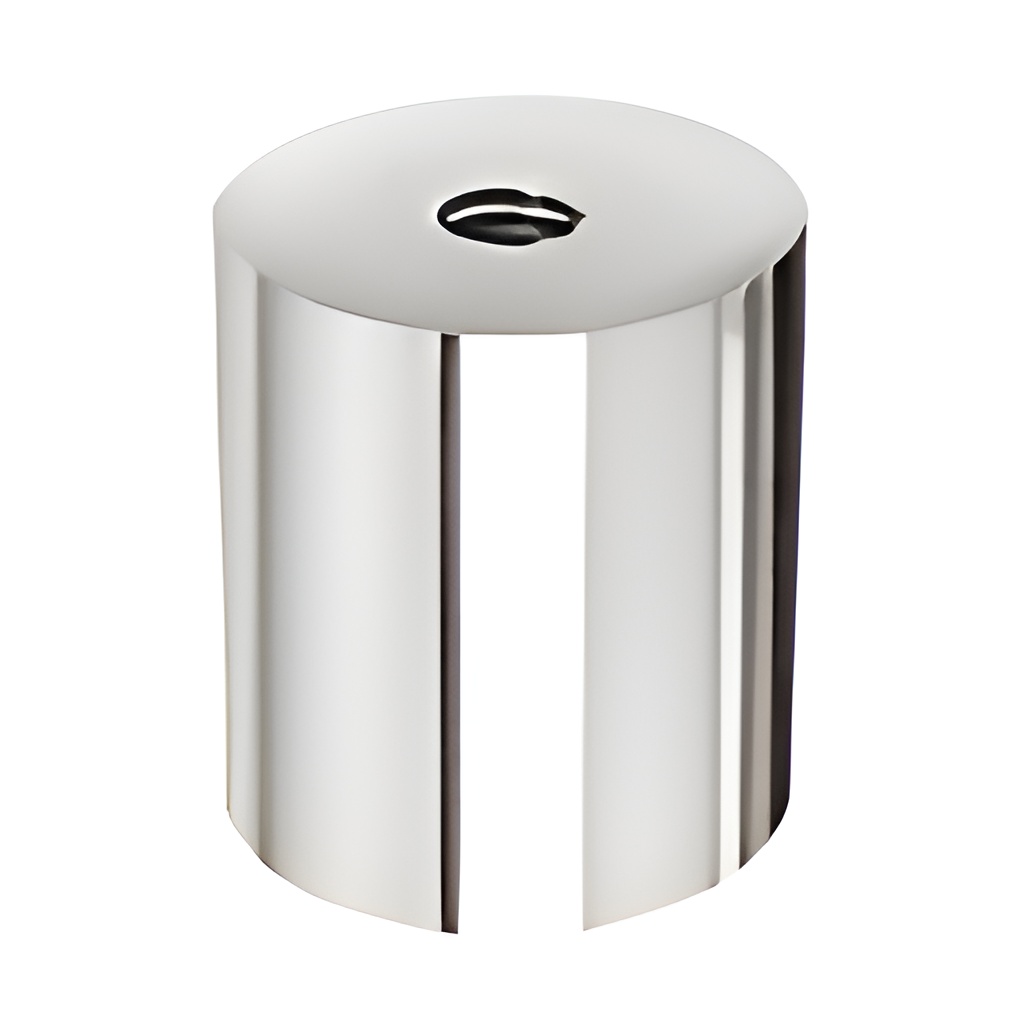

CRL ACSB22PS 316 Polished Stainless Clad Aluminum 2" Standoff Base, 2" LongC.R. Laurence ACSB22PS 316 Polished Stainless Clad Aluminum 2" Diameter by 2" Long Standoff Base is an ideal solution for attaching heavy materials like glass, granite, and marble to cabinetry. Crafted from durable aluminum and clad in 316 stainless steel, this standoff base not only offers robust support but also enhances the aesthetic appeal of your project. Designed for interior use, it features a 2" diameter and is available in several standard lengths, allowing for versatility in various applications including signage, furniture, and retail displays. The standoff base boasts 3/8"-16 threads, with lengths from 1" to 6" available-1" and 1-1/2" lengths are drilled and tapped through, while the longer lengths have 1" deep threads at both ends. Installation is straightforward, utilizing 3/8"-16 threaded Allen screws, threaded rods, or hanger bolts. For complete customization, CRL offers a comprehensive range of mounting accessories, ensuring you can order only what you need without excess. While the stainless steel construction is resistant to corrosion, regular maintenance is recommended to preserve its finish. Please note that weight limitations for standoff systems depend on the anchoring and material strengths of the wall or substrate. For installation assistance, contact the CRL Technical Sales Department.
316 Polished Stainless Clad Aluminum 2" Diameter by 2" Long Standoff Base
- Design Options Including Signage, Furniture and Retail Display
- Constructed of Aluminum and Cladded in 316 Stainless
- For Interior Use
- Available in Several Standard Lengths
- Threaded Completely Through
CRL's 2" (51 mm) Diameter Clad Aluminum Standoff Bases are perfect for attaching heavy glass, granite, and marble to the top of cabinetry. They have 3/8"-16 threads — 1" and 1-1/2" (25 and 38 mm) lengths are drilled and tapped through while the 2" (51 mm) to 6" (152.4 mm) lengths have 1" (25 mm) deep threads at both ends. They can be mounted using 3/8"-16 threaded Allen Screws, Threaded Rods, or Hanger Bolts. Five standard lengths from 1" to 6" (25.4 to 152.4 mm) are stocked in brushed or polished 316 stainless. Cap Assemblies must be ordered separately.
The Standoff System incorporates a complete range of
Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 2
Finish/ Color:: Polished Stainless Steel
Length: 2
Material: Aluminum and Cladded in 316 Stainless
Shipping Limitations: None
Thread Size: 3/8-16
