CRL AFWC1SPS Polished Stainless Beveled Surface Mount Frameless Windscreen Clamp
Images may not represent actual product and finish

CRL AFWC1SPS Polished Stainless Beveled Surface Mount Frameless Windscreen Clamp

Your Price: $377.71
Retail Price:$452.18
Your Savings:$74.47(16%)
The CRL AFWC1SPS is a polished stainless steel, easy-to-install surface mount clamp for frameless glass windscreens.
Part Number : CRL_AFWC1SPS
Availability: 403 In Stock
CRL AFWC1SPS Polished Stainless Beveled Surface Mount Frameless Windscreen Clamp

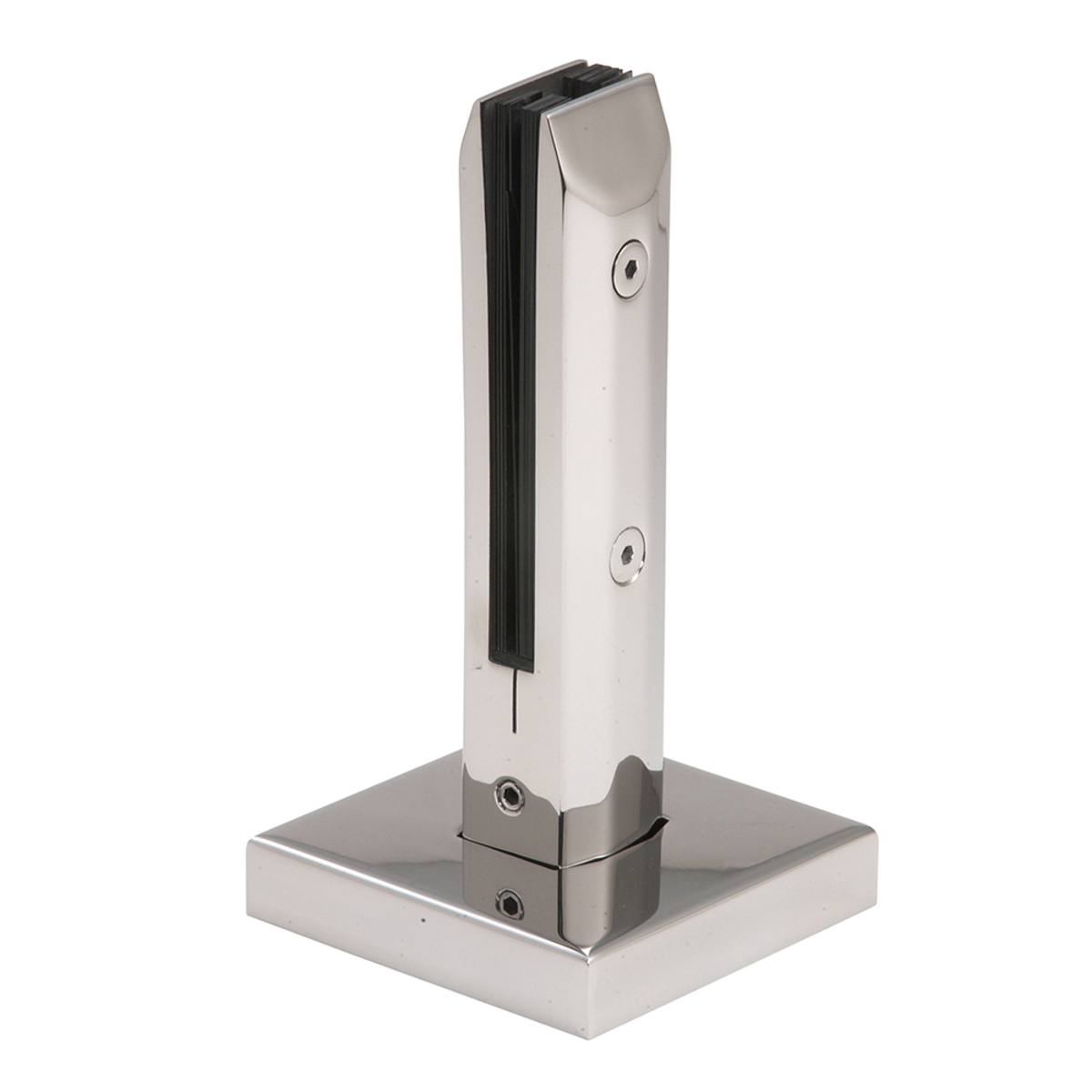

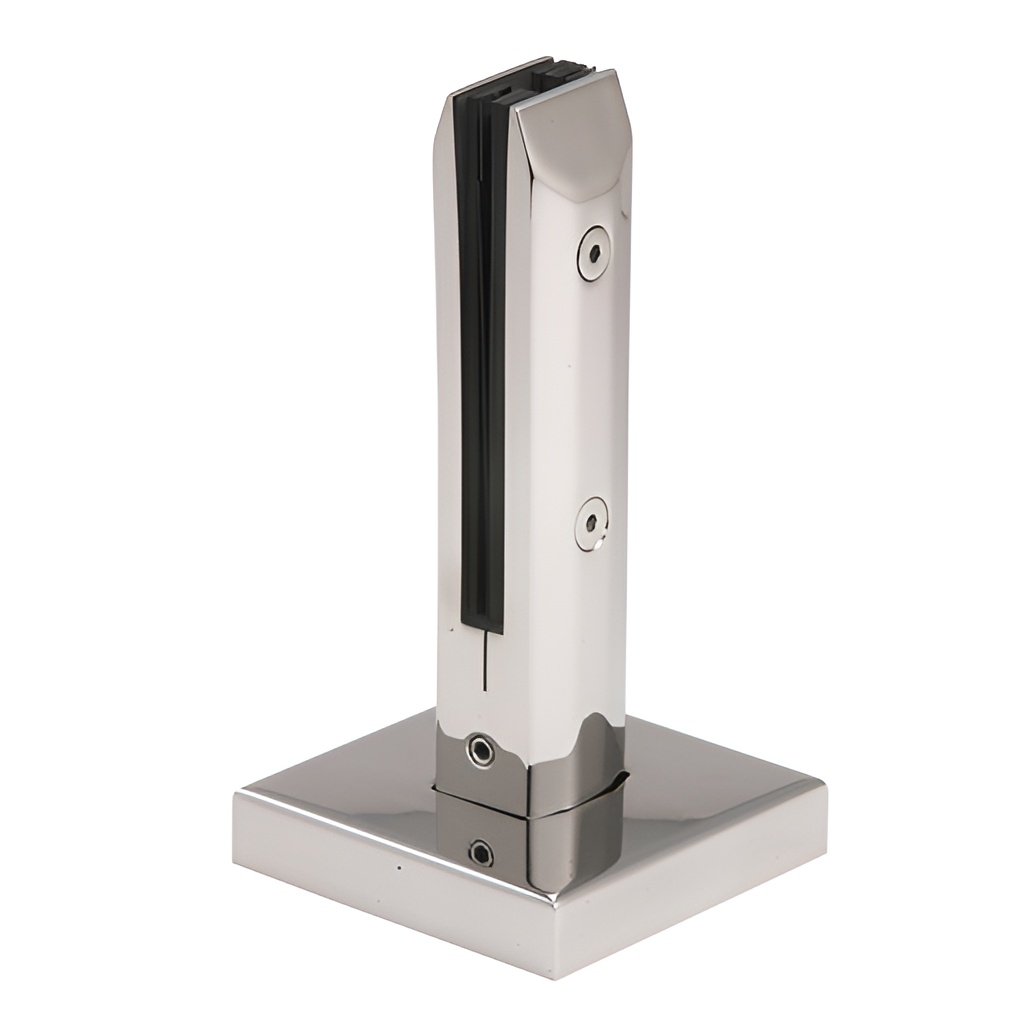

C.R. Laurence AFWC1SPS Polished Stainless Beveled One-Piece Surface Mount Frameless Windscreen Clamp is engineered for seamless integration into your outdoor spaces. Designed to accommodate 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass as well as 9/16" (13.52 mm) tempered laminated glass, this clamp offers versatility for various glass thicknesses, ensuring a secure and reliable installation. The easy-to-install surface mount design simplifies the process of creating elegant windscreen solutions around pool decks and patios. With a height of 9-11/16" (246 mm) and a base plate measuring 5-3/16" x 5-3/16" (132 mm), this clamp provides a robust foundation for your glass installation, blending functionality with aesthetic appeal. CRL's frameless windscreen clamps minimize distractions from vertical or horizontal frame members, allowing for unobstructed views and a clean, modern look. Available in polished stainless steel, the clamp not only enhances the visual appeal but also offers corrosion resistance, although routine maintenance is recommended to preserve its factory finish. For optimal performance, ensure that local building codes are adhered to when installing this product. With the AFWC1SPS, you can achieve a sophisticated and durable glass windscreen solution tailored to your design needs.

Polished Stainless Beveled One-Piece Surface Mount Frameless Windscreen Clamp

  • Designed for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass
  • Easy-to-Install Surface Mount Design

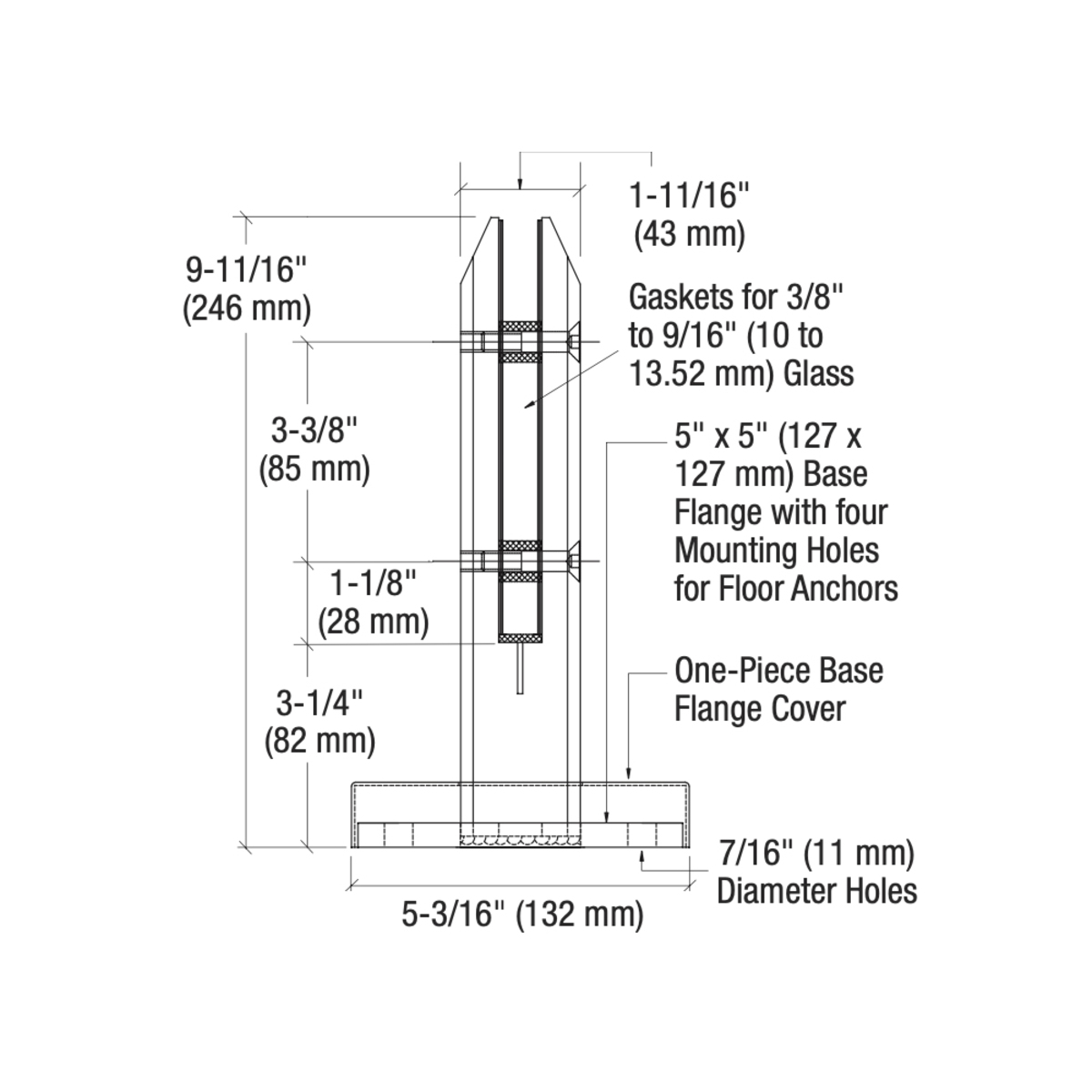

CRL One-Piece Surface Mount Clamps are designed for easy surface mount installation around pool decks and patios. Glass fabrication requires two 3/4" (19 mm) holes per Clamp. Height: 9-11/16" (246 mm).


CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.

NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Alloy: 316

Attachment: Surface

Base Plate Length: 5-3/16 in. (132 mm)

Base Plate Width: 5-3/16 in. (132 mm)

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)

Material: Stainless Steel

Mounting Hole Diameter: 7/16 in. (11 mm)

Shipping Limitations: None
