CRL AFWC3 Brushed Stainless Three-Piece Frameless Windscreen Clamp

Your Price: $237.13

Retail Price:$283.88

Your Savings:$46.75(16%)

The CRL AFWC3 Brushed Stainless Three-Piece Clamp securely mounts tempered glass for sleek, frameless windscreen applications.

Part Number : CRL_AFWC3

Availability: 558 In Stock

Quantity

Description

CRL AFWC3 Brushed Stainless Three-Piece Frameless Windscreen Clamp

C.R. Laurence AFWC3 Brushed Stainless Three-Piece Core Mount Frameless Windscreen Clamp is expertly designed to accommodate 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass. This innovative clamp features a 5/8" (16 mm) rod that easily inserts into a core-drilled hole, providing secure and reliable glass mounting. Ideal for creating stunning tempered glass windscreens or pool surrounds, the AFWC3 ensures minimal visual interruption from vertical or horizontal frame members. It requires two 3/4" (19 mm) holes per clamp during glass fabrication, with an overall height of 8-1/8" (206 mm). This product is specifically tailored for insertion in core-drilled holes in concrete decks, which can be filled with expanding cement for enhanced stability. CRL also offers options for surface-mount models and custom powder-painted finishes, allowing for versatility in design. It is essential to check local building codes to ensure compliance with regulations regarding frameless windscreen installations. Crafted from durable stainless steel, the AFWC3 provides resistance to corrosion; however, periodic maintenance is recommended to maintain its factory finish. Enhance your architectural projects with the reliability and elegance of C.R. Laurence’s windscreen clamps.

Brushed Stainless Three-Piece Core Mount Frameless Windscreen Clamp

Designed for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass
5/8" (16 mm) Rod Easily Inserts Into Core-Drilled Hole

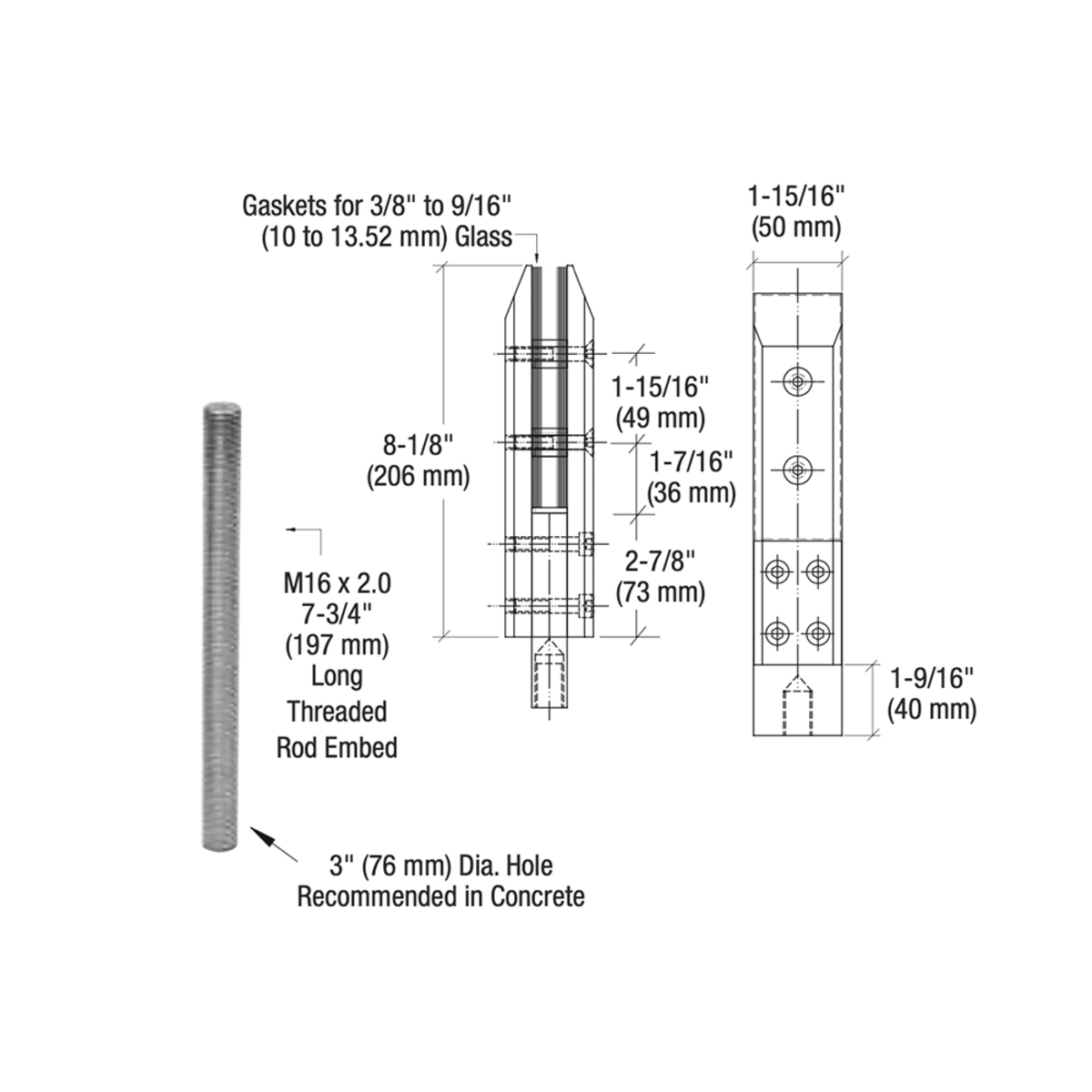

CRL Three-Piece Clamps are designed for insertion in core-drilled holes in a deck or on top of a wall. Glass fabrication requires two 3/4" (19 mm) holes per Clamp. Height: 8-1/8" (206 mm).

CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.

NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Attachment: Core

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)

Material: Stainless Steel

Shipping Limitations: None
