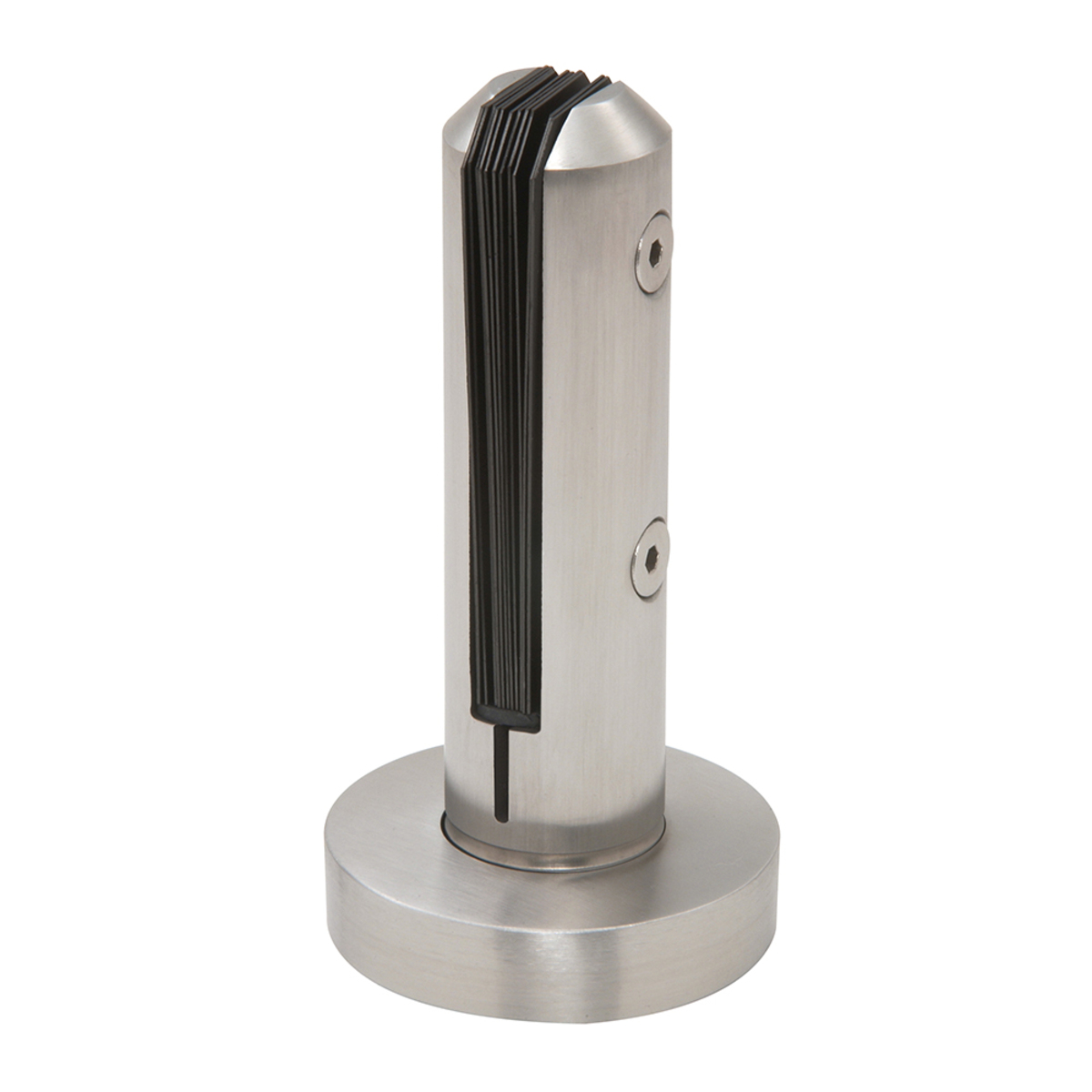

CRL AFWC4SBS Brushed Stainless Low Profile Round Surface Mount Frameless Clamp

Your Price: $239.97

Retail Price:$287.28

Your Savings:$47.31(16%)

The CRL AFWC4SBS is a brushed stainless steel, low-profile clamp for easy surface mounting of frameless glass windscreens.

Part Number : CRL_AFWC4SBS

Availability: 512 In Stock

Quantity

Description

CRL AFWC4SBS Brushed Stainless Low Profile Round Surface Mount Frameless Clamp

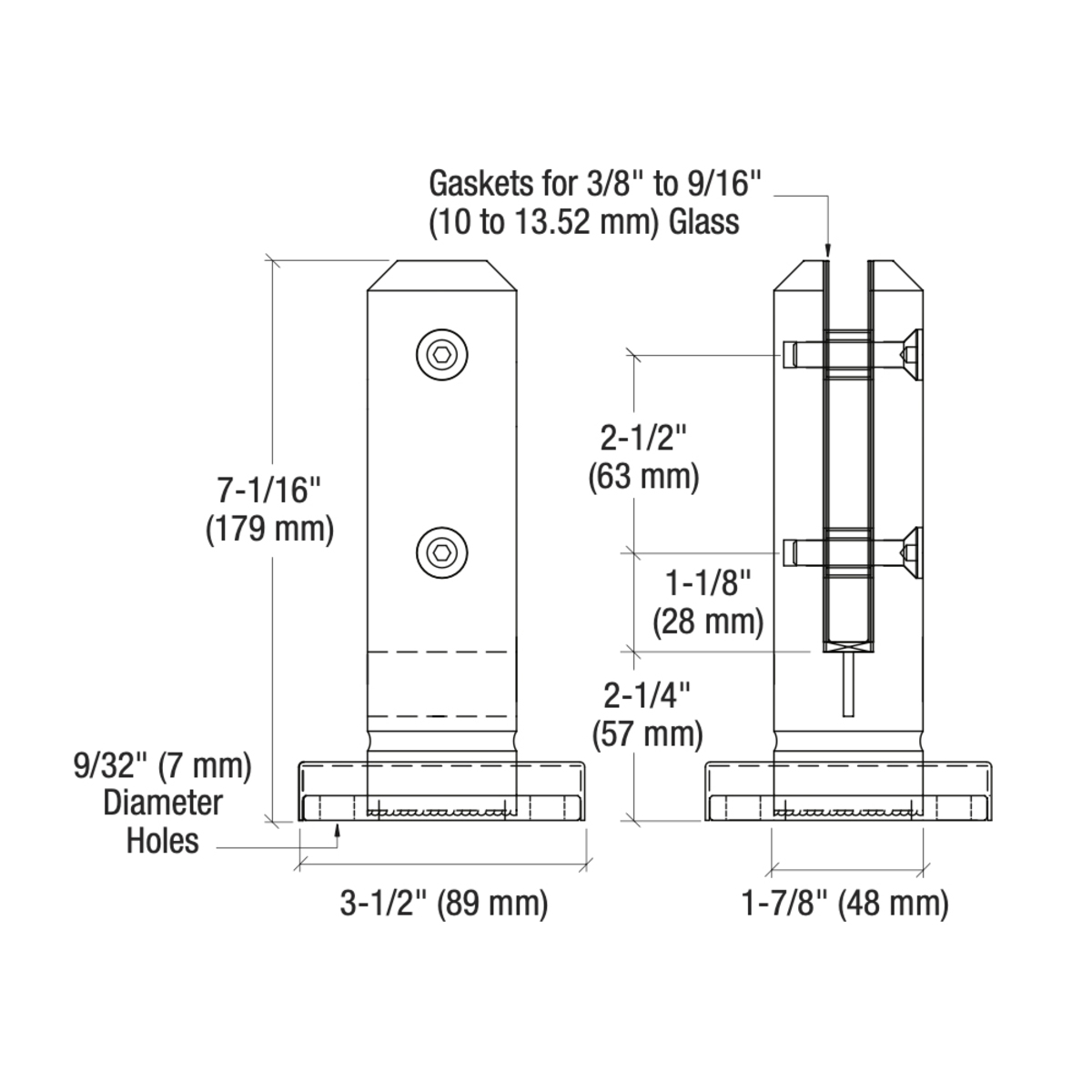

C.R. Laurence AFWC4SBS Brushed Stainless Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp offers a sleek and functional solution for creating elegant glass installations around pool decks and patios. Engineered for use with 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass, this clamp ensures a secure and stylish finish. The easy-to-install surface mount design simplifies the installation process, requiring two 5/8" (16 mm) holes per clamp for glass fabrication. With a height of 7-1/16" (179 mm) and a base plate diameter of 3-1/2" (89 mm), the AFWC4SBS is both practical and aesthetically pleasing, minimizing distractions from your view. This clamp is part of a range that allows for a frameless look, ideal for windscreen or pool surround applications. Crafted from durable 316 stainless steel, the brushed finish not only enhances visual appeal but also provides resistance to corrosion. Regular maintenance is recommended to preserve its factory finish. C.R. Laurence encourages users to verify local building codes to ensure compliance with safety regulations. This product ships via UPS and has no shipping limitations, making it a convenient choice for your glazing needs.

Brushed Stainless Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp

Designed for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass
Easy to Install Surface Mount Design

CRL One-Piece Surface Mount Clamps are designed for easy surface mount installation around pool decks and patios. Glass fabrication requires two 5/8" (16 mm) holes per Clamp. Height: 7-1/16" (179 mm).

CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.

NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Alloy: 316

Attachment: Surface

Base Plate Diameter: 3-1/2 in. (89 mm)

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Diameter: 1-7/8in. (48 mm)

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)

Material: Stainless Steel

Mounting Hole Diameter: 9/32 in. (7 mm)
