Images may not represent actual product and finish

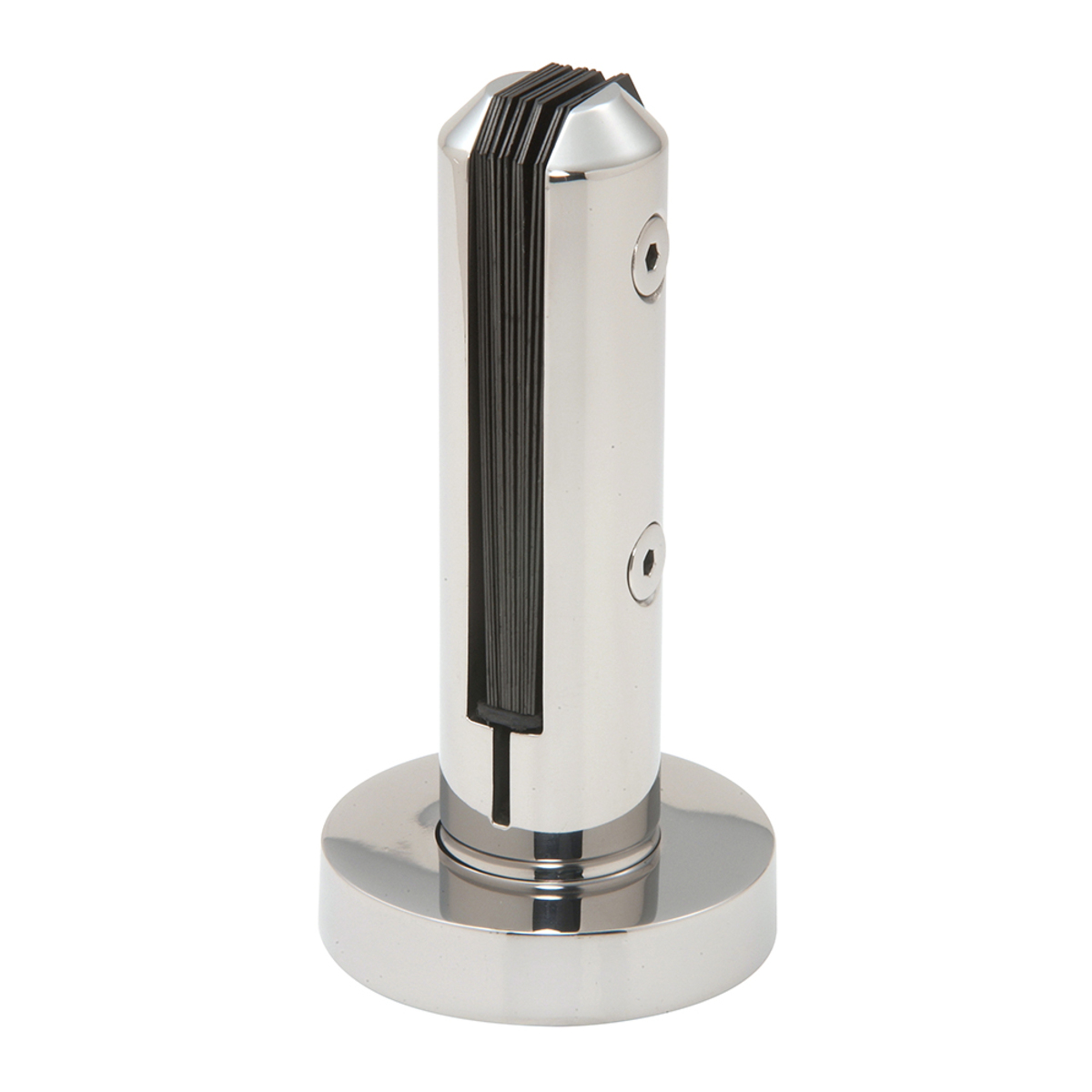

CRL AFWC4SPS Polished Stainless Low Profile Round Frameless Windscreen Clamp

Your Price: $265.53

Retail Price:$317.88

Your Savings:$52.35(16%)

CRL AFWC4SPS: Polished stainless steel clamp for 3/8" to 1/2" tempered glass, easy surface mount installation. Ideal for windscreens.

Part Number : CRL_AFWC4SPS

Availability: 234 In Stock

Quantity

Description

CRL AFWC4SPS Polished Stainless Low Profile Round Frameless Windscreen Clamp

C.R. Laurence AFWC4SPS Polished Stainless Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp offers a sleek and durable solution for creating stylish glass windscreens or pool surrounds. Designed for compatibility with 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass, this clamp ensures a secure fit while maintaining an elegant aesthetic. The easy-to-install surface mount design allows for quick setup around pool decks and patios, making it an ideal choice for both residential and commercial applications. With a height of 7-1/16" (179 mm) and a base plate diameter of 3-1/2" (89 mm), this clamp provides stability and support without the distraction of bulky frame members. It requires two 5/8" (16 mm) holes per clamp for proper glass fabrication. Crafted from polished stainless steel, the AFWC4SPS is not only resistant to corrosion but also adds a modern touch to any outdoor space. Periodic maintenance is recommended to preserve its factory finish. Additionally, custom powder-painted finishes are available to match your design preferences. As always, be sure to check local building codes to ensure compliance with regulations.

Polished Stainless Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp

Designed for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass
Easy to Install Surface Mount Design

CRL One-Piece Surface Mount Clamps are designed for easy surface mount installation around pool decks and patios. Glass fabrication requires two 5/8" (16 mm) holes per Clamp. Height: 7-1/16" (179 mm).

CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.

NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Alloy: 316

Attachment: Surface

Base Plate Diameter: 3-1/2 in. (89 mm)

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Diameter: 1 7/8 in. (48 mm)

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)

Material: Stainless Steel

Mounting Hole Diameter: 9/32 in. (7 mm)

Shipping Limitations: None
