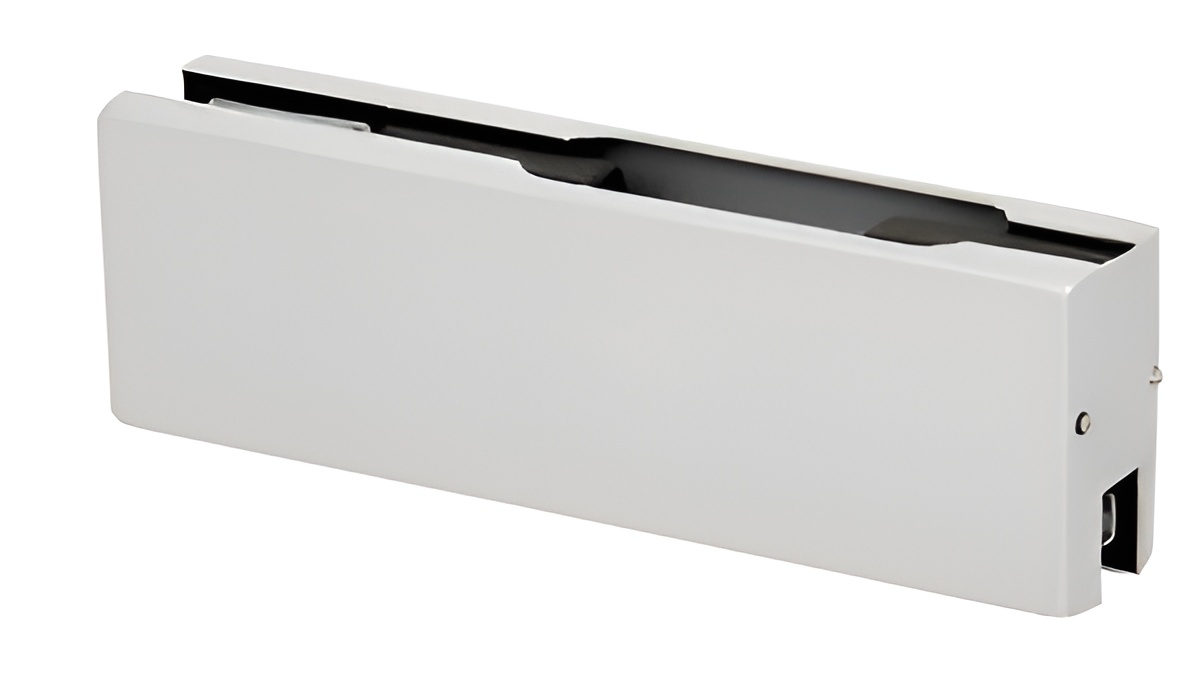

C.R. Laurence AMR201A Aluminum Top or Bottom Patch Fitting - Less Insert offers exceptional versatility for both top and bottom installations, allowing you to accommodate your project’s specific needs. Designed to work with either 3/8" or 1/2" (10 or 12 mm) glass, this fitting features a high-density cast body that ensures durability and reliability. Included with the AMR201A are cover plates available in a finish of your choice, along with gaskets that provide a secure fit for your glass. The product also comes complete with a template and detailed instructions for easy installation. For optimal use, it requires one corner notch in the glass. Please note that this fitting is not suitable for laminated glass and has specific guidelines for usage: maximum height of 102 inches (2.59 m), maximum weight of 176 lbs. (80 kg), and maximum width of 42 inches (1.09 m). If these limits are exceeded, full door rails should be considered. With its satin anodized finish, the C.R. Laurence AMR201A not only delivers functionality but also adds a sleek aesthetic to any architectural design. Ideal for building professionals and knowledgeable homeowners alike, this patch fitting is a reliable choice for your glazing projects.
Aluminum Top or Bottom Patch Fitting - Less Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Shipping Limitations: None
Type: Top or Bottom
With Insert: No
