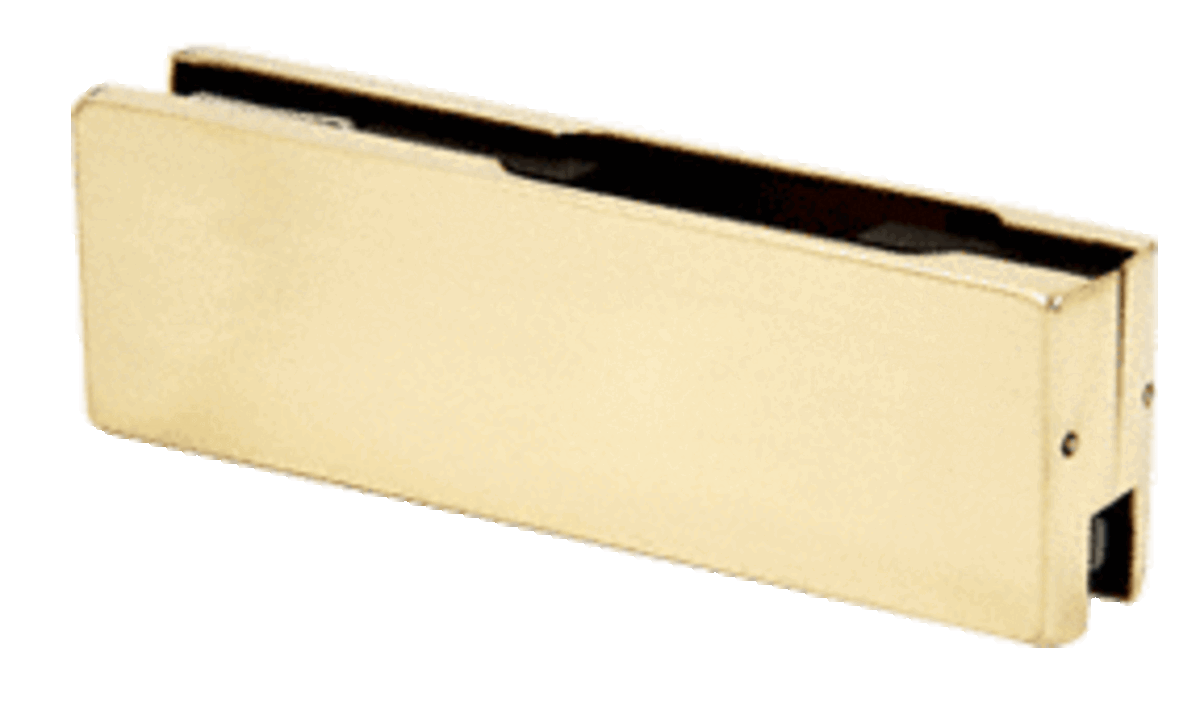

CRL AMR201BR Brass Patch Fitting - Top/Bottom, No Insert
Images may not represent actual product and finish

CRL AMR201BR Brass Patch Fitting - Top/Bottom, No Insert

Your Price: $53.95
Retail Price:$64.58
Your Savings:$10.63(16%)
The CRL AMR201BR Brass Patch Fitting offers versatile installation for 3/8" or 1/2" glass with a durable cast body.
Part Number : CRL_AMR201BR
Availability: 526 In Stock
CRL AMR201BR Brass Patch Fitting - Top/Bottom, No Insert

C.R. Laurence AMR201BR Brass Top or Bottom Patch Fitting - Less Insert is designed for versatility and durability in architectural applications. This high-density cast body fitting allows for seamless integration as either a top or bottom fitting by simply adding the appropriate insert, making it an ideal choice for customizable glass door installations. Compatible with 3/8" (10 mm) or 1/2" (12 mm) glass, the AMR201BR includes gaskets tailored for each thickness, ensuring a snug and secure fit. When using this fitting, a single corner notch is required for proper glass fabrication. It also comes with cover plates available in your choice of finish, enhancing both functionality and aesthetic appeal. This fitting is engineered to support glass doors with a maximum height of 102" (2.59 m), a weight limit of 176 lbs. (80 kg), and a maximum width of 42" (1.09 m). For doors exceeding these dimensions, full door rails should be utilized. Please note that this fitting is not suitable for laminated glass. With its polished brass finish, the AMR201BR combines elegance with robust performance, making it a reliable choice for both building professionals and discerning homeowners seeking quality glazing solutions.

Brass Top or Bottom Patch Fitting - Less Insert

  • For Use with Top and Bottom Inserts
  • High Density Cast Body
  • Gaskets for Use With 3/8" or 1/2" (10 or 12 mm) Glass

This CRL American T/B Door Patch (Less Insert) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.


For Use with Top and Bottom Inserts:
  • 1NT303 for top
  • 1NT301 for bottom

    Glass Fabrication Required:
  • One Corner Notch

    Includes:
  • High Density Cast Body
  • Cover Plates (Finish of Your Choice)
  • Gaskets for 3/8" or 1/2" (10 or 12 mm)
  • Template and Instructions


    Product Warning:

    These fittings are not for use with Laminated Glass.

    The following guidelines are to be used when making a 1/2" glass door using this hardware:

    Maximum Height: 102" (2.59 m)
    Maximum Height: 176 Lbs. (80 kg)
    Maximum Width: 42" (1.09 m)

    If the door exceeds any of these limitations, full door rails should be used.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Brass Finish Advisory:
    Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

    • Attributes

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Finish/ Color:: Polished Brass

    Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

    Shipping Limitations: None

    Type: Top or Bottom

    With Insert: No
