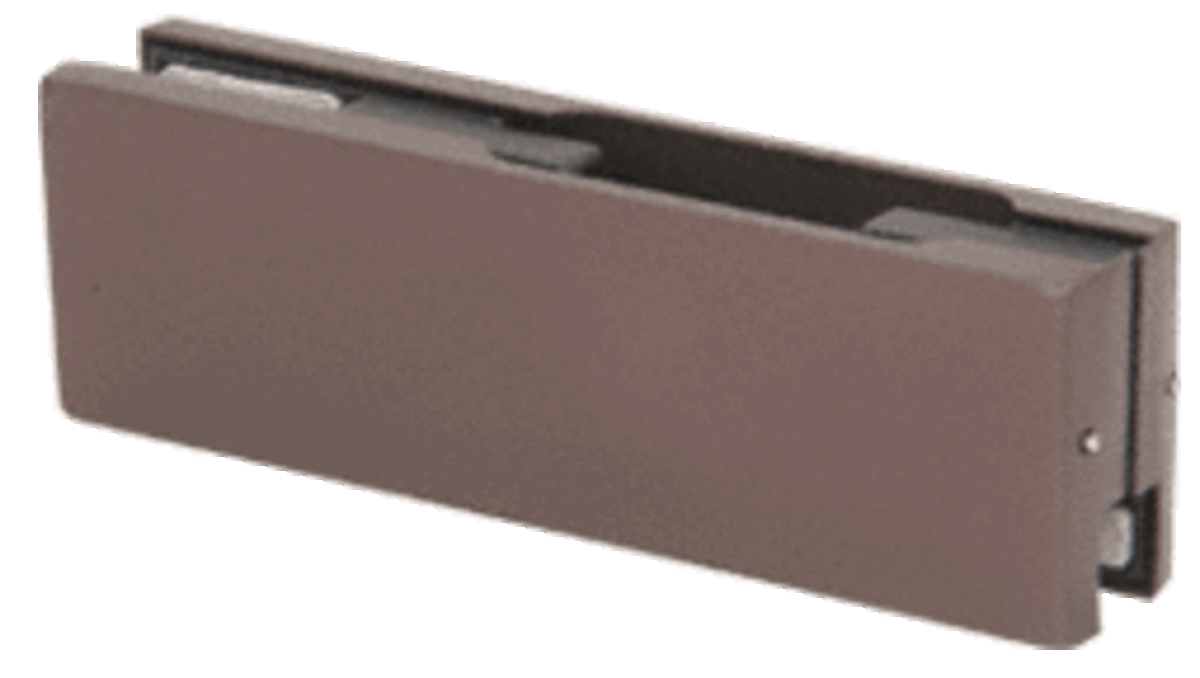

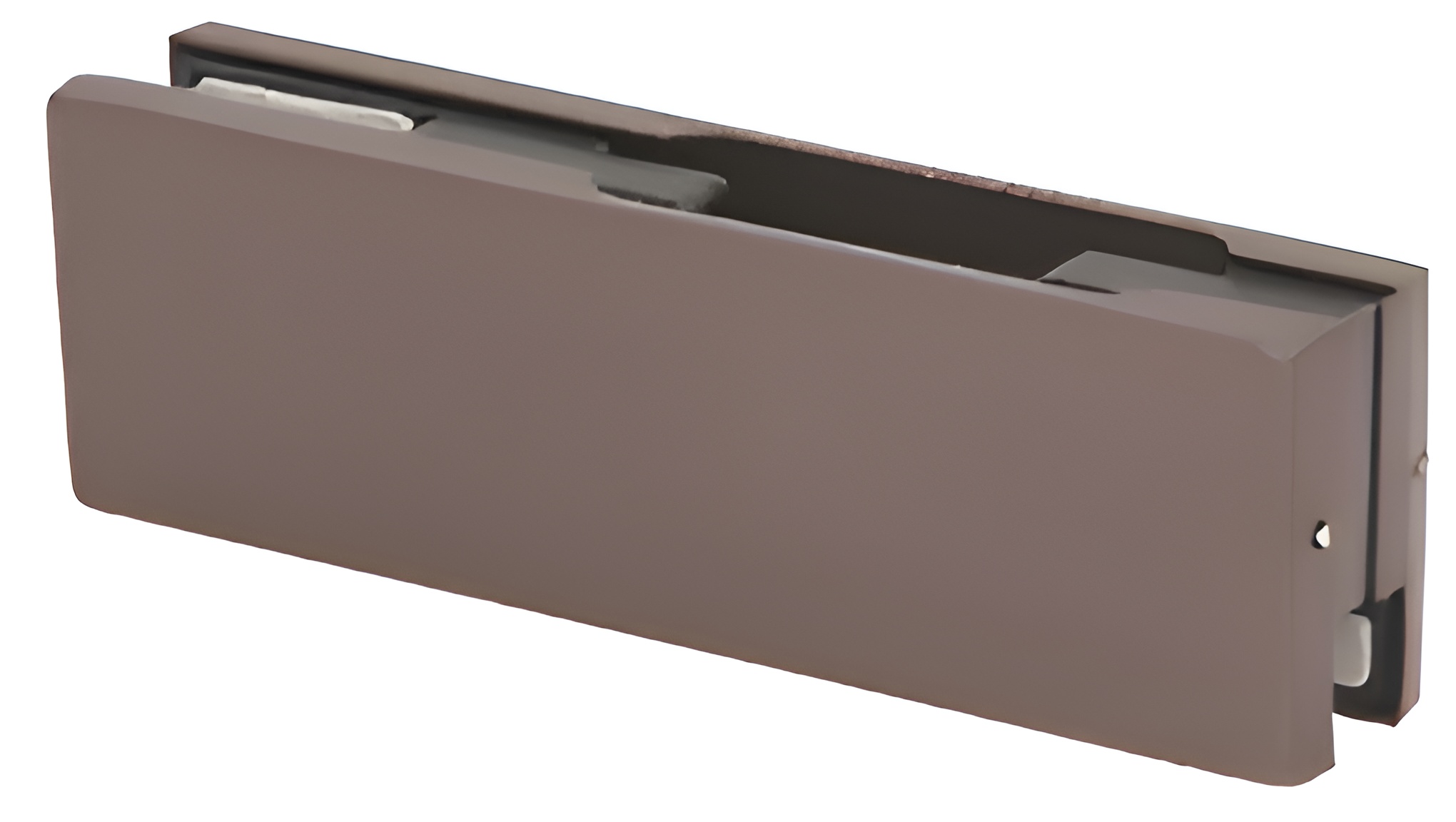

C.R. Laurence AMR201DU Black Bronze Top or Bottom Patch Fitting - Less Insert offers versatility and durability for your glass door applications. Designed to accommodate both top and bottom inserts, this patch fitting allows for easy customization by simply installing the appropriate insert (1NT303 for top and 1NT301 for bottom). Crafted from a high-density cast body, it ensures robust performance and longevity. This fitting is compatible with 3/8" or 1/2" (10 mm or 12 mm) glass, making it suitable for a variety of glass thicknesses. The included gaskets enhance the seal, while the cover plates, available in a finish of your choice, add an aesthetic touch to your installations. For optimal results, glass fabrication requires one corner notch. When using this fitting, keep in mind the maximum specifications: a height of 102" (2.59 m), a weight limit of 176 lbs. (80 kg), and a maximum width of 42" (1.09 m). Exceeding these dimensions necessitates the use of full door rails. Please note, this product is not suitable for laminated glass. With the C.R. Laurence AMR201DU, achieve both functionality and style in your architectural projects.
Black Bronze Top or Bottom Patch Fitting - Less Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Shipping Limitations: None
Type: Top or Bottom
With Insert: No
