CRL AMR205A Satin Anodized AMR Series Patch LockC.R. Laurence AMR205A Satin Anodized AMR Series Patch Lock offers a robust solution for securing glass doors with style and functionality. Designed with a high-density cast body, this patch lock ensures durability and reliability in everyday use. It accommodates 3/8" or 1/2" (10 or 12 mm) glass, making it versatile for various installations. This American-style patch lock can be mounted on the top, bottom, or vertical edge of doors, providing flexibility for your design needs. It includes a keeper for securing to a jamb and can be paired with the AMR206 Sidelite Mount Keeper for added stability. For unique installations, optional keepers such as the AMR207 and AMR208 are available, ensuring compatibility with most door types. Installation requires minimal glass fabrication, needing just a 3/4" (19 mm) diameter hole and a corner notch for top or bottom mounts, or a U-cutout for side mounts. The lock comes with a template and detailed instructions for straightforward installation. Please note that the locking cylinders must be ordered separately, with options for double keyed or single keyed cylinders featuring a thumbturn. With five architectural finishes available, the AMR205A not only secures but also enhances the aesthetic of your space.

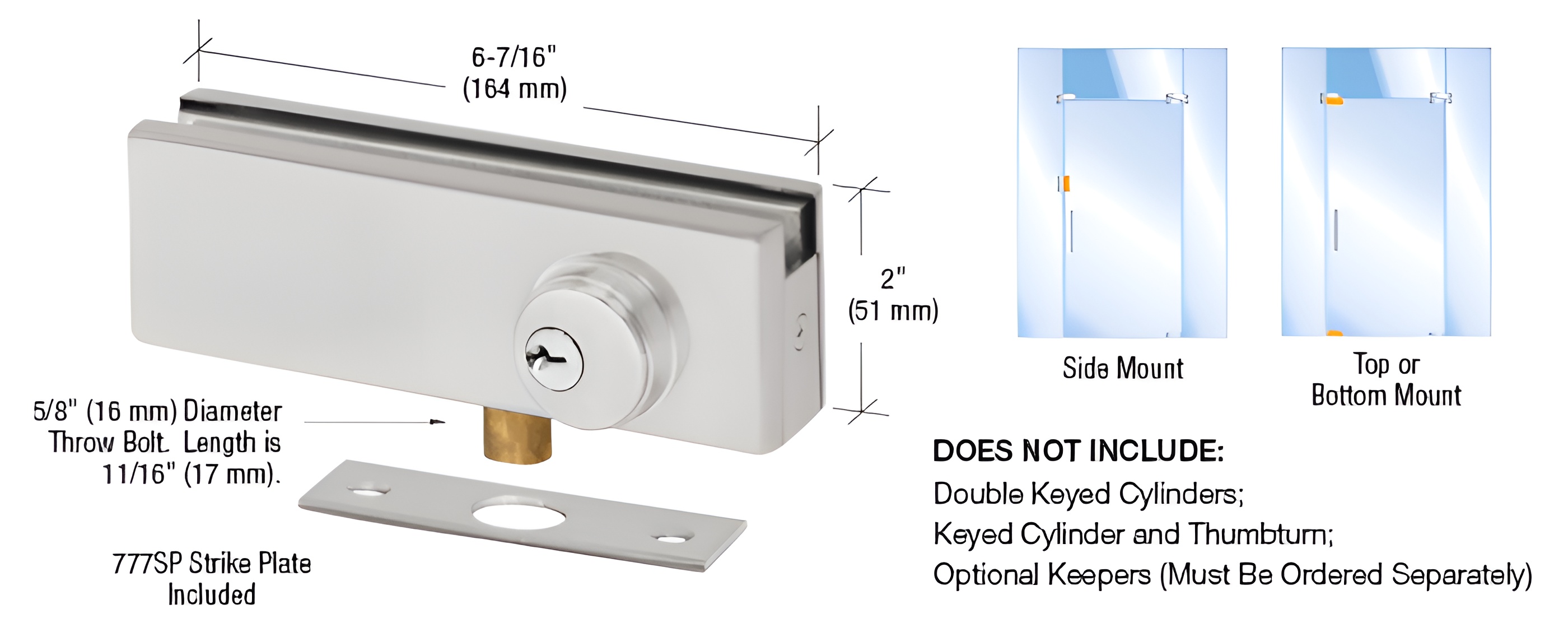

Satin Anodized AMR Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in. (10 mm)
Height: 2 in. (51 mm)
Shipping Limitations: None
Width: 6-7/16 in. (164 mm)
