CRL AMR205BR Brass AMR Series Patch LockC.R. Laurence AMR205BR Brass AMR Series Patch Lock is a versatile locking solution designed for both functionality and aesthetic appeal. Crafted with a high-density cast body, this patch lock ensures durability while providing a secure locking mechanism. It accommodates 3/8" or 1/2" (10 mm or 12 mm) glass, making it suitable for various door applications. This lock can be mounted on the top, bottom, or vertical edge of doors, allowing for seamless integration into your design. The included Keeper enables secure attachment to the jamb, while optional keepers such as the AMR207 and AMR208 expand installation possibilities. For added versatility, it can also be paired with the AMR206 Sidelite Mount Keeper for glass panels or doors. To ensure optimal performance, the lock requires specific glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch for top or bottom mounts, or a U-cutout for side mounts. The AMR205BR comes with a template and instructions for easy installation. Note that cylinders are sold separately, with options for double-keyed or single-keyed configurations. With five architectural finishes available, this patch lock is the perfect blend of style and security for your glass door systems.

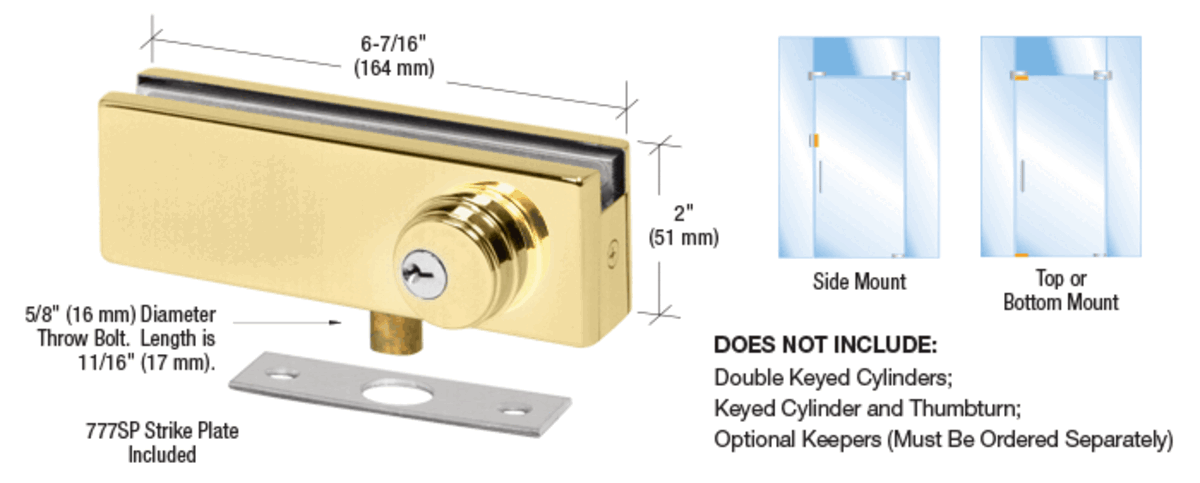

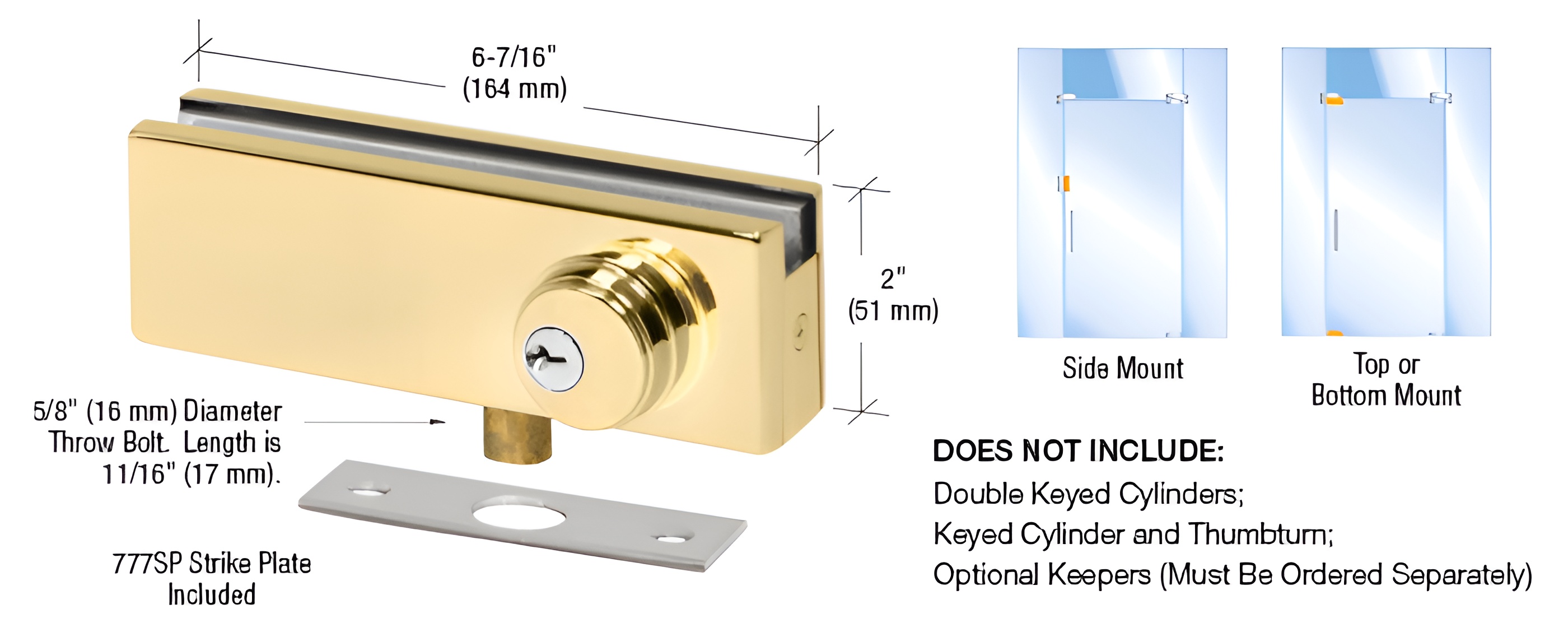

Brass AMR Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. (10 mm)
Height: 2 in. (51 mm)
Shipping Limitations: None
Width: 6-7/16 in. (164 mm)
