CRL AMR205CCBS Brushed Stainless AMR Double Keyed CylindersC.R. Laurence AMR205CCBS Brushed Stainless AMR Series Double Keyed Cylinders deliver both security and style for your glass installations. Constructed with a high-density cast body, these cylinders are designed for durability and reliable performance. They are compatible with 3/8" or 1/2" (10 or 12 mm) glass, making them an ideal choice for various glass applications. The AMR205CCBS features five elegant architectural finishes, allowing for seamless integration into your design aesthetic. Whether mounted at the top or bottom of doors, or on the vertical edge, this patch lock provides versatile installation options. The included keeper ensures a secure fit against the jamb, while optional keepers like the AMR206 Sidelite Mount Keeper expand its usability for different configurations. For effective double door applications, remember to install a bottom patch lock on the inactive leaf to secure the pair fully. The product comes complete with a template and instructions for easy installation, while glass fabrication is required for proper setup. Although stainless steel is resistant to corrosion, regular maintenance is recommended to preserve its finish. Explore the AMR205CCBS for a dependable and stylish locking solution in your architectural projects.

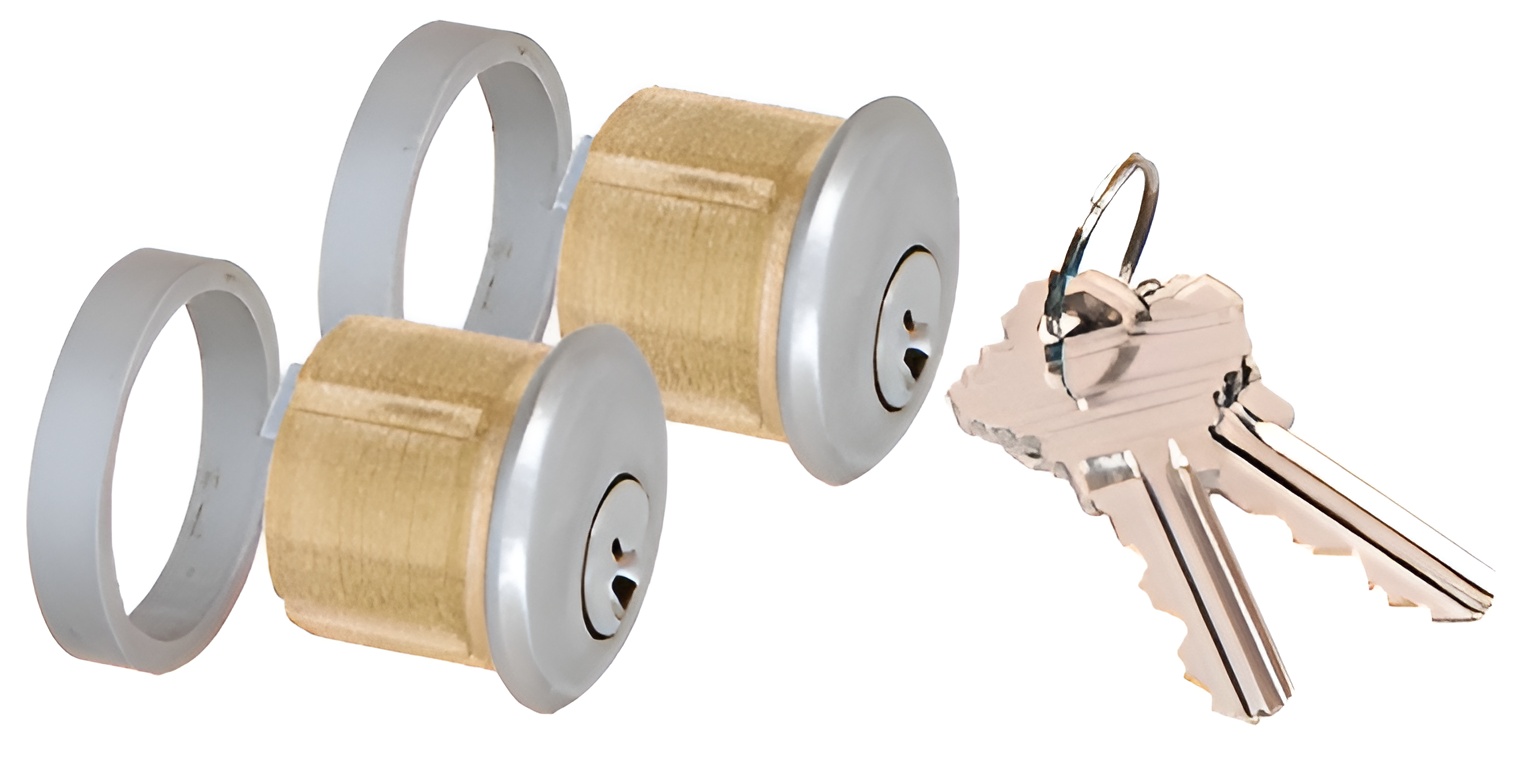

Brushed Stainless AMR Series Double Keyed Cylinders
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Brushed Stainless Steel
Shipping Limitations: None
