CRL AMR205CTA Satin Anodized AMR Keyed Cylinder/Thumbturn for AMR205 Patch LockC.R. Laurence AMR205CTA Satin Anodized AMR Series Keyed Cylinder/Thumbturn is designed to enhance security and convenience for your glass door installations. Featuring a high-density cast body, this locking mechanism is robust and reliable, ensuring long-lasting performance. It includes gaskets suitable for both 3/8" and 1/2" (10 or 12 mm) glass, making it versatile for various applications. The AMR Patch Lock can be mounted at the top or bottom of doors, or secured on the vertical edge, offering flexibility in installation. It can be paired with the included Keeper or the optional AMR206 Sidelite Mount Keeper for a secure connection to glass panels. Additionally, a range of optional keepers like the AMR207 and AMR208 are available to accommodate most installation needs. For optimal functionality, note that glass fabrication requires a 3/4" (19 mm) diameter hole and a corner notch for top or bottom mounts, or a U-cutout for side mounts. Each unit comes with a template and detailed instructions for ease of installation. The AMR205CTA is available in five architectural finishes, allowing you to match your design aesthetic while ensuring safety and security. Please be aware that optional keepers and double keyed cylinders must be ordered separately.

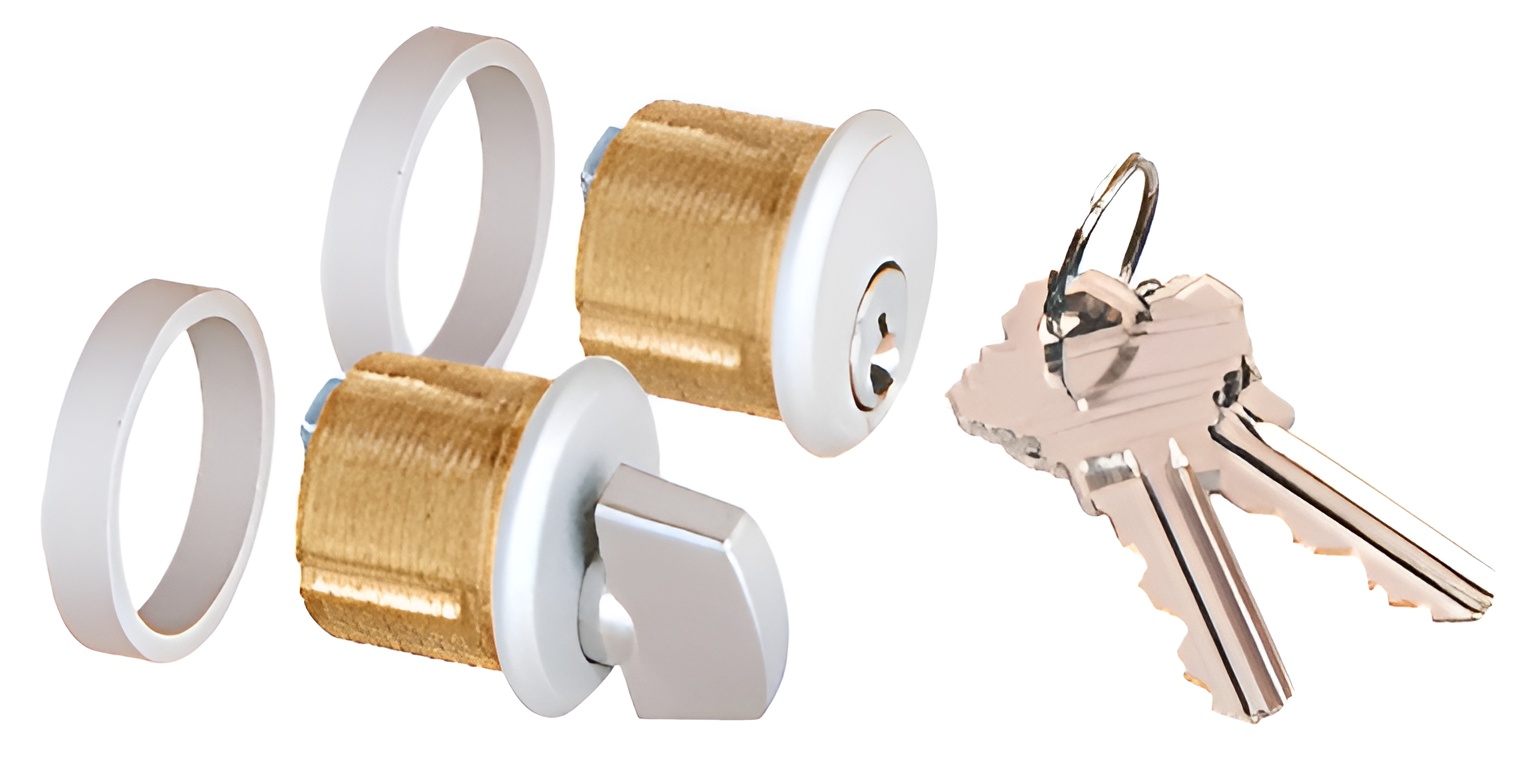

Satin Anodized AMR Series Keyed Cylinder/Thumbturn for Use With AMR205 Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Satin Anodized
