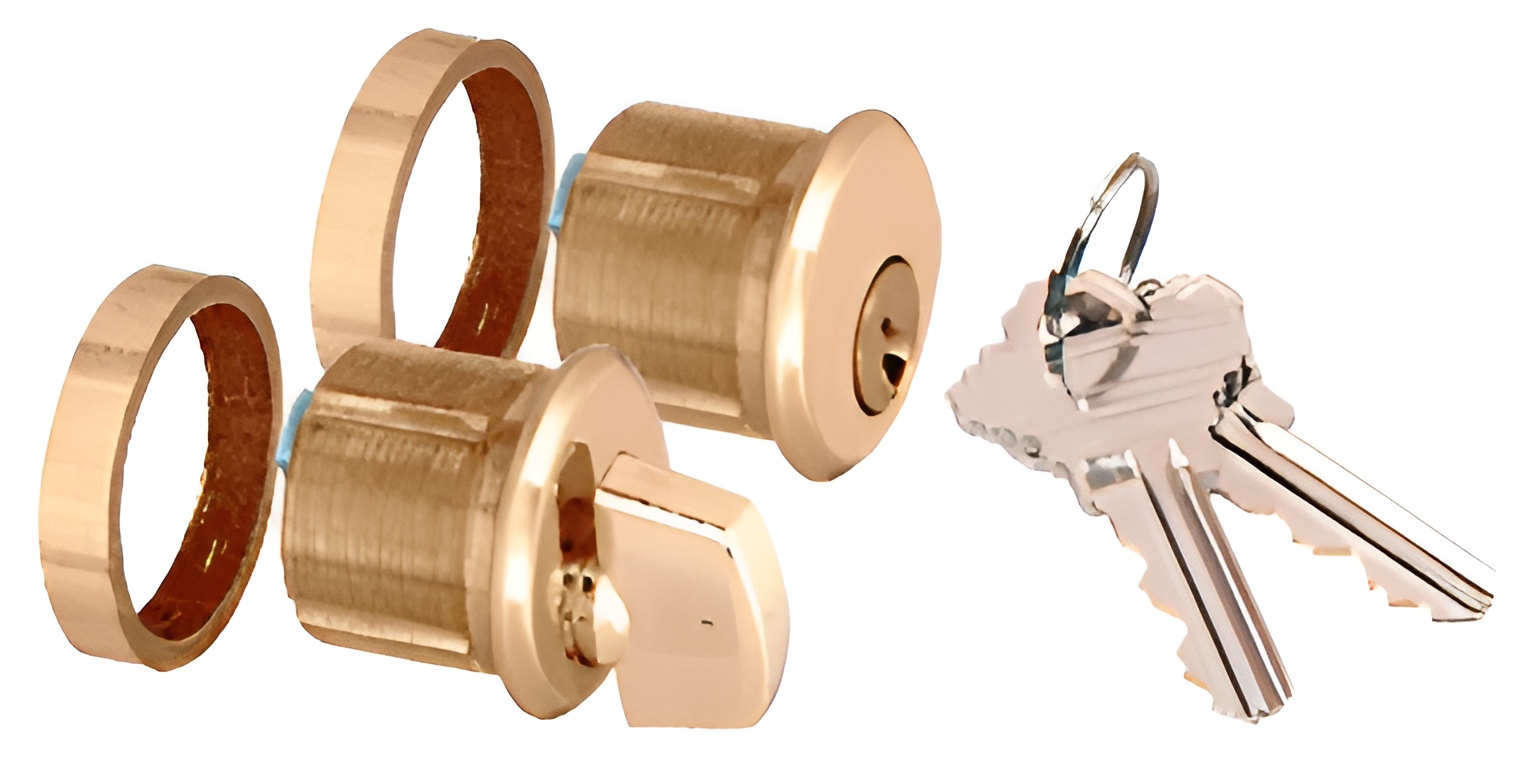

CRL AMR205CTBR Brass AMR Keyed Cylinder with ThumbturnC.R. Laurence AMR205CTBR Brass AMR Series Keyed Cylinder/Thumbturn is designed for versatility and security in modern glass door applications. Crafted with a high-density cast body, this patch lock features a robust lock mechanism that ensures reliable performance. Designed to accommodate both 3/8" and 1/2" (10 or 12 mm) glass, it comes with gaskets for a secure fit, making it ideal for various installations. Available in five elegant architectural finishes, the AMR205CTBR adds a touch of sophistication to any space. This lock can be conveniently mounted on the top or bottom of doors, or even on the vertical edge, and is secured to a jamb using the supplied Keeper. For added flexibility, it can be installed on a glass panel or door with the optional AMR206 Sidelite Mount Keeper, while a selection of optional keepers-such as the AMR207 and AMR208-are available to suit different installation needs. To ensure proper installation, glass fabrication is required, including a 3/4" (19 mm) diameter hole and a corner notch for top or bottom mounts. The package includes a template and instructions for ease of use. Note that double keyed cylinders and optional keepers must be ordered separately. With its polished brass finish, the AMR205CTBR blends durability with style, making it an excellent choice for both residential and commercial projects.
Brass AMR Series Keyed Cylinder/Thumbturn
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Polished Brass
Shipping Limitations: None
