CRL AMR205CTBS Brushed Stainless AMR Keyed Cylinder ThumbturnC.R. Laurence AMR205CTBS Brushed Stainless AMR Series Keyed Cylinder/Thumbturn offers a robust locking solution suitable for a variety of glass door applications. Designed with a high-density cast body, this patch lock integrates seamlessly with 3/8" or 1/2" (10 or 12 mm) glass through the inclusion of gaskets, ensuring a secure fit and reliable operation. Versatile in its installation options, the AMR205CTBS can be mounted at the top or bottom of doors, or on the vertical edge, providing flexibility for different door configurations. It can be secured to a jamb using the supplied Keeper, or attached to a glass panel with the compatible AMR206 Sidelite Mount Keeper. For double door installations, a bottom patch lock is essential on the inactive leaf to maintain security. This model is available in five architectural finishes, allowing for aesthetic customization that matches any design scheme. Additionally, optional cylinders, including double keyed and single keyed with thumbturn variants, enhance the lock’s functionality to meet diverse needs. The product comes with a template and instructions for straightforward installation, although certain components must be ordered separately. For maintenance, periodic upkeep is recommended to preserve its brushed stainless steel finish.

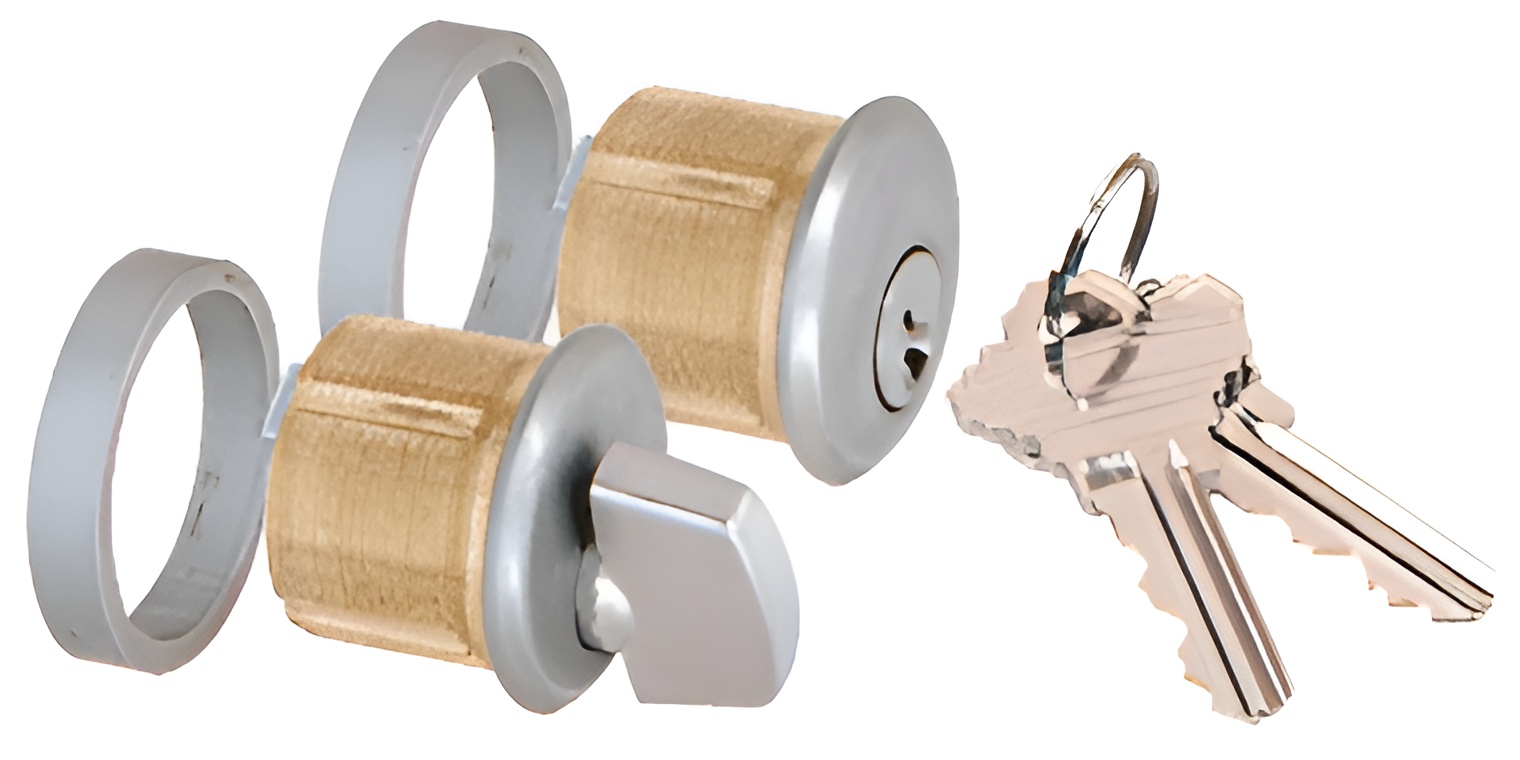

Brushed Stainless AMR Series Keyed Cylinder/Thumbturn
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Brushed Stainless Steel
Shipping Limitations: None
