CRL AMR205CTDU Dark Bronze AMR Keyed Cylinder with ThumbturnC.R. Laurence AMR205CTDU Dark Bronze AMR Series Keyed Cylinder/Thumbturn seamlessly combines security and style for modern glass door applications. Constructed with a high-density cast body, this robust patch lock features a reliable locking mechanism that ensures peace of mind without compromising aesthetics. Designed for versatility, it can be mounted at the top or bottom of doors, or along the vertical edge, and is equipped with gaskets to accommodate both 3/8" and 1/2" (10 mm or 12 mm) glass. Available in five architectural finishes, including a striking dark bronze anodized option, the AMR205CTDU enhances any interior or exterior setting. This model is compatible with a variety of keepers, including the AMR206 Sidelite Mount Keeper, and offers optional cylinders for customization, such as the double keyed or single keyed cylinder with thumbturn. For installation, glass fabrication is required, including a 3/4" (19 mm) diameter hole and a corner notch for top or bottom mounts, or a U-cutout for side mounts. Each unit comes with a template and instructions for easy setup. For double door applications, a bottom patch lock is necessary on the inactive leaf to ensure proper security. Elevate your glass door systems with the AMR205CTDU, where quality meets design excellence.

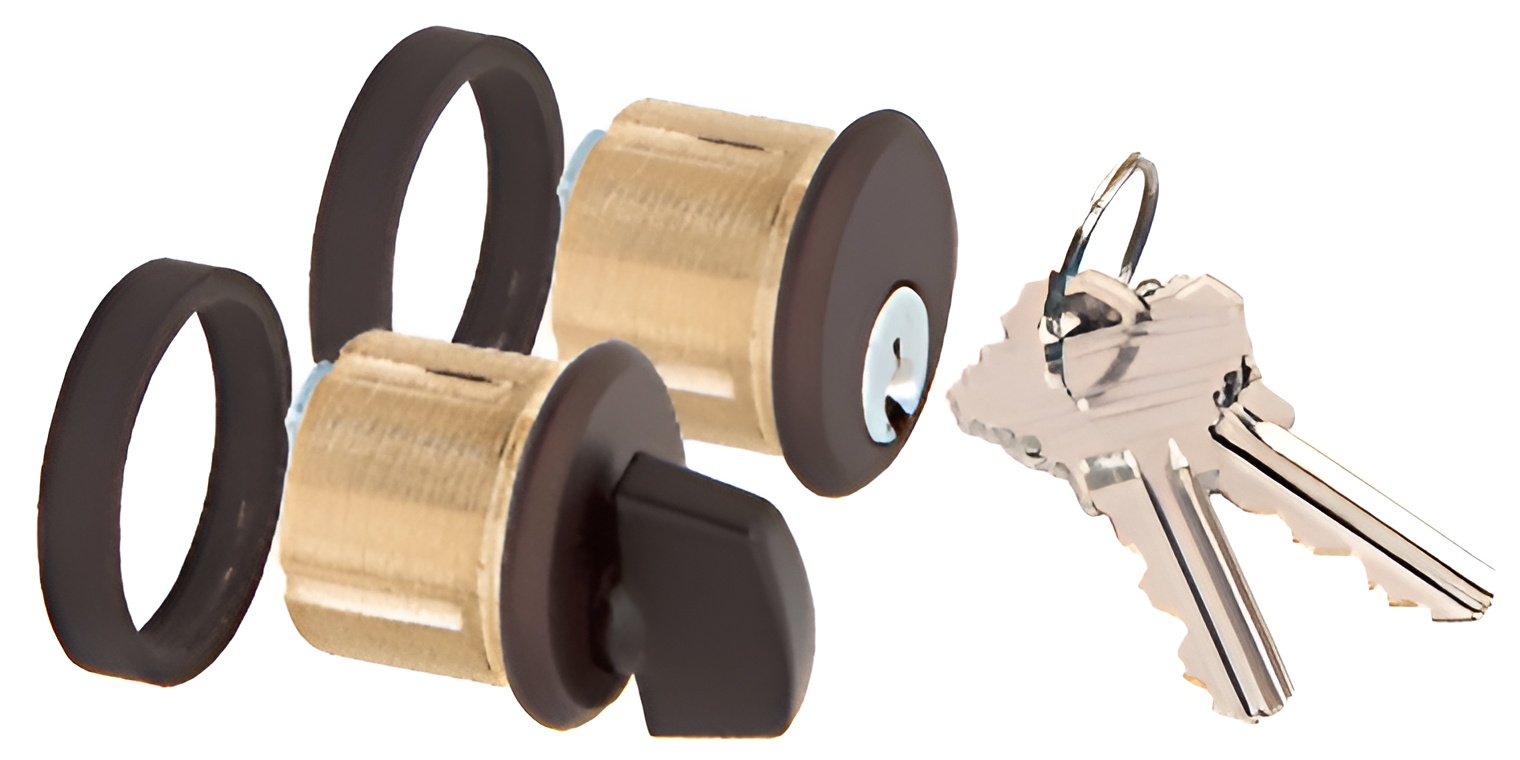

Dark Bronze AMR Series Keyed Cylinder/Thumbturn
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Black Bronze Anodized
Shipping Limitations: None
