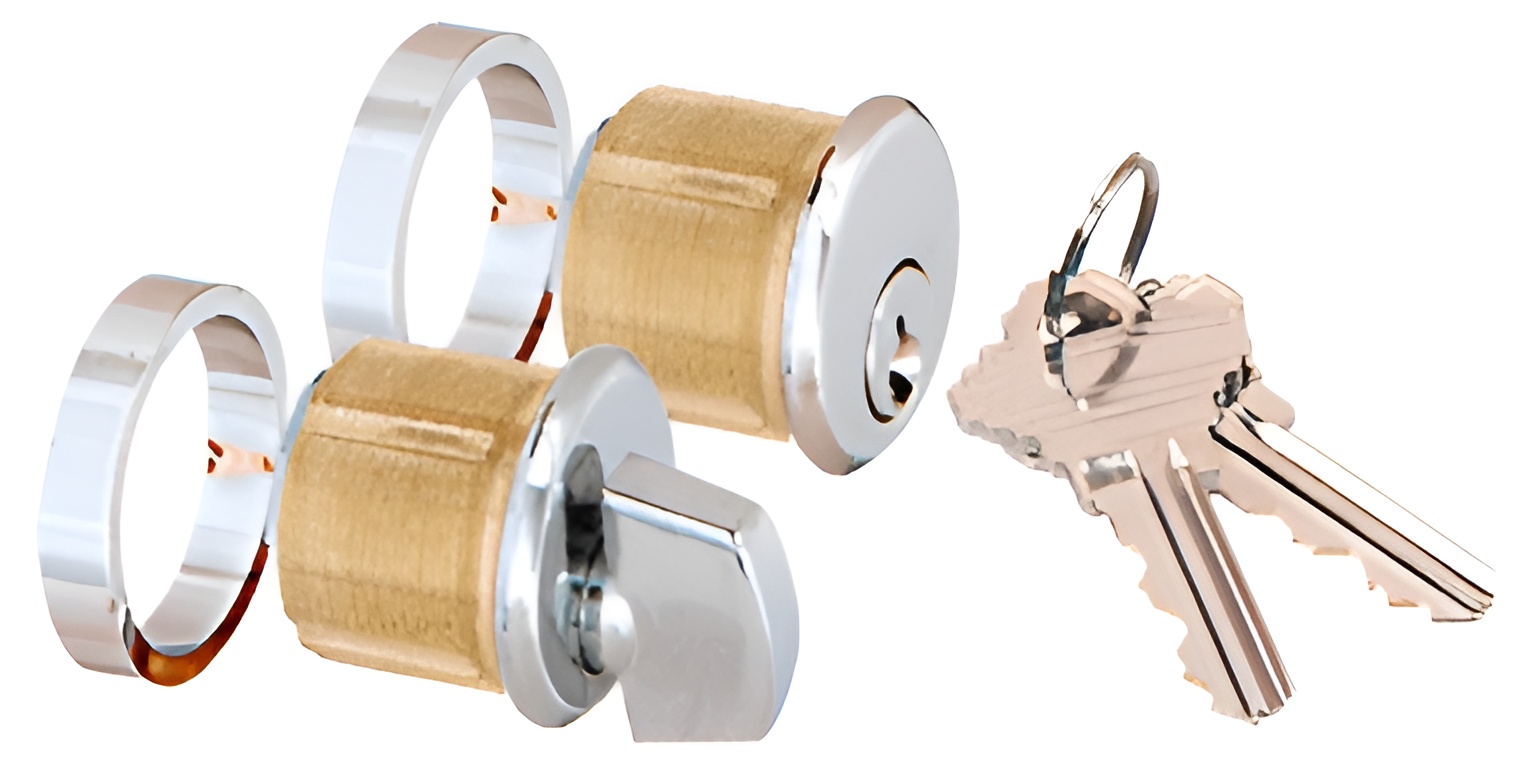

CRL AMR205CTPS Polished Stainless AMR Keyed Cylinder with ThumbturnC.R. Laurence AMR205CTPS Polished Stainless AMR Series Keyed Cylinder/Thumbturn is designed for both versatility and security in glass door applications. Featuring a high-density cast body with a robust lock mechanism, this patch lock ensures reliable operation and durability. It accommodates glass thicknesses of 3/8" or 1/2" (10 or 12 mm) using specially designed gaskets, making it an ideal choice for a variety of installations. This lock can be mounted on the top or bottom of doors, as well as on the vertical edge, providing flexibility in design and functionality. To enhance security, it can be paired with optional keepers like the AMR206 Sidelite Mount Keeper, AMR207, or AMR208, ensuring compatibility with most setups. For added convenience, the lock package includes a template and instructions for easy installation. The AMR205CTPS is available in five architectural finishes, allowing you to choose the perfect match for your project. Stainless steel construction offers resistance to corrosion, though periodic maintenance is recommended to preserve its finish. Whether for residential or commercial applications, this keyed cylinder/thumbturn lock combines style with practicality, ensuring your doors are both secure and aesthetically pleasing.
Polished Stainless AMR Series Keyed Cylinder/Thumbturn
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Polished Stainless Steel
Shipping Limitations: None
