CRL AMR205DU Black Bronze AMR Series Patch LockC.R. Laurence AMR205DU Black Bronze AMR Series Patch Lock delivers exceptional security and versatility for glass doors. Crafted with a high-density cast body, this patch lock features a reliable locking mechanism that can be mounted at the top or bottom of doors, or on their vertical edges, providing flexible installation options. The AMR205DU is compatible with both 3/8" and 1/2" (10 mm or 12 mm) glass, making it suitable for a variety of applications. Available in five elegant architectural finishes, including a striking Black Bronze Anodized option, this patch lock elevates both the functionality and aesthetics of your glass installations. It comes with necessary gaskets and includes a template and instructions for easy setup. Optional keepers, like the AMR206 Sidelite Mount Keeper and others, can be purchased separately to accommodate different installation needs. Please note that the cylinders are not included and must be ordered separately; options include the AMR205CC double keyed and AMR205CT single keyed cylinders with a thumbturn. For double door installations, a bottom patch lock is required for the inactive leaf. With a height of 2" (51 mm) and a width of 6-7/16" (164 mm), the AMR205DU is designed to provide both strength and style for your architectural projects.
Black Bronze AMR Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in. (10 mm)

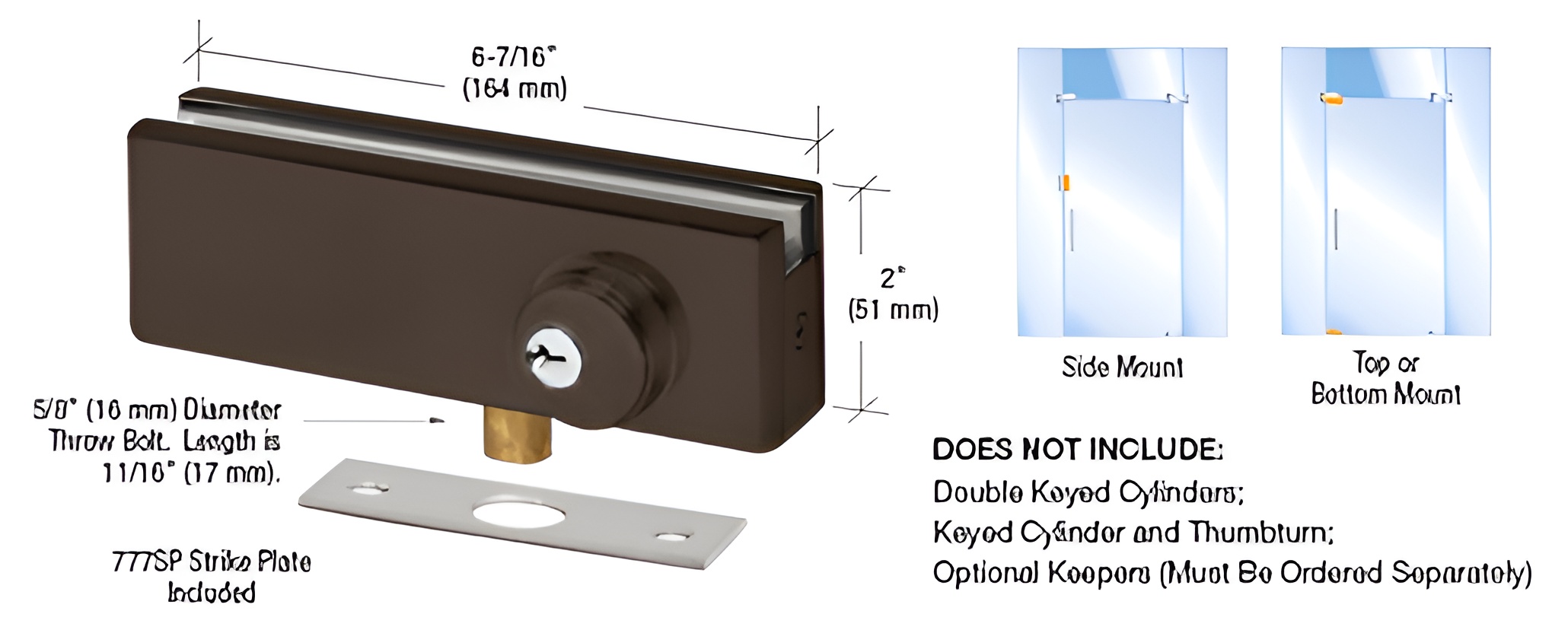

Height: 2 in. (51 mm)
Shipping Limitations: None
Width: 6-7/16 in. (164 mm)
