CRL AMR205MBL Matte Black AMR Series Patch LockC.R. Laurence AMR205MBL Matte Black AMR Series Patch Lock offers a robust solution for securing glass doors with style and functionality. Crafted from high-density cast material, this patch lock features a reliable locking mechanism that ensures peace of mind for both residential and commercial applications. Designed for compatibility with 3/8" (10 mm) or 1/2" (12 mm) glass, it provides flexible installation options. This versatile patch lock can be mounted at the top or bottom of doors or even on the vertical edge, securing to a jamb using the included keeper. For added versatility, the lock can also be paired with optional keepers, such as the AMR206 Sidelite Mount Keeper or the AMR207 and AMR208 models, allowing for a tailored installation to meet specific project needs. With its sleek matte black finish, the AMR205MBL adds a modern touch to any doorway, enhancing the overall aesthetic while providing essential security. The product comes complete with a template and instructions for straightforward installation. Note that cylinders are sold separately and can be selected from options like the AMR205CC double keyed or AMR205CT single keyed with thumbturn. This patch lock is an excellent choice for those seeking both style and functionality in their glass door systems.

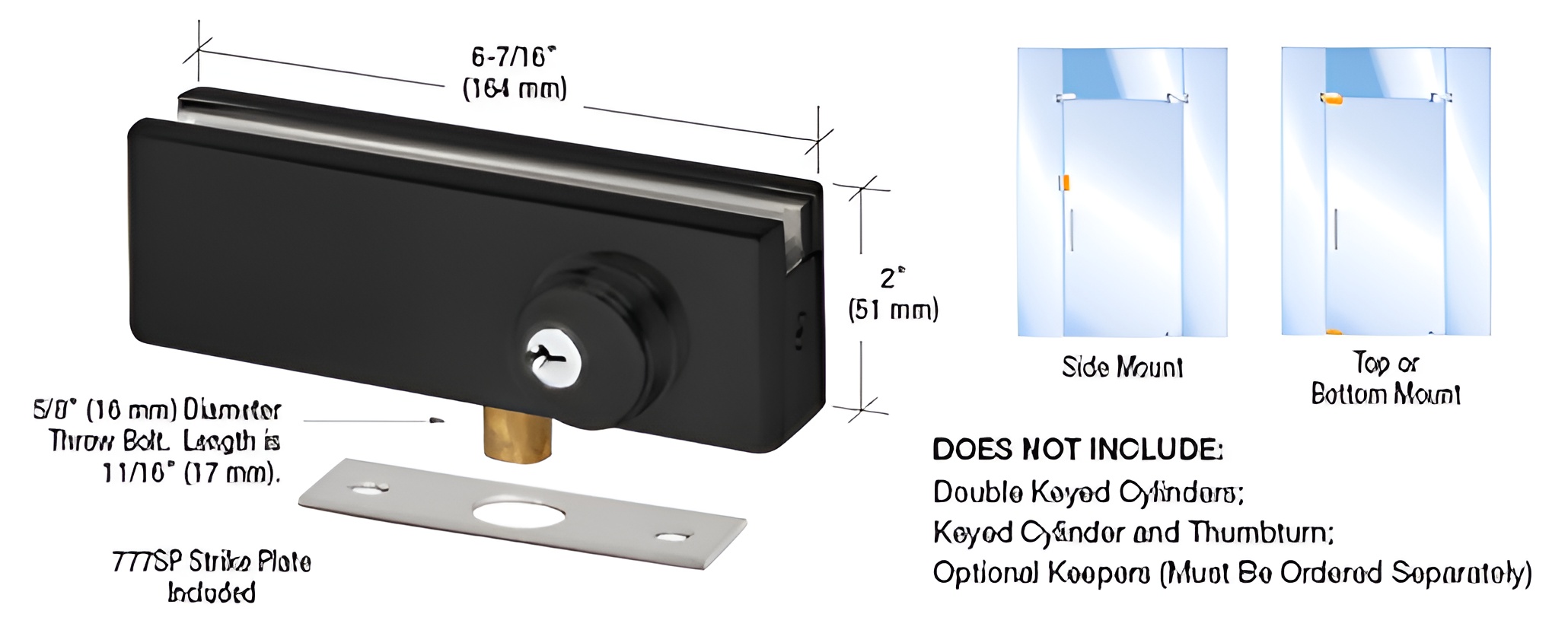

Matte Black AMR Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
" target="_blank">https://www.crlaurence.com/p/AMR206A">AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning
Cylinder are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Shipping Limitations: None
Width: 6-7/16 in. (164 mm)
