CRL AMR205PS Polished Stainless AMR Series Patch LockC.R. Laurence AMR205PS Polished Stainless AMR Series Patch Lock offers a versatile and secure locking solution for glass doors. Crafted from high-density cast body, this patch lock provides strength and durability, making it ideal for various architectural applications. Designed for use with 3/8" or 1/2" (10 or 12 mm) glass, it accommodates a wide range of installation needs. This innovative lock can be mounted on the top or bottom of doors or on the vertical edge, ensuring flexibility in securing your space. The unit includes a Keeper for easy attachment to a jamb and can also be paired with the AMR206 Sidelite Mount Keeper for additional support. For specialized installations, optional keepers such as AMR207 and AMR208 are available. Installation is straightforward, with a template and instructions provided. Note that the lock does not include cylinders, which are available separately as either AMR205CC Double Keyed or AMR205CT Single Keyed with Thumbturn. For double door applications, a Bottom Patch Lock is necessary for the inactive leaf. With five architectural finishes to choose from, the AMR205PS combines functionality with aesthetic appeal, making it a perfect addition to any modern design scheme.

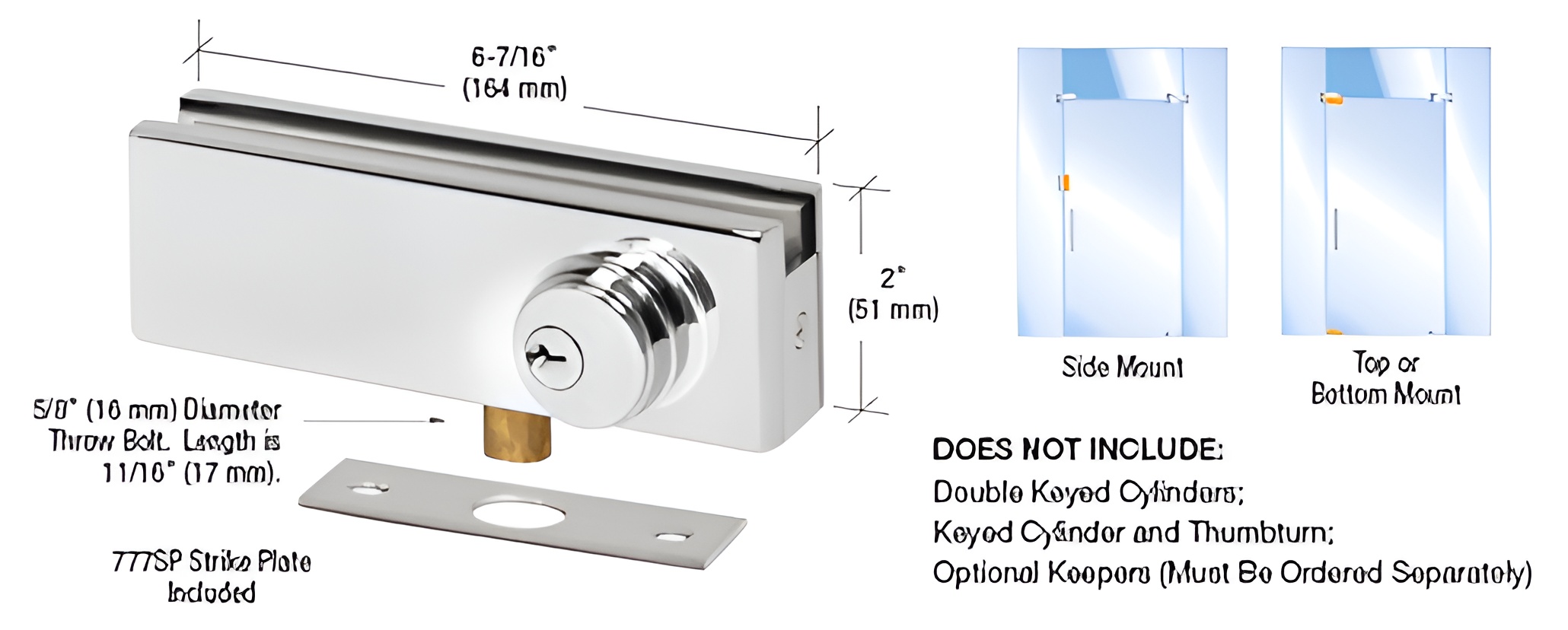

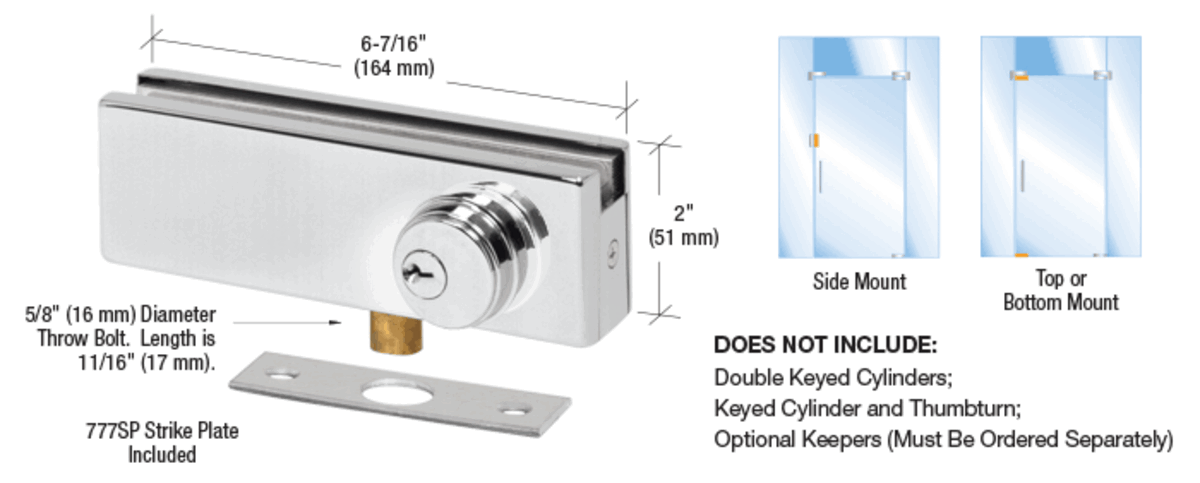

Polished Stainless AMR Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. (10 mm)
Height: 2 in. (51 mm)
Shipping Limitations: None
Width: 6-7/16 in. (164 mm)
