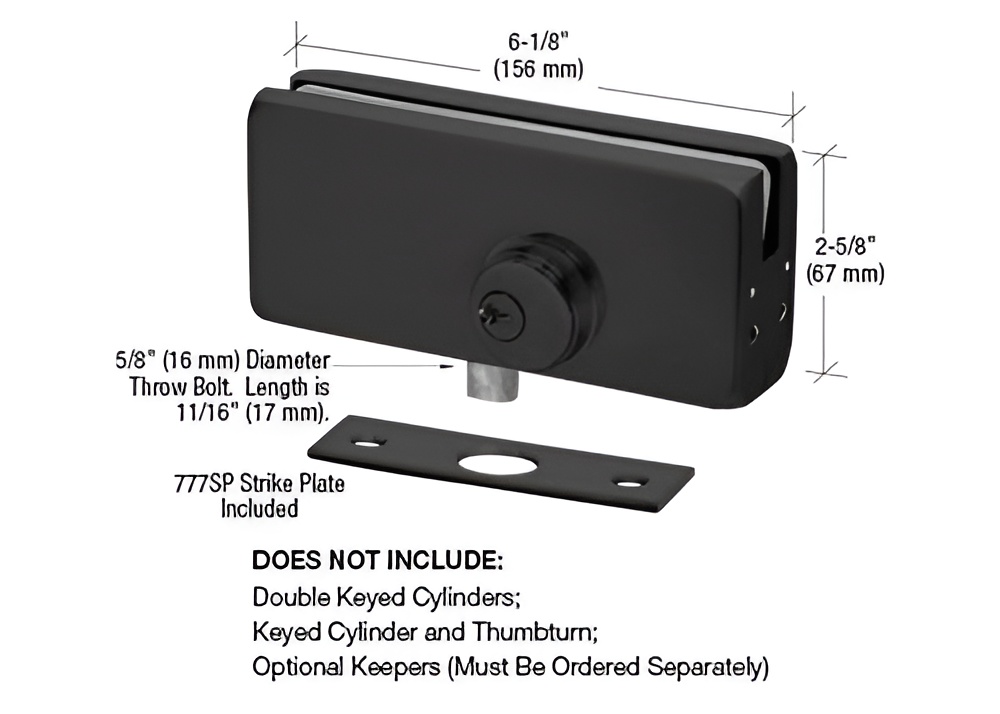

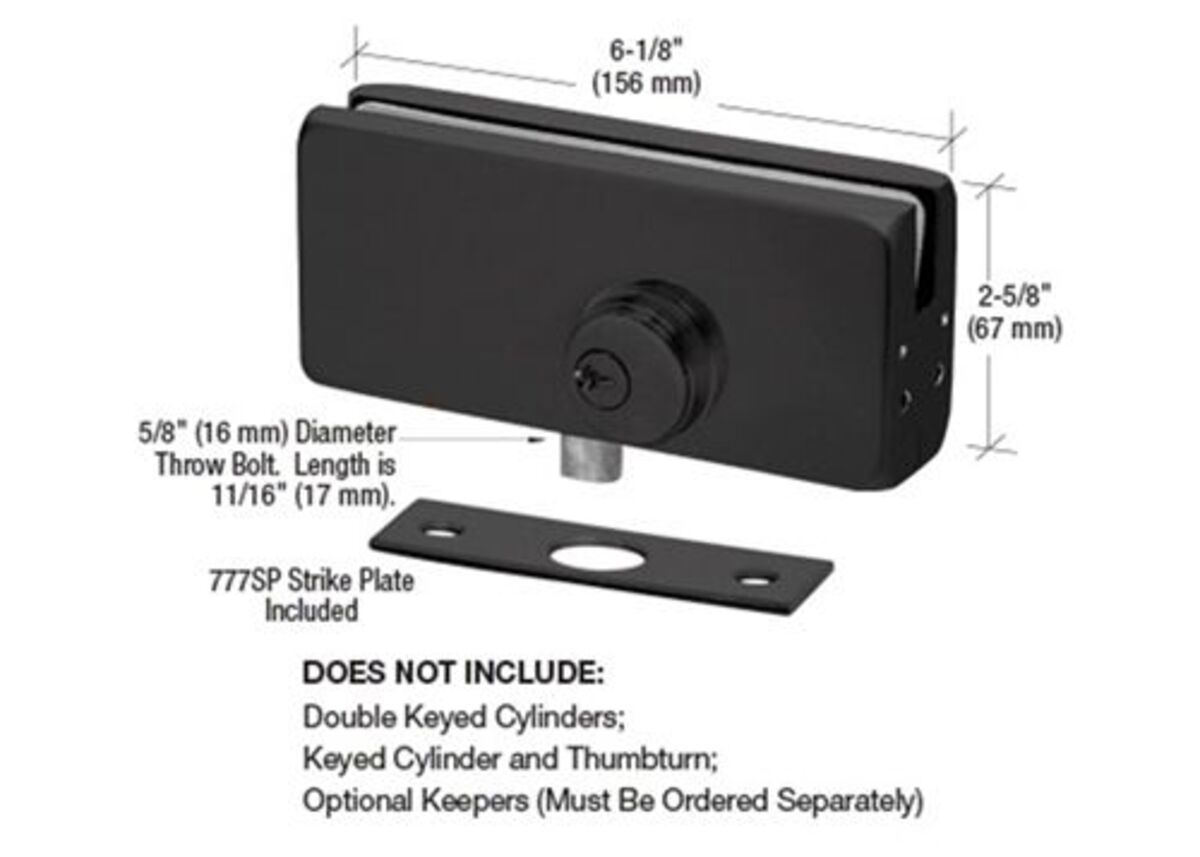

C.R. Laurence Matte Black AMR215 Series Patch Lock offers a robust solution for securing glass applications. Crafted from high-density cast material, this heavy-duty lock features a taller profile housing that enhances security by accommodating more glass within the lock assembly. Compatible with 3/8" or 1/2" (10 or 12 mm) glass, the AMR215 is ideal for top and bottom corner installations, ensuring a tight and secure fit. This versatile lock is designed to be used with either double-keyed cylinders or a keyed cylinder/thumbturn, which are sold separately, providing options to suit your specific security needs. Each unit comes complete with a keeper, while additional optional keepers are readily available to facilitate various installation requirements. The lock’s dimensions measure 2-9/16" (65 mm) in height and 6-1/8" (156 mm) in width, making it a compact yet powerful choice for both commercial and residential applications. For double door setups, a bottom patch lock is necessary for securing the inactive leaf, ensuring comprehensive protection. Each purchase includes a template and instructions for easy installation. Please note that cylinders and optional keepers must be ordered separately. With five architectural finishes available, the AMR215 not only provides security but also complements the aesthetic of any glass feature.
Matte Black AMR215 Series Patch Lock
The American Style Patch Lock is a heavy-duty version of the AMR205 Lock. The taller profile housing provides additional security due to more glass being secured inside the lock housing. This lock can only be installed in top and bottom corner applications. It can be locked with either double keyed cylinders or a keyed cylinder/thumbturn which are ordered separately. A keeper is supplied with optional keepers available to accommodate most installations.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2-9/16 in. (65 mm)
Shipping Limitations: None
Width: 6-1/8 in. (156 mm)
