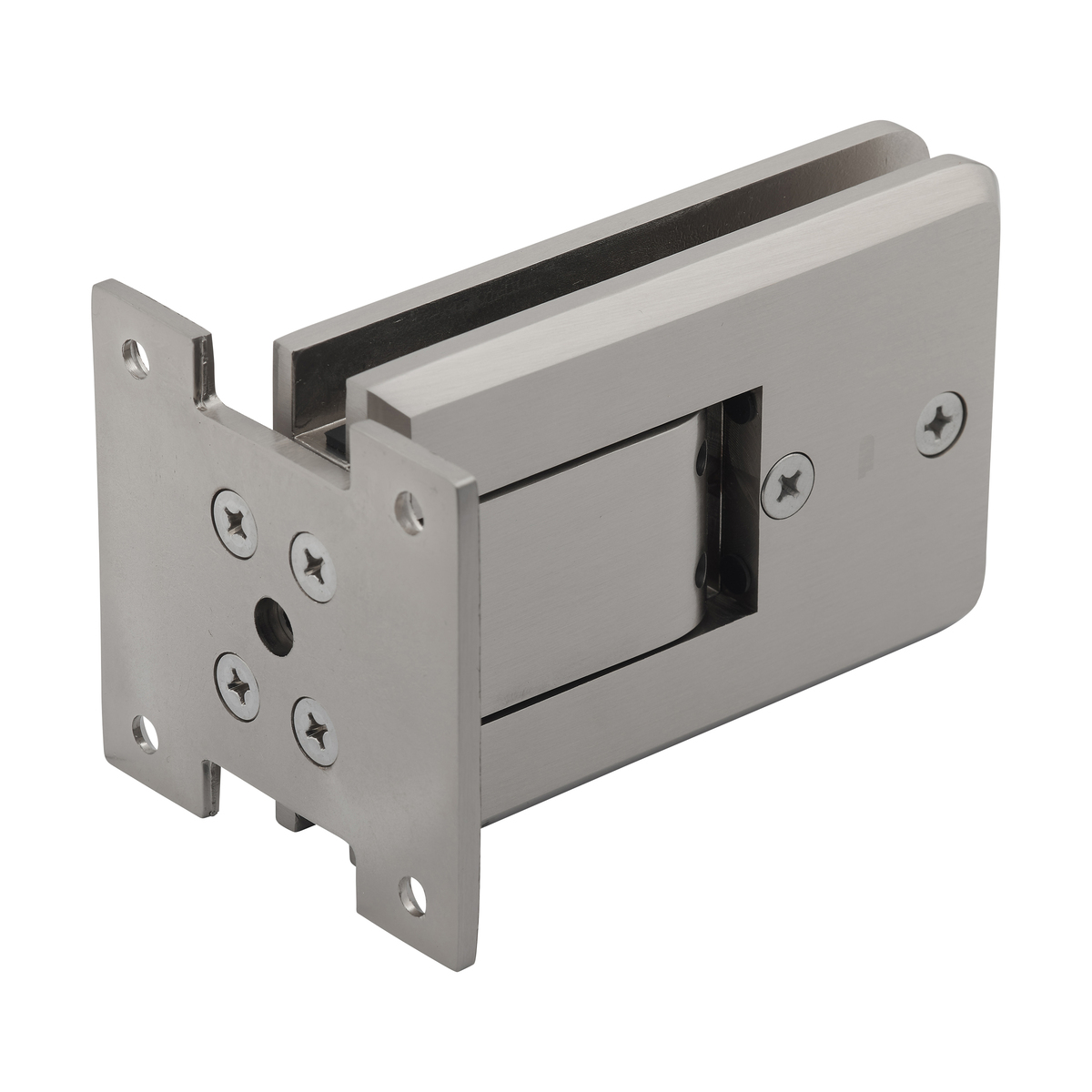

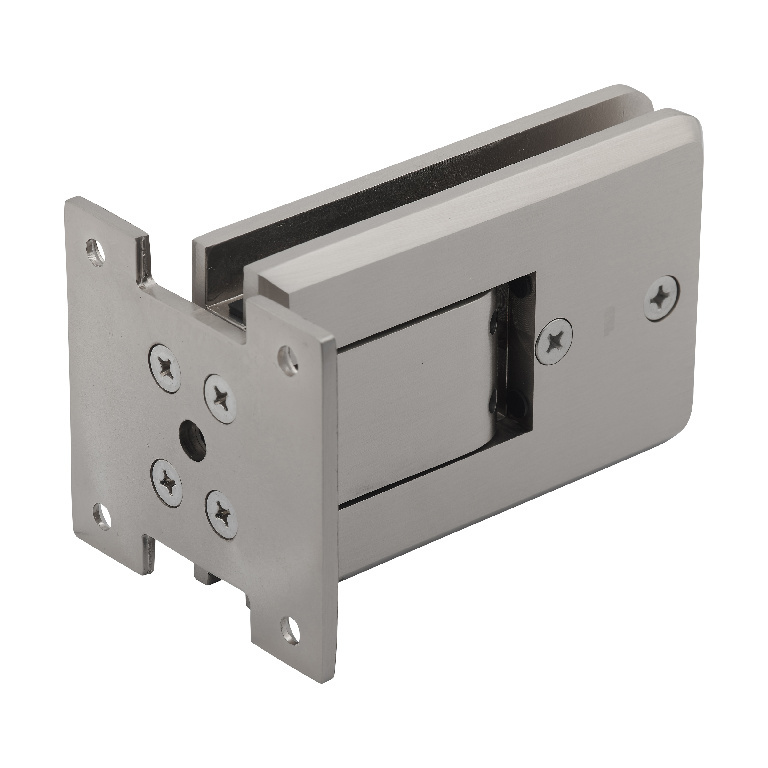

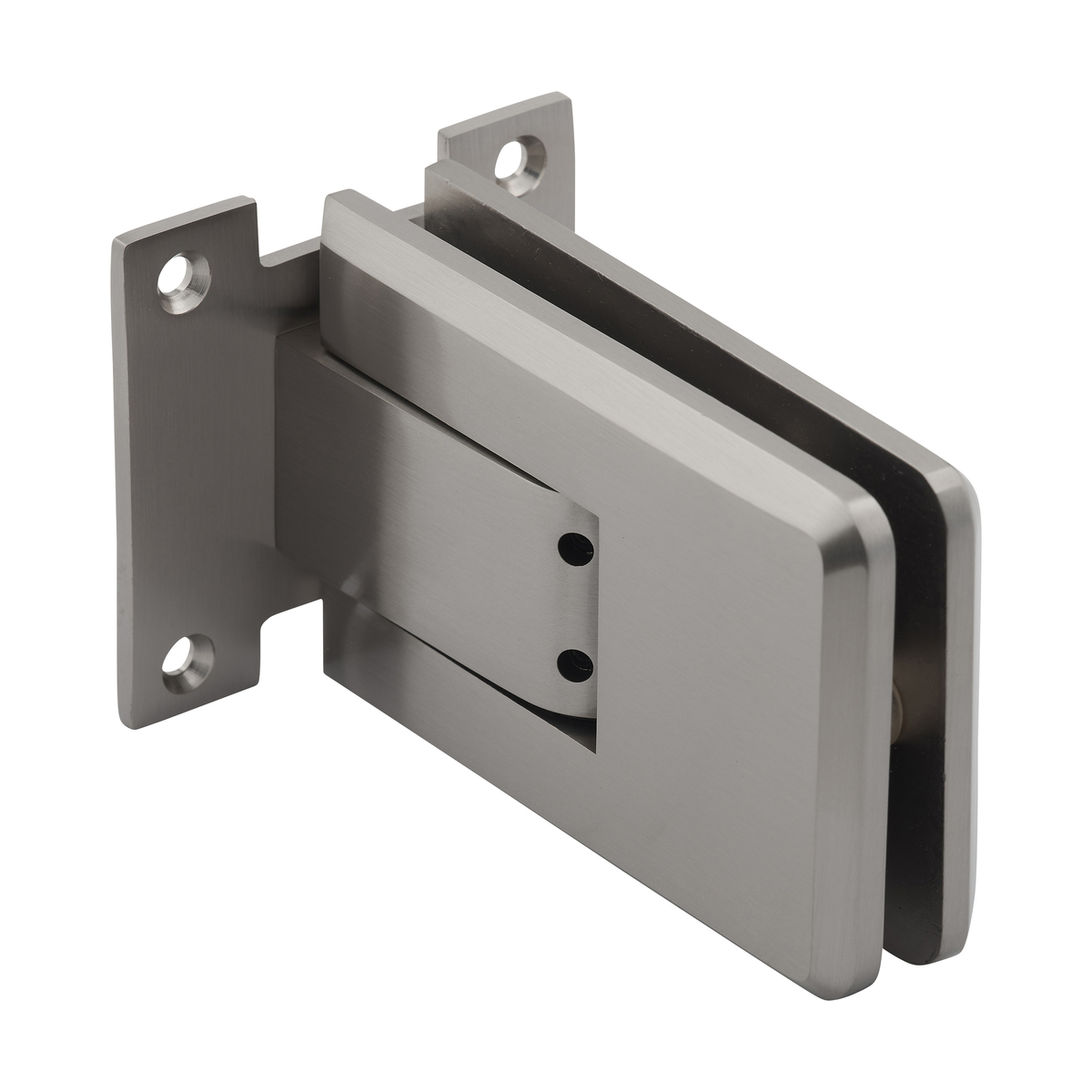

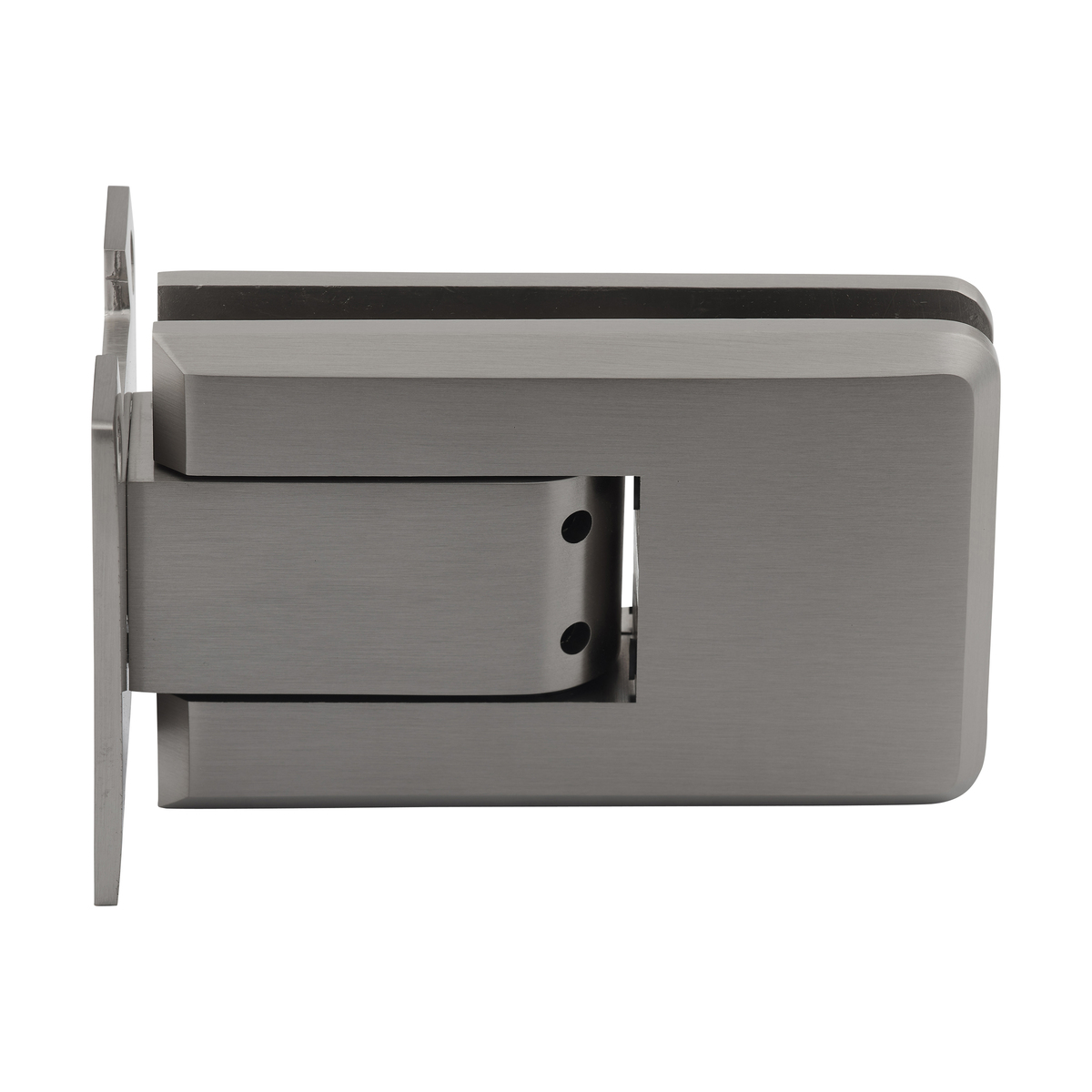

CRL ATL01BN Brushed Nickel Atlas Glass Door Hinge

CRL ATL01BN Brushed Nickel Atlas Glass Door Hinge

C.R. Laurence ATL01BN Brushed Nickel Atlas Glass Door Hinge offers a sophisticated solution for modern glass door applications. This innovative hinge features a self-centering function that eliminates the need for a closer mechanism, ensuring effortless operation from any position. Designed for use with monolithic tempered glass, it supports doors and gates weighing up to 140 lbs and measuring a maximum width of 39 inches. The Atlas Hinge holds open at a convenient 90 degrees, making it ideal for high-traffic areas while providing easy-to-set closed positions for both double door and inline panel configurations. Constructed from solid brass with stainless steel components, this hinge is well-suited for environments that may experience excess moisture, ensuring durability and longevity. Available in four architectural finishes, the brushed nickel option adds a refined touch to any interior design. The hinge accommodates glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm) and includes gaskets, Phillips screws, and detailed glass fabrication dimensions. With its robust design and versatility, the C.R. Laurence Atlas Hinge is a perfect choice for residential and hotel shower applications, delivering both style and functionality.

Brushed Nickel Atlas Glass Door Hinge

• Self-Centering Function
• Hold Open at 90 Degrees
• Use Monolithic Tempered Glass
• Easy to Set Closed Position
• Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
• Easy Closed Position Adjustment for Double Door or Inline Panel Applications
• Four Architectural Finishes

This innovative CRL Atlas Series 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).


The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.

The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.

NOTE: Do not exceed two Hinges per door.

Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;
Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
