CRL ATL01MBL Matte Black Atlas Glass Door HingeC.R. Laurence ATL01MBL Matte Black Atlas Glass Door Hinge offers a sophisticated solution for modern interiors, combining style and functionality. Designed for monolithic tempered glass doors, this hinge features a self-centering function that eliminates the need for traditional closer mechanisms, allowing the door to return to a closed position from any angle. It holds open at a full 90 degrees, providing convenient access while maintaining stability. Constructed from solid brass with stainless steel components, the Atlas hinge is resilient against moisture, making it ideal for residential or hotel shower settings. Its adjustable spring strength allows for easy customization of the closed position, accommodating both double door and inline panel applications. This hinge supports glass thicknesses ranging from 5/16" to 1/2" (8 mm to 12 mm) and can handle a maximum door weight of 140 lbs when using two hinges. With a height of 3-9/16" (90 mm) and a width of 5-7/8" (149 mm), it seamlessly integrates into your design, offered in five architectural finishes to suit various aesthetics. For optimal performance, it’s important to follow the included template for installation. Elevate your interior space with the durable and stylish C.R. Laurence Matte Black Atlas Glass Door Hinge.

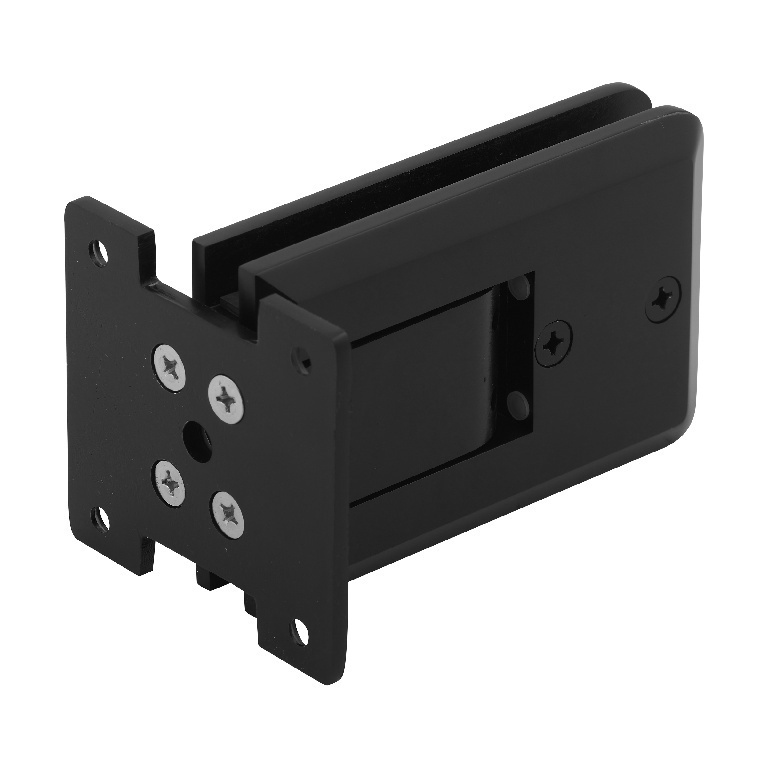

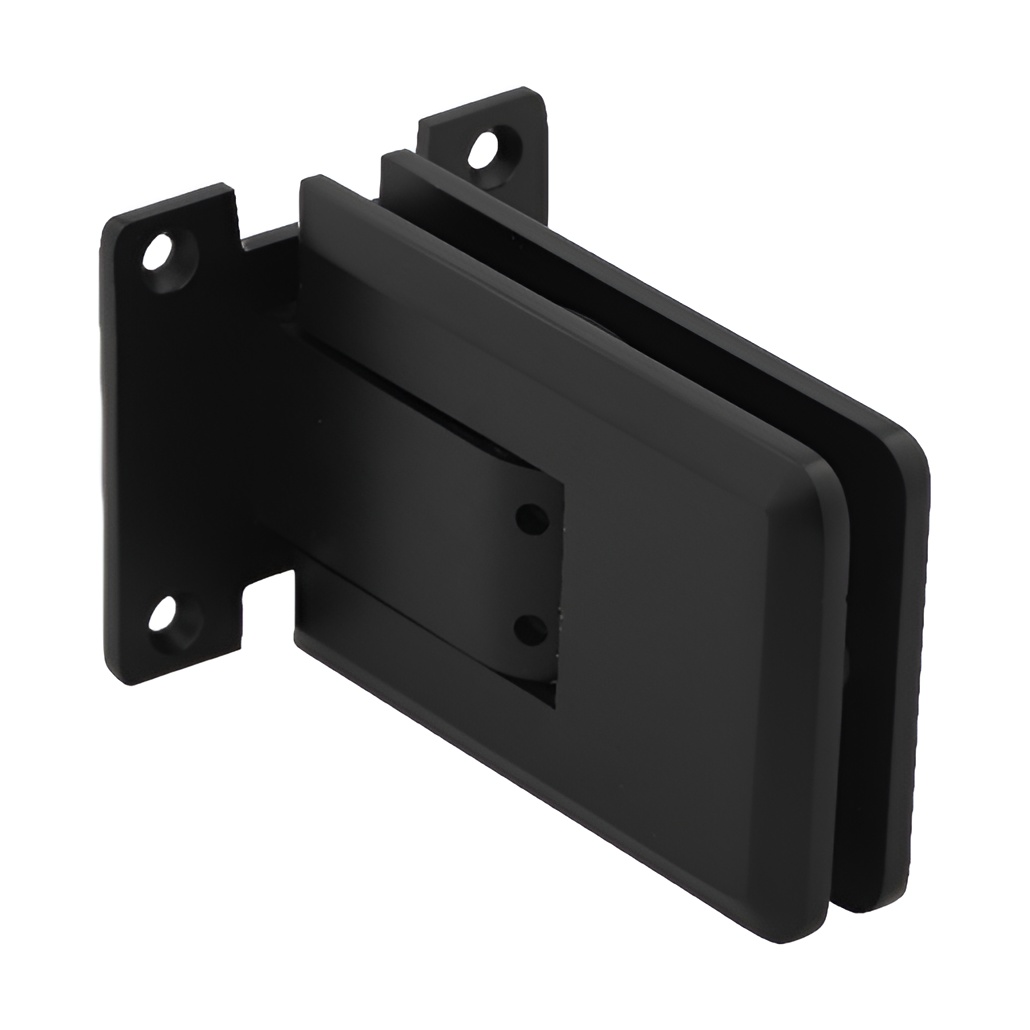

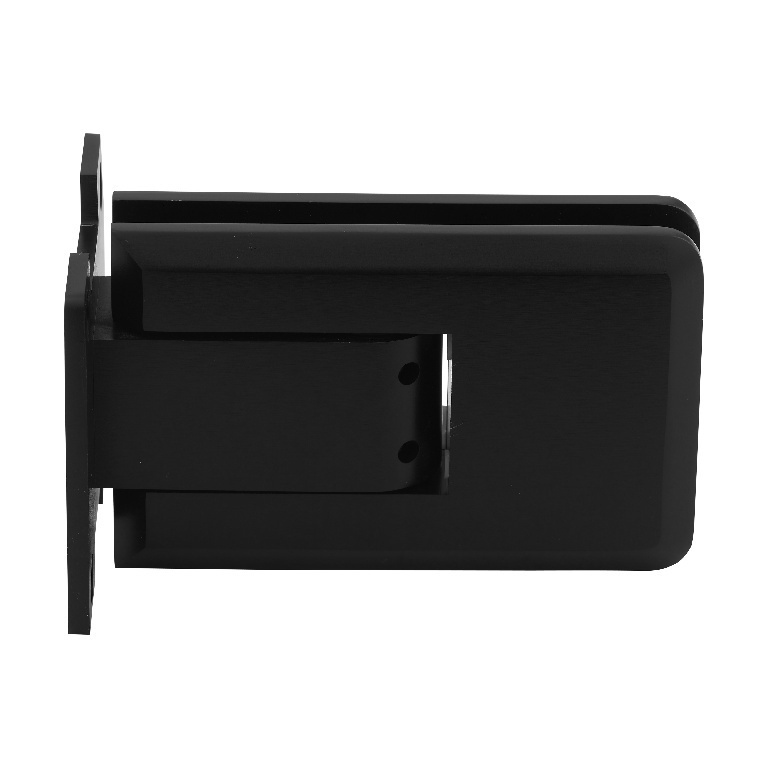

Matte Black Atlas Glass Door Hinge
- Self-Centering Function
- Hold Open at 90 Degrees
- Use Monolithic Tempered Glass
- Easy to Set Closed Position
- Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
- Easy Closed Position Adjustment for Double Door or Inline Panel Applications
- Five Architectural Finishes
The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.
The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.
NOTE: Do not exceed two Hinges per door.
SPECIFICATIONS:
Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable: Yes
Back Plate: Full
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Matte Black
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Height: 3-9/16 in. (90 mm)
Material: Brass
Maximum Door Weight - 2 Hinges: 140
Maximum Door Width: 39 in. (991 mm)
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Atlas
Shipping Limitations: None
Width: 5-7/8 in. (149 mm)
