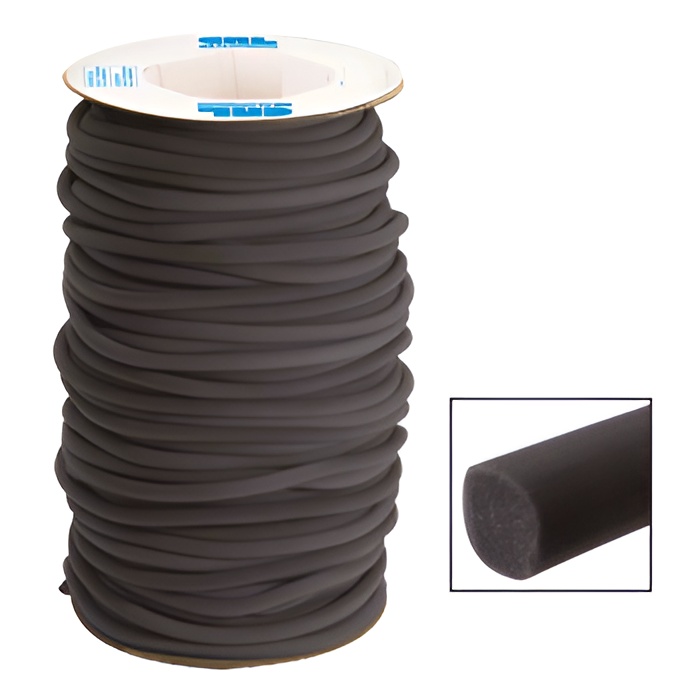

CRL B0CBR58 Black 5/8" x 1400' Open Cell Backer RodC.R. Laurence B0CBR58 Black 5/8" x 1400' Open Cell Backer Rod is an essential tool for ensuring the integrity of sealant applications. This soft, round, and easily compressible polyurethane foam is specifically designed for versatility in joint variations, making it ideal for repairs in existing joints. Its open cell structure eliminates the risk of sealant failures caused by outgassing, commonly encountered with closed cell backer rods. The black color of the backer rod discreetly blends into various joint applications, enhancing aesthetic appeal. Engineered to perform well in temperatures ranging from -65°F to 400°F, this backer rod is highly compatible with high-performance sealants such as silicones and urethanes. Proper sizing is crucial; it should be oversized by 50% to ensure a tight fit, control sealant depth, and serve as a bond breaker. Installation is straightforward, but it requires clean and dry joints for optimal adhesion. Use a blunt tool or roller to insert the backer rod at the depth recommended by the sealant manufacturer, allowing for the ideal hourglass shape that extends sealant life. Packaged conveniently on spools, the C.R. Laurence B0CBR58 Open Cell Backer Rod is a reliable choice for vertical wall joints, providing durability and performance in every application.
5/8" Open Cell Backer Rod - 1400 Foot Roll
- Controls Sealant Depth and Functions as an Effective Bond Breaker
- Compatible with All Cold-Applied and Hot-Pour Sealants
- Soft Material Allows for Easy Compression During Installation
CRL Open Cell Backer Rod is a soft, round, and highly compressible polyurethane foam designed to back cold-applied sealant joints, or hot-pour sealants. Its open-cell structure allows it to flex and adapt to irregular or damaged joints without being affected by dynamic joint movement or stress.
CRL Open Cell Backer Rod is available for purchase in the following diameters – 5/8" to 2" (16 to 51 mm).
Unlike closed-cell rods, it eliminates the risk of outgassing when punctured, making it ideal for high-performance sealants like silicones and urethanes.
Temperature Limits:
-60° to +500°F (-15° to +260°C)
Application:
Best used in vertical and horizontal wall joints. Not recommended for horizontal traffic surfaces such as pavement joints.
Size Selection:
When choosing a CRL Open Cell Backer Rod, it is important for proper size selection as it controls the depth of the sealant bead and acts as a bond breaker to prevent back-side adhesion. It must be oversized approximately 50% wider than the joint to ensure a tight fit.
Storage:
Store in a well-ventilated are. Do not store products in direct sunlight. Keep away from heat sources and open flames.
Joint Preparation:
- New Joints: Clean thoroughly to remove form-release agents, curing compounds, or debris. Ensure the joint is clean and dry before applying sealant.
- Repairing Old Joints: Remove all old sealant or filler. Use wire brushing and air blasting for effective cleaning. If using an air compressor, ensure it has moisture and oil traps.
Installation Instructions:
- Prepare the surface by following the Joint Preparation directions.
- Measure and Select: Choose the correct backer rod size based on the joint width.
- Set Depth: Install the backer rod at the depth recommended by the sealant manufacturer, ensuring the sealant forms an "hourglass" shape.
- Use the Right Tools: Install with a blunt tool or roller. The Cat. No. T607CU605 or Cat. No. SBRR for smooth installation.
THE PRODUCT CAN COME IN DIFFERENT SHADES / TONES, BUT THIS WILL NOT AFFECT THE OVERALL PERFORMANCE OF THE PRODUCT.
Product Warning:
Not suitable for horizontal traffic joints—use only in vertical wall joints. Do not use with hot-applied sealants.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black
Rod Diameter: 5/8 in. (16 mm)
Roll Length: 1400 ft.(427 m)
Shelf Life: 12 Months
Shipping Limitations: None
Type: Open Cell
