CRL B1R15 Birmingham Slim Line Locking Handle

CRL B1R15 Birmingham Slim Line Locking Handle

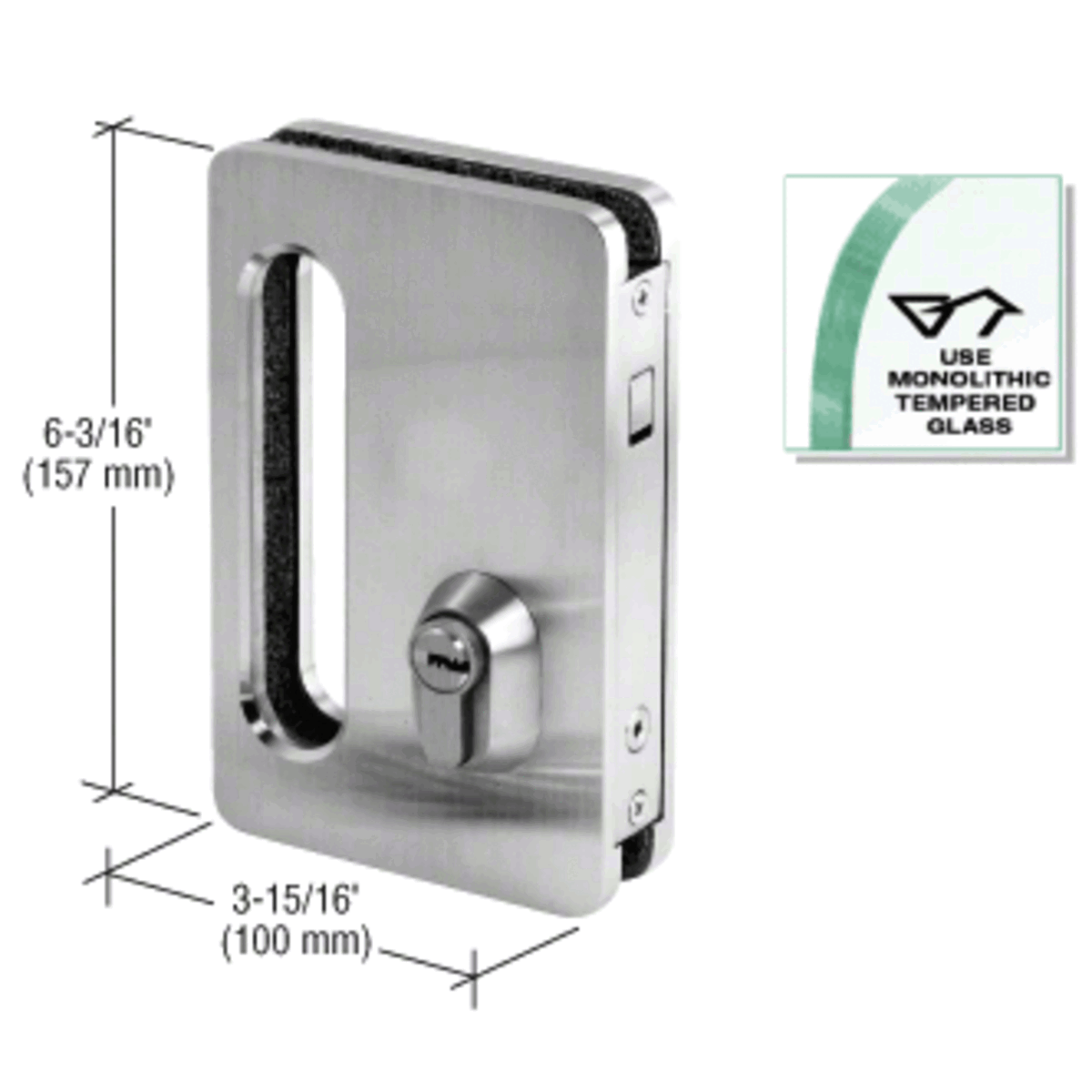

C.R. Laurence B1R15 Birmingham Series Slim Line Locking Handle enhances the security and functionality of bi-fold systems with its sleek design and robust construction. Crafted from solid stainless steel, this handle features a European-style lock, ensuring reliable protection for your interior spaces. Designed for use with 3/8" or 1/2" (10 or 12 mm) tempered glass, it accommodates panels weighing up to 110 lbs. (50 kg), making it suitable for various applications. The brushed stainless steel finish adds a touch of modern elegance, while the keyed exterior and thumbturn interior make operation simple and secure. A hook latch ensures the bi-fold panels are firmly secured, and a jamb-mounted strike plate is included for added convenience. For glass-to-glass installations, a matching Receiver Handle (Cat. No. B1R16) is available separately. This locking handle is designed for interior use only and requires a notch in the glass panel for proper installation. With its compatibility with the CRL Birmingham Bi-Folding Top Hung Door System, you can easily create a functional and stylish opening in both commercial and residential settings. Whether you are upgrading an existing system or installing a new one, the B1R15 is an excellent choice for enhancing security and aesthetics.

Birmingham Series Slim Line Locking Handle

• Solid Stainless Steel
• European Style Lock
• For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
• For Interior Use Only
• Rated for Panels Up to 110 Lbs. (50 kg)

This CRL Birmingham Series Slim Line Locking Handle provides added security to the bi-fold system. Available in brushed stainless steel finish, they are keyed outside with a thumbturn inside, and have a hook latch for securing the bi-fold panel. A jamb mounted strike plate is included. For glass-to-glass applications there is a matching Receiver Handle (Cat. No. B1R16, ordered separately). A notch in the glass panel is required.


The CRL Birmingham Bi-Folding Top Hung Door System features corner patches to create a modern and elegant look. It can accommodate from two to twelve panels that can be bi-folded to one side or bi-part, with a maximum of six panels to a side. The systems are easy-to-install and a cost-effective solution for commercial or residential interior applications.

There are three kits available from stock: 2 x 2 Bi-Folding, a three panel Bi-Folding, and a four panel Bi-Folding. All with everything you need to complete the installation, except for the glass and the fasteners going into the substrate. However, the combinations do not stop there, you can easily add additional fittings to create the desired configuration of your choice, providing it meets system limitations.

Panels are hinged together with alloy 304 stainless steel patches and suspended from the satin anodized aluminum top track by heavy-duty rollers. Similar patches are used at the midpoint of the panels to ensure safe operation on openings taller than 104" (2.6 m).

Matching bottom patches with guide pins slide inside a floor mounted continuous channel maintaining proper alignment of the panels as they fold open and closed.

Maximum panel weight of 110 lbs. (50 kg), with a maximum width of 29" (737 mm) and maximum height of 118" (3 m). Fittings can accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass and require two holes per door, per fitting, and notches for the center lock housings. The top and bottom tracks come in 118" (3 m) lengths.

Optional Slim Line Locking Handles and Receiver Handles are available.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Stainless Steel Advisory:

Resources

• Birmingham Bi-Folding Series System CAD Drawings.dwg
• Birmingham Bi-Folding Series System CAD Drawings.pdf
• Birmingham Series Installation Instructions
• CRL Stainless Steel Disclaimer
