CRL B5L20D6 B5L Series 240" Low Profile Aluminum Base Shoe for 1/2" to 5/8" Glass

CRL B5L20D6 B5L Series 240" Low Profile Aluminum Base Shoe for 1/2" to 5/8" Glass

C.R. Laurence B5L20D6 240" B5L Series Low Profile Square Aluminum Base Shoe is expertly designed for use with 1/2" to 5/8" thick monolithic tempered glass, making it an ideal choice for glass railing systems and windscreens. This base shoe is pre-drilled in convenient 10' and 20' lengths, ensuring ease of installation and a clean finish. Its low-profile design is particularly suited for residential and yacht applications, offering a sleek, unobtrusive aesthetic. Engineered specifically for the Wet Glaze System, the B5L Series Base Shoe allows for secure attachment to substrates, which is crucial for structural integrity. The product comes with a variety of drilling patterns and fastening methods tailored to enhance its performance. Custom cutting and mitering services are available to meet unique project specifications. It’s important to note that this base shoe cannot be used with the TAPER-LOC® Dry Glaze System. Additionally, while the base shoe can be powder coated, direct powder coating is not recommended-cladding should be applied instead. With a length of 240 inches and made from durable aluminum, the B5L Series Base Shoe combines functionality with a refined look, making it a dependable choice for any glass installation project.

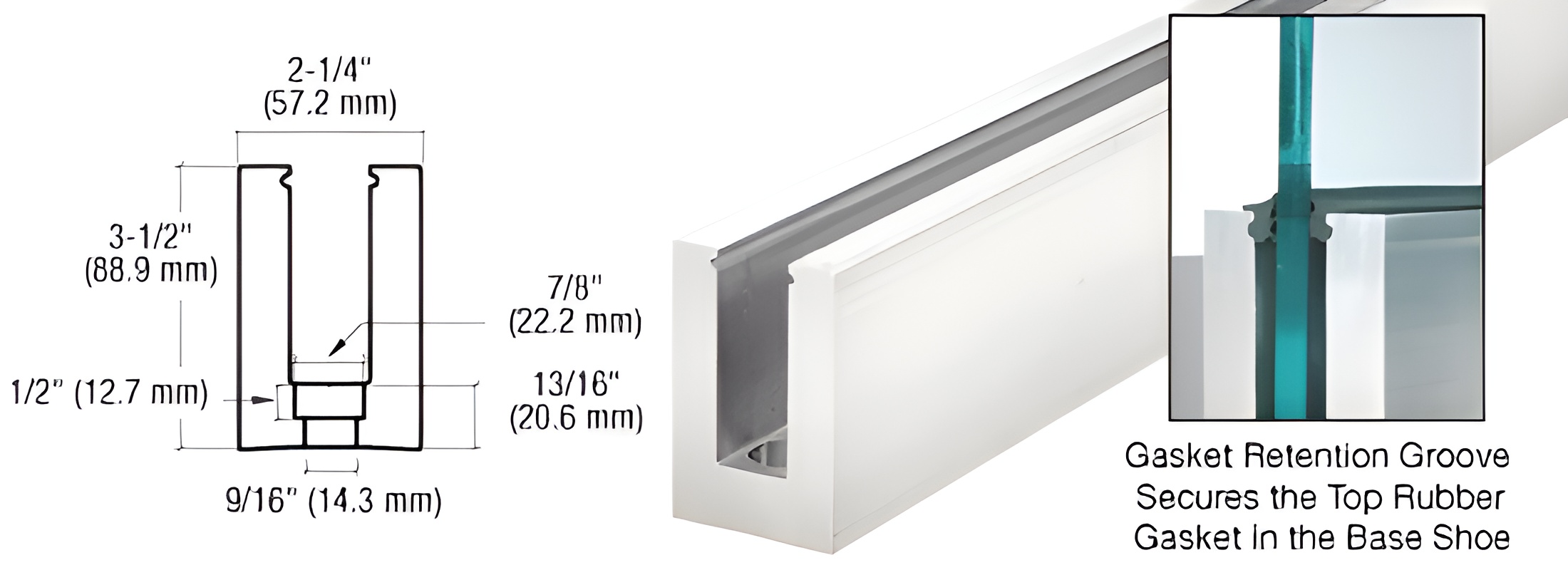

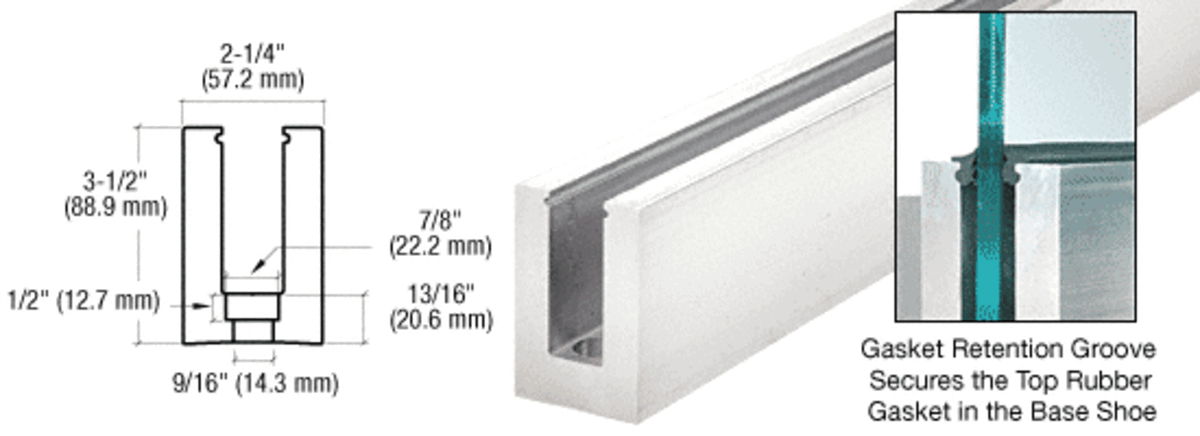

240" B5L Series Low Profile Square Aluminum Base Shoe Drilled for 1/2" to 5/8" Glass

• For 1/2" to 5/8" (12 to 16 mm) Monolithic Tempered Glass
• Pre-Drilled in 10' and 20' Lengths
• Lower Profile Desired in Residential and Yacht Applications
• Typically Used as the Base Channel for Glass Railing Systems or Windscreens
• Custom Cutting and Mitering Service Available

The CRL B5L Series Custom Low Profile Square Aluminum Base Shoe is used as the base channel for glass railing systems. It can be clad in several choices of architectural finishes. The Low Profile Square Aluminum Base Shoe is for use with the Wet Glaze System only. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners.


GLASS SPECIFICATIONS:
1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using the Wet Glaze System.
Low Profile Square Base Shoe cannot be used for the TAPER-LOC® Dry Glaze System.

SHIPPING NOTE: Due to the difficulty in packaging and handling 20' (6.1 m) stock lengths, it is suggested that you Will Call these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.


Product Warning:

1/2" or 5/8" (12 or 16 mm) Thick glass when using Wet Glaze System. Caution: Low Profile Square Base Shoe cannot be used for the Wedge Dry Glaze System. CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.

All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
