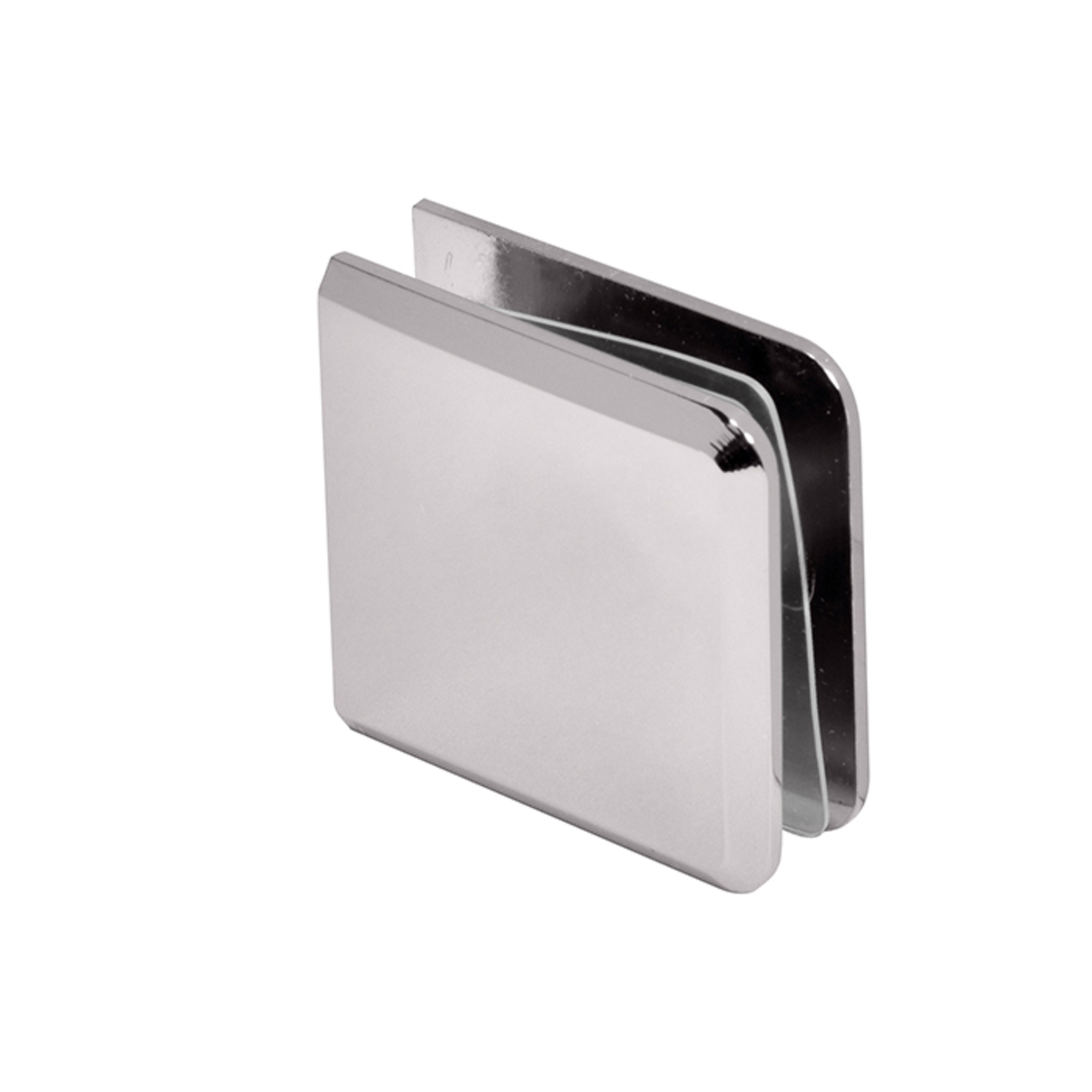

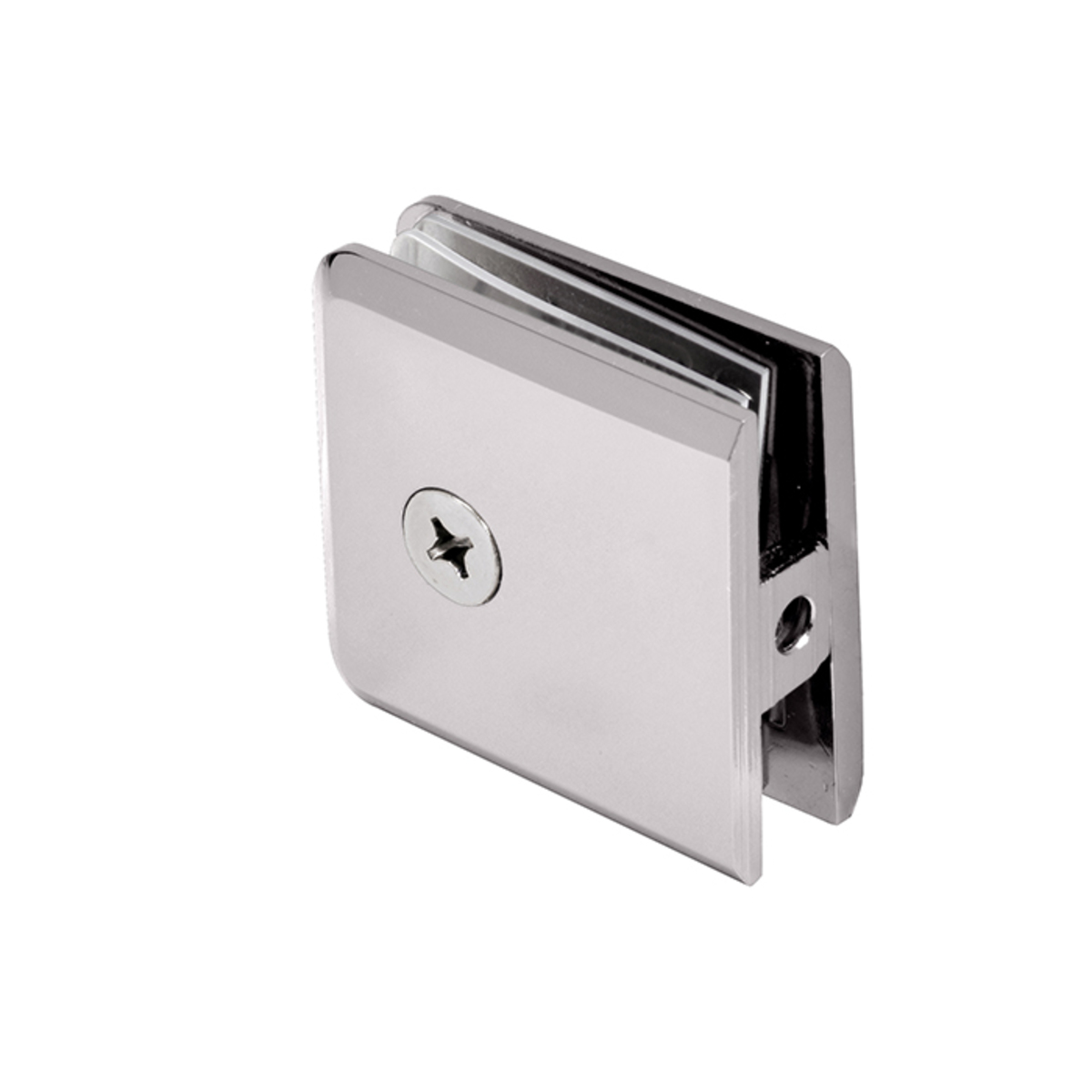

CRL BCU4PN Polished Nickel Heavy-Duty Beveled Glass Clamp Wall Mount

C.R. Laurence BCU4PN Polished Nickel Beveled Hole-in-Glass Style Wall Mount Heavy-Duty Glass Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for use with monolithic tempered glass, this clamp accommodates glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm) and features a sleek polished nickel finish that enhances the overall aesthetic of any installation. Constructed from solid brass, the BCU4PN clamp provides durability and strength, making it a reliable choice for both residential and commercial projects. This beveled wall mount clamp is an attractive alternative to traditional U-channel systems, contributing to an 'all-glass' look that elevates the design of your space. The clamp mounts directly to walls, ceilings, or floors, with a clearance of 3/16" (5 mm) between the glass and the mounting surface. Glass fabrication is required to accommodate the clamps, specifically 3/4" (19 mm) holes for proper installation. Each set includes mounting screws and gaskets, ensuring a complete and secure setup. With its combination of style and functionality, the C.R. Laurence BCU4PN clamp is an essential component for modern glass applications.

Polished Nickel Beveled Hole-in-Glass Style Wall Mount Heavy-Duty Glass Clamp

• For 3/8" to 1/2" (10 to 12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

Resources

• BCU4 Detailed CAD Drawing.dwg
• BCU4 Detailed CAD Drawing.pdf
• BCU4 Template
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
