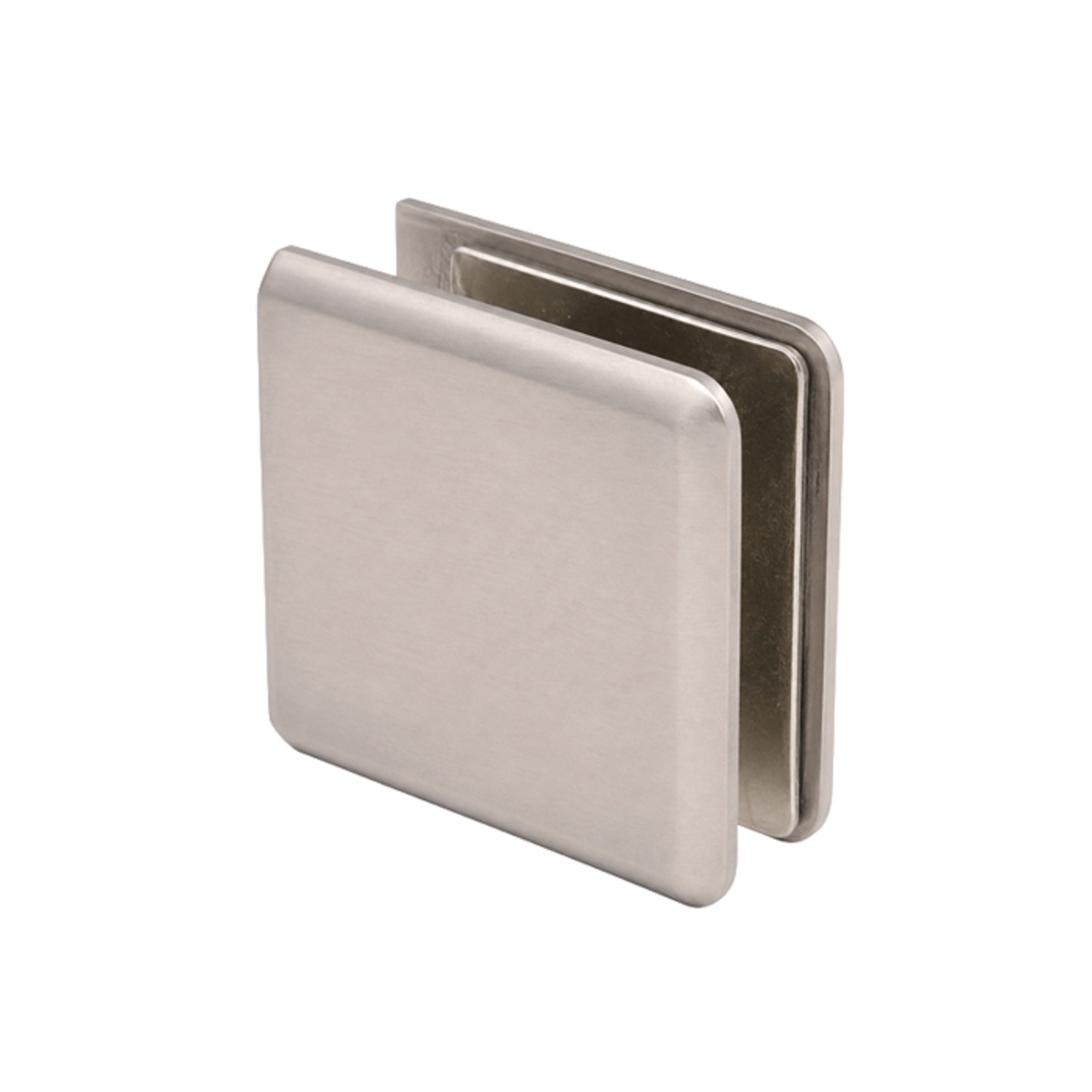

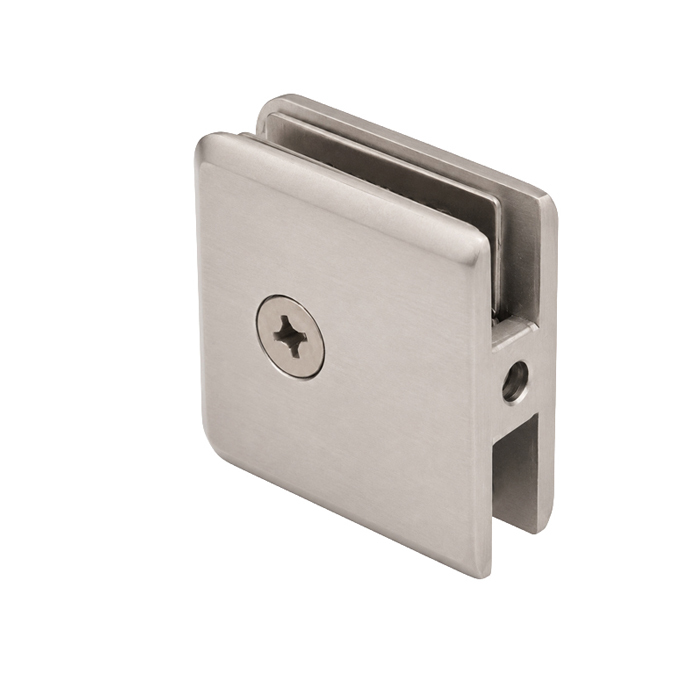

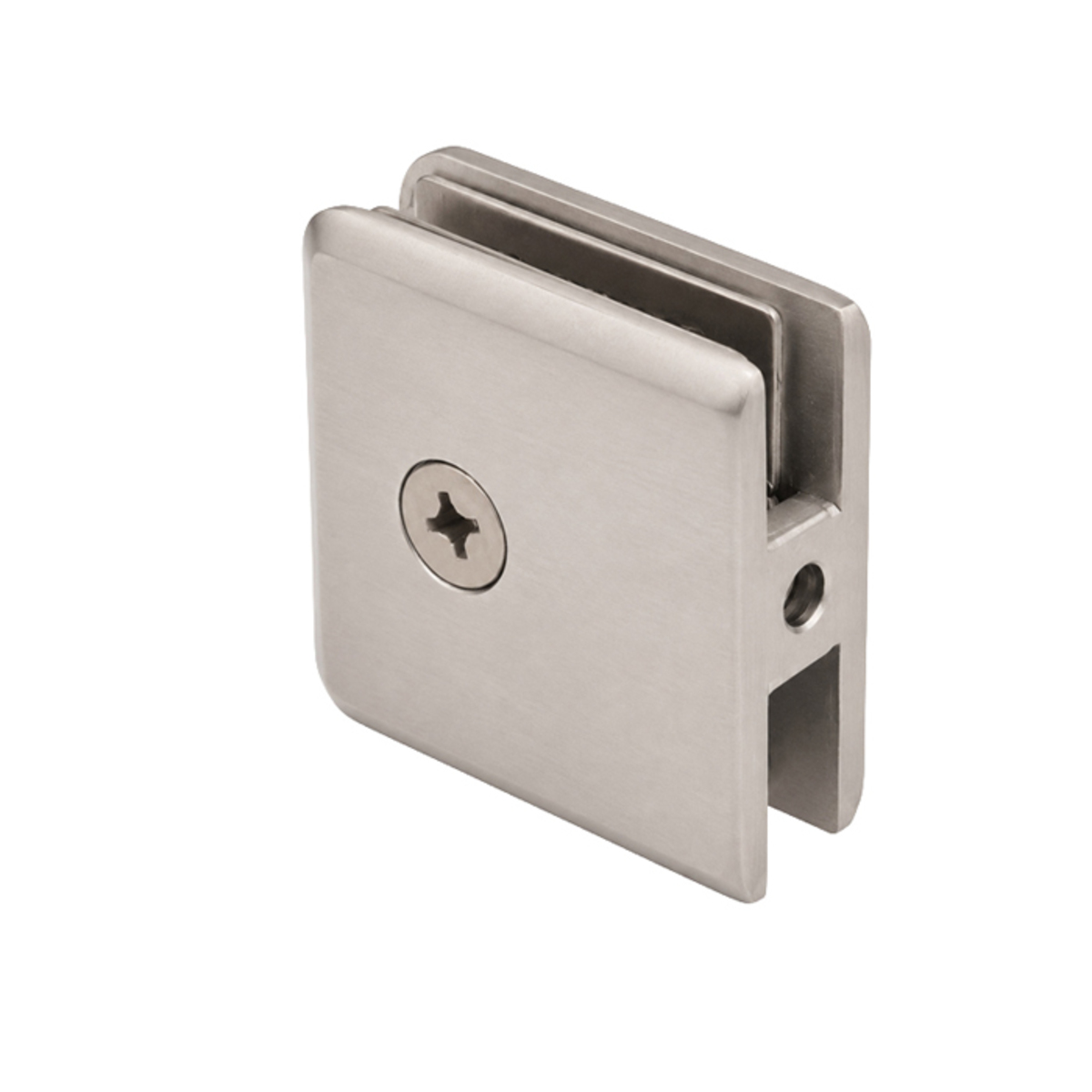

CRL BCU4SN Satin Nickel Beveled Heavy-Duty Wall Mount Glass Clamp

C.R. Laurence BCU4SN Satin Nickel Beveled Hole-in-Glass Style Wall Mount Heavy-Duty Glass Clamp is engineered to provide a secure and stylish solution for frameless shower enclosures. Designed for use with monolithic tempered glass ranging from 3/8" to 1/2" (10 to 12 mm) in thickness, this clamp is crafted from solid brass, ensuring durability and a long-lasting finish. The BCU4SN offers a contemporary alternative to traditional U-channel systems by enhancing the 'all-glass' aesthetic of your installation. It mounts directly to the wall, ceiling, or floor, securing vertical fixed glass panels while maintaining a clearance of 3/16" (5 mm) between the glass and the wall. For a clean and water-resistant seal, clear silicone can be applied, making it an ideal choice for wet environments. Installation is straightforward, as the clamp includes mounting screws and gaskets. Please note that glass fabrication is required to accommodate the clamps, with a 3/4" (19 mm) hole needed for installation. The satin nickel finish adds a touch of elegance, making the BCU4SN an attractive option for various enclosure types, including corners, niches, and tailor-made solutions. Elevate your next project with this high-quality wall mount glass clamp from C.R. Laurence.

Satin Nickel Beveled Hole-in-Glass Style Wall Mount Heavy-Duty Glass Clamp

• For 3/8" to 1/2" (10 to 12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

Resources

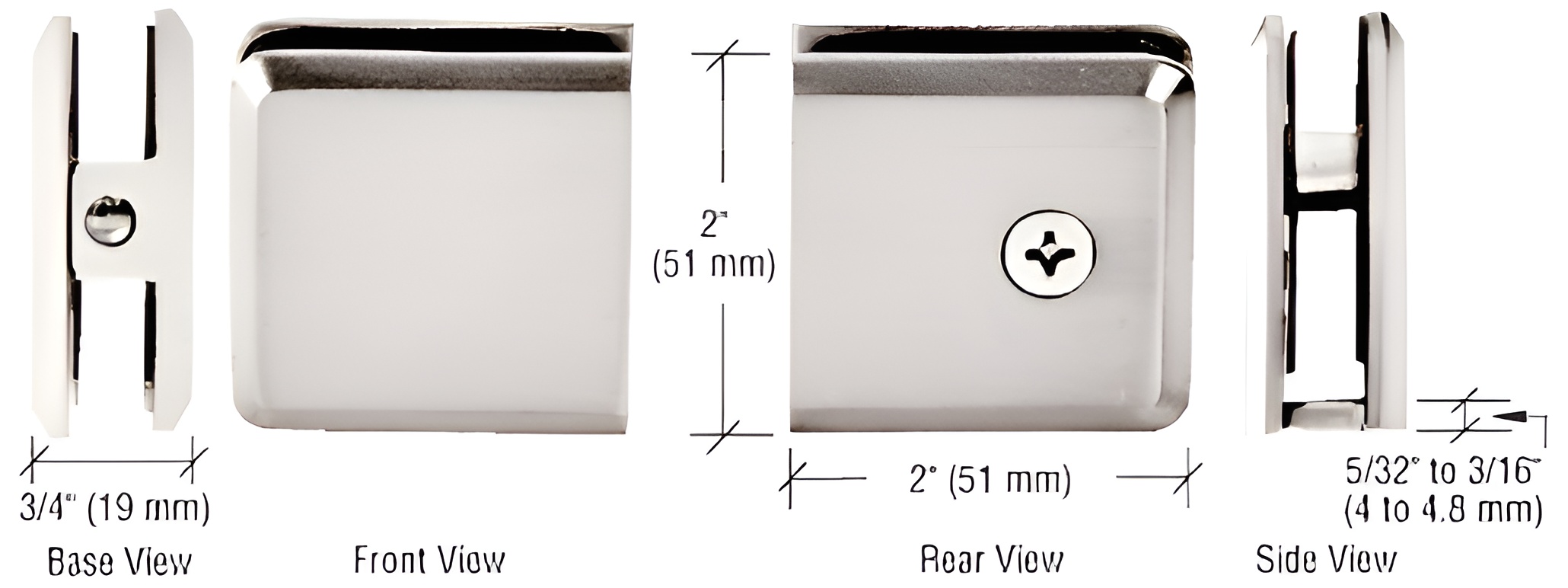

• BCU4 Detailed CAD Drawing.dwg
• BCU4 Detailed CAD Drawing.pdf
• BCU4 Template
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
