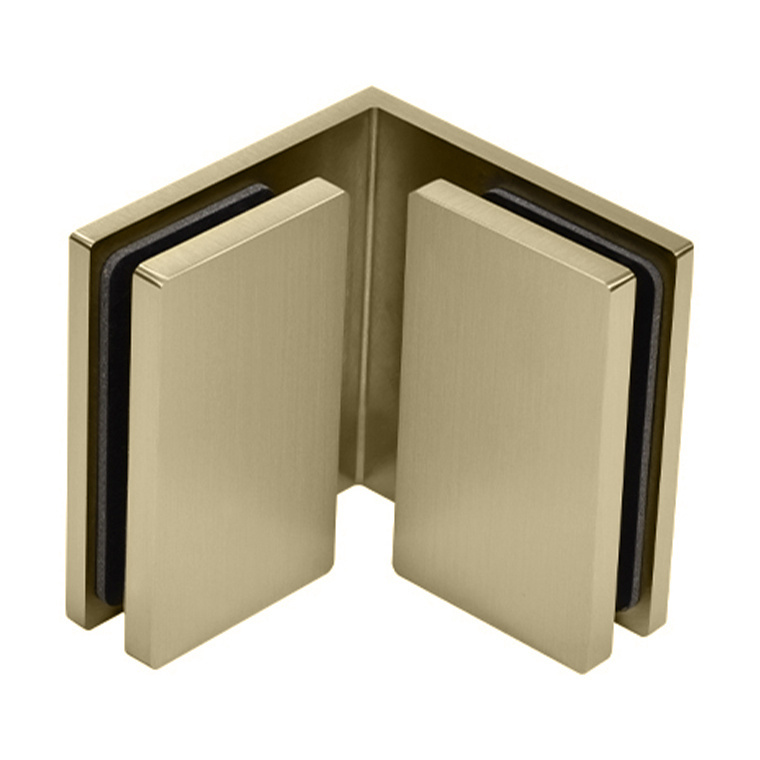

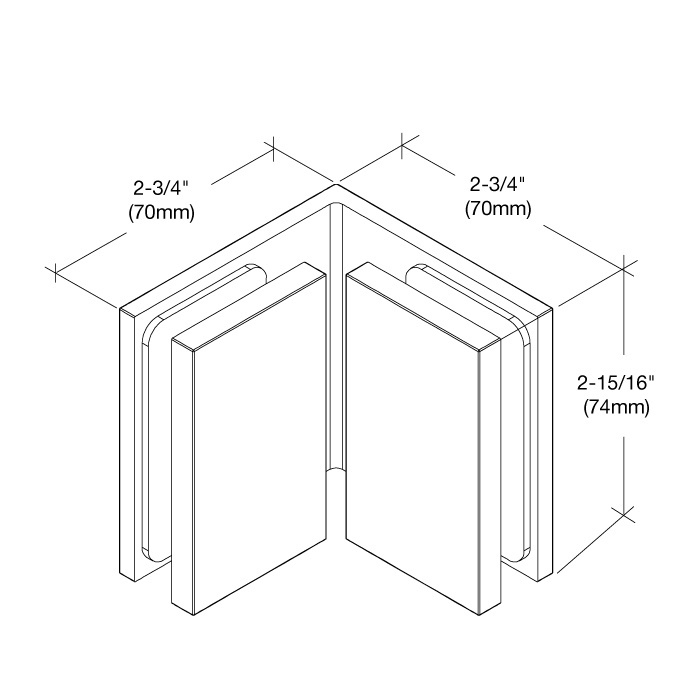

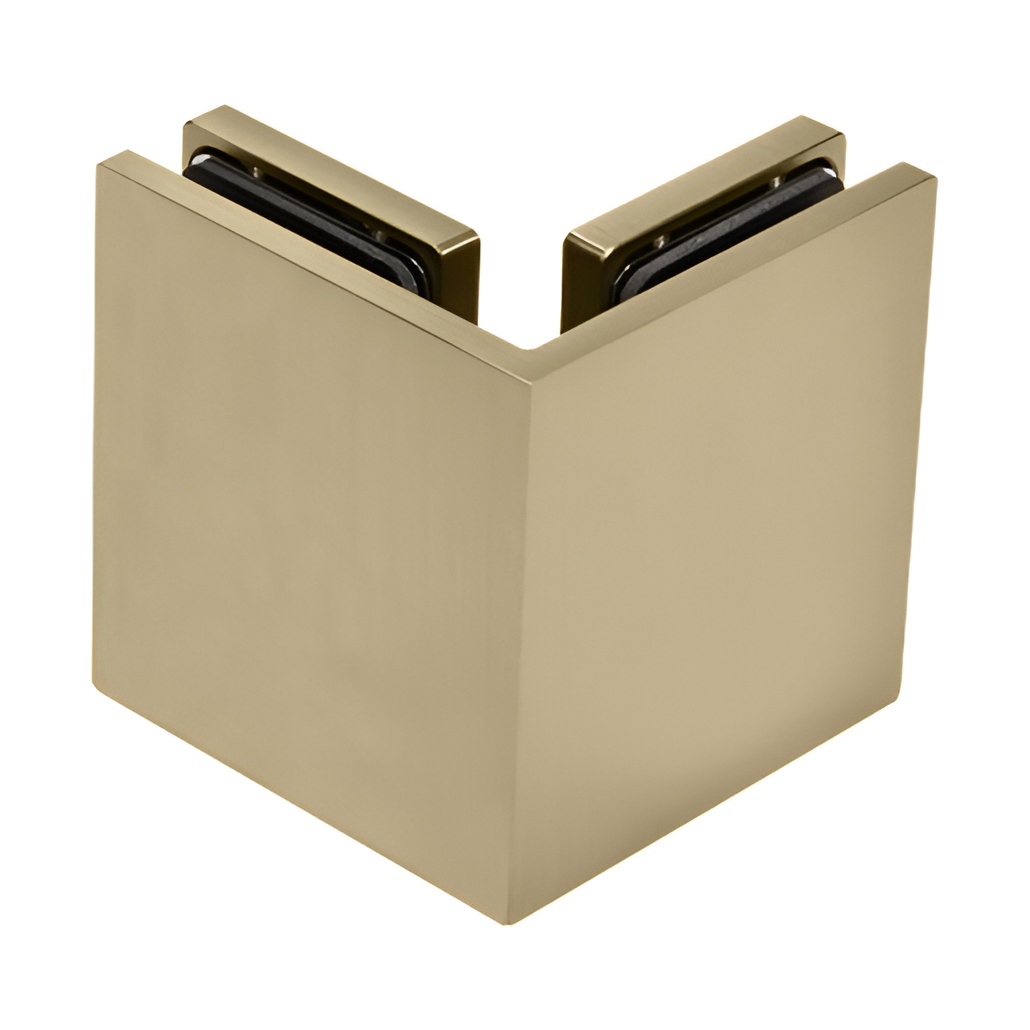

C.R. Laurence BEL090BBRZ Brushed Bronze Bellagio Series Glass-to-Glass Bracket offers a sleek and sturdy solution for your glass installation needs. Designed specifically for 5/16" to 3/8" (8 to 10 mm) tempered glass, this bracket ensures tight gaps that effectively prevent water infiltration, making it an ideal choice for various applications, including corner, niche, and bathtub enclosures. Constructed from solid brass, the BEL090BBRZ not only provides durability but also enhances the aesthetic appeal of your space with its brushed bronze finish. The bracket features a clean design with square corners and edges, complementing the look of matching Bellagio Series hinges available separately. Snap-on covers conceal screws for a polished appearance, maintaining a seamless integration with your glass fittings. Each bracket includes gaskets and mounting screws, requiring only one 5/8" (16 mm) hole per panel for installation. With a height of 2-15/16 inches (75 mm) and a leg length of 2-3/4 inches (69.9 mm), it supports a maximum door weight of 110 pounds and a maximum door width of 39 inches. For custom finishes, CRL's Technical Sales Shower Door Department is ready to assist. Elevate your glass installations with the reliable and stylish Bellagio Series bracket.

Brushed Bronze Bellagio Series Glass-to-Glass Bracket

• Matching Bellagio Series Hinges Available
• For 5/16 to 3/8 (8 to 10 mm) tempered glass
• Tight Gaps Prevent Water Infiltration
• Snap-on Covers Conceal Screws

CRL Bellagio Series 90 Degree Glass-to-Glass Bracket are designed to work with 5/16" to 3/8" (8 to 10 mm) thick glass. thick glass projects. The two mounting screws per panel matches the configuration of many of our most popular hinge series. Continuity of design is maintained by matching the look of the hinges used. They feature square corners and edges in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting CRL Technical Sales Shower Door Department.
