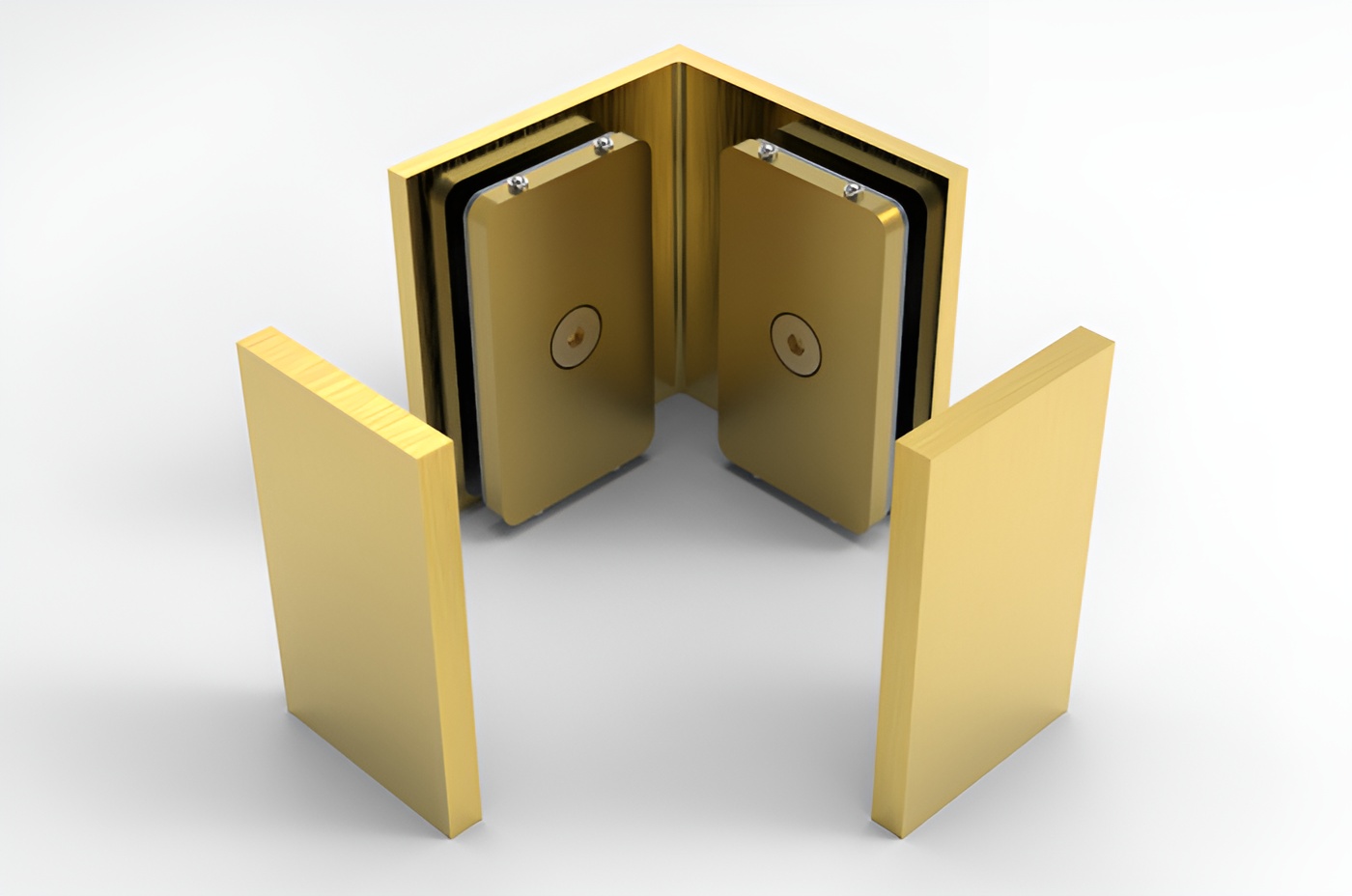

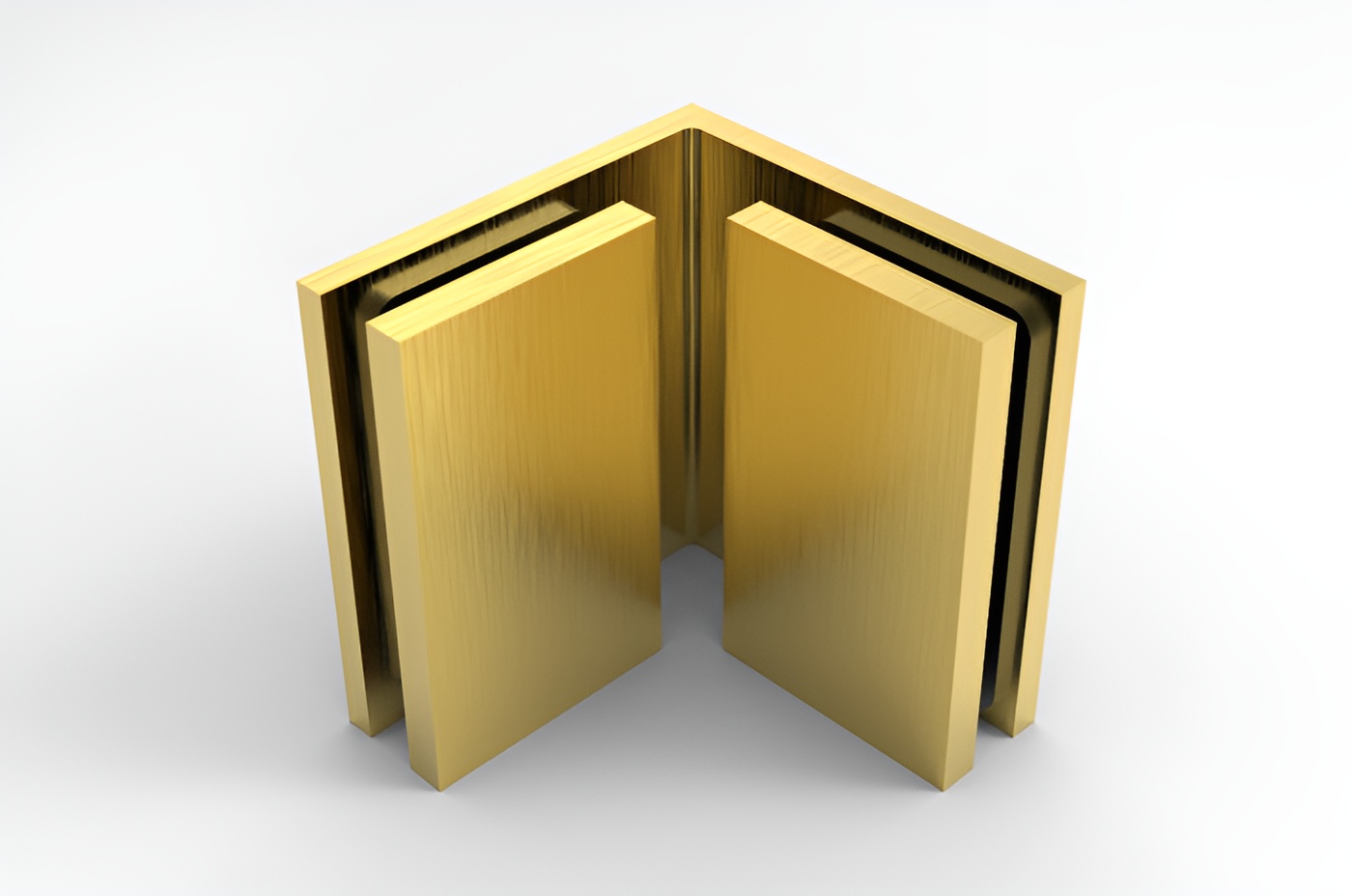

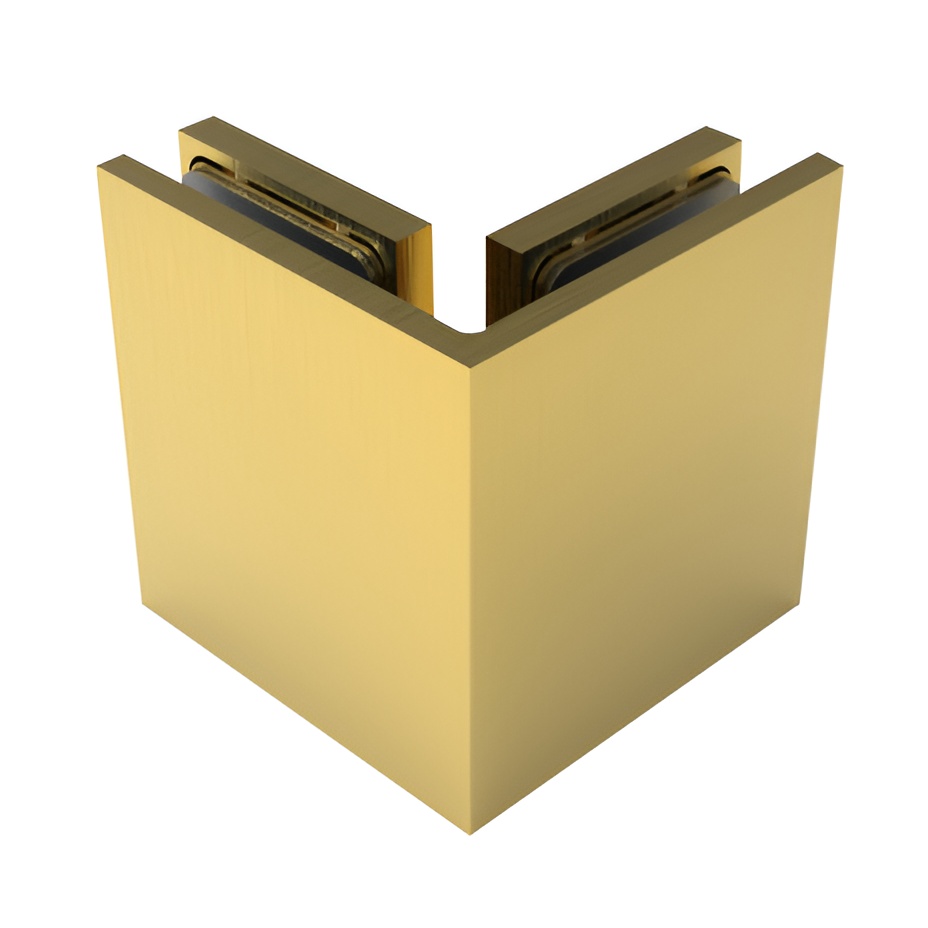

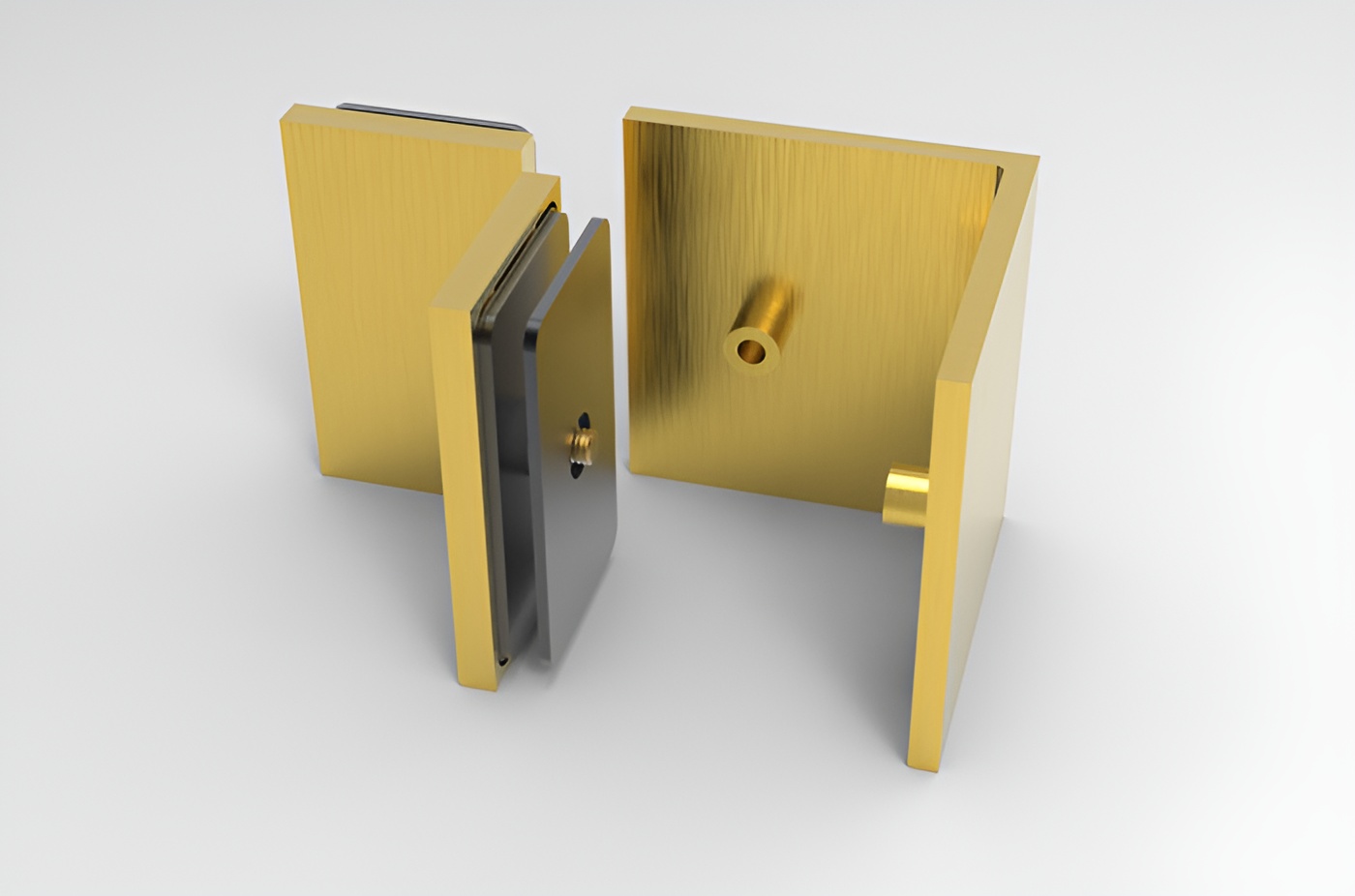

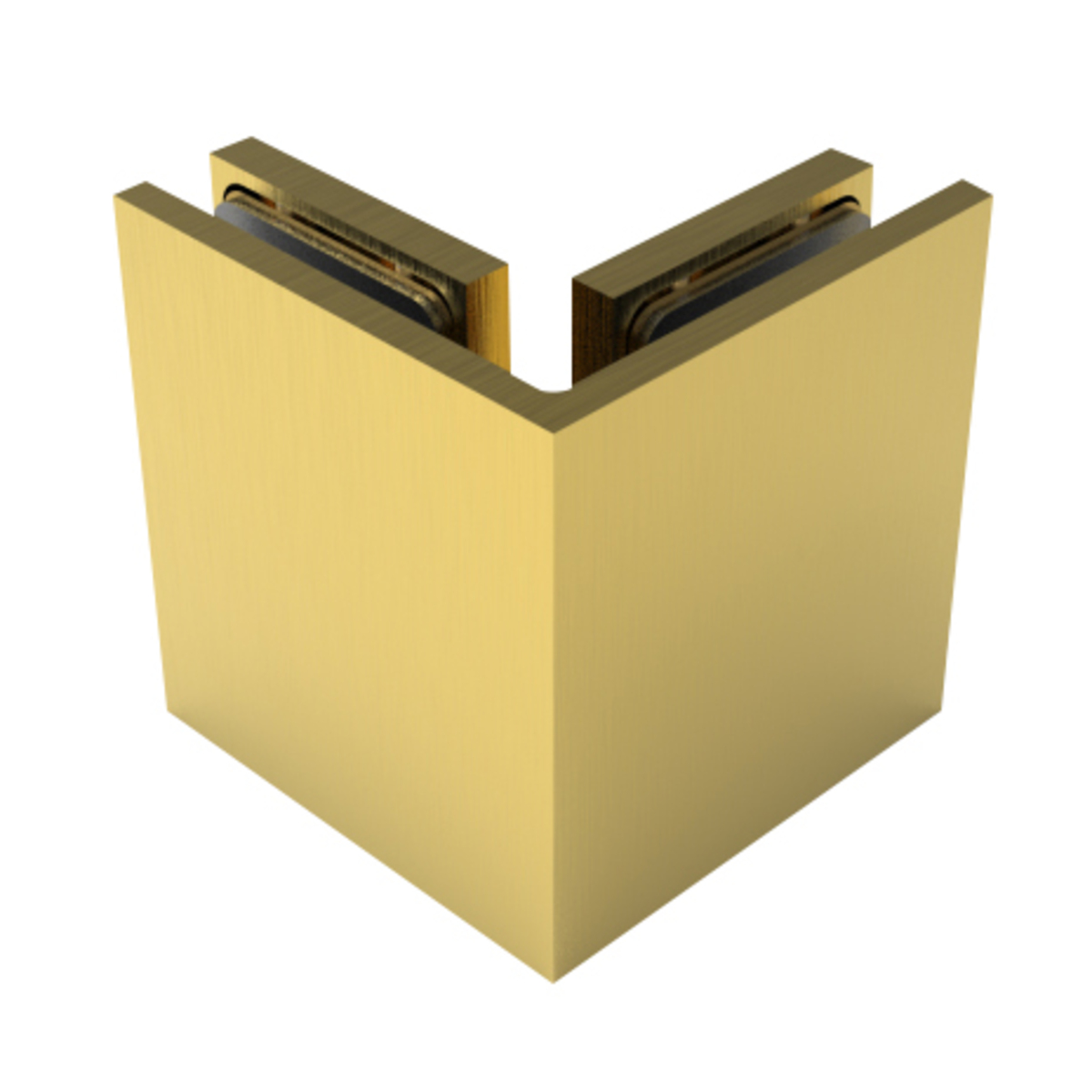

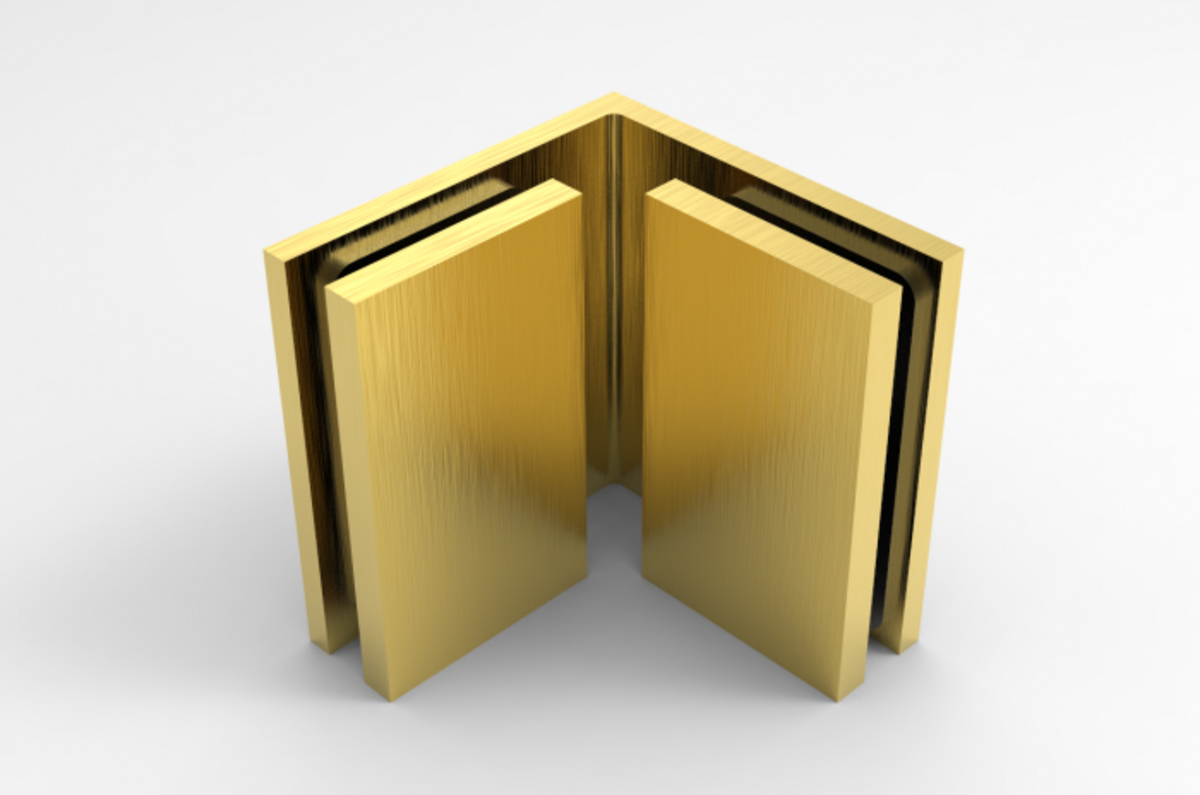

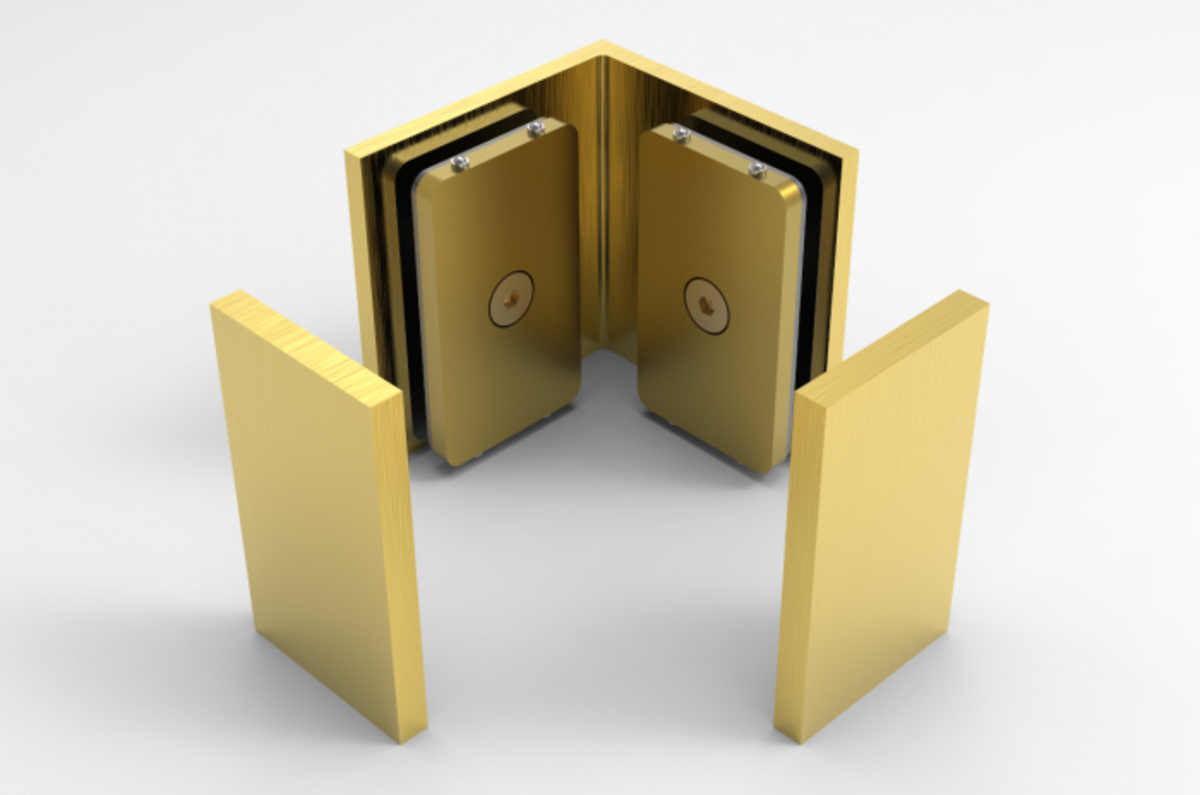

C.R. Laurence BEL090SB Satin Brass Bellagio Series Glass-to-Glass Bracket offers a sophisticated solution for your glass installation needs. Designed to accommodate 5/16" to 3/8" (8 to 10 mm) thick tempered glass, this sturdy bracket features a sleek satin brass finish that enhances any interior space. With its precise 90-degree angle, it ensures a seamless connection between glass panels while maintaining tight gaps to prevent water infiltration, making it ideal for shower enclosures and other wet areas. The bracket is constructed from solid brass, guaranteeing durability and a premium look. Snap-on covers cleverly conceal screws, contributing to a clean, polished appearance. It includes gaskets and mounting screws, streamlining installation with a required hole diameter of 5/8" (16 mm) per panel. Additionally, the Bellagio Series hinges are available for matching aesthetics, ensuring a cohesive design throughout your project. Measuring 2-15/16" (75 mm) in height and 2-3/4" (70 mm) in both leg length and overall length, this bracket supports a maximum door weight of 110 lbs and width of 39". For custom finishes, CRL's Technical Sales Shower Door Department is available to assist, providing options to suit your specifications. Upgrade your glass installations with the Bellagio Series for a touch of elegance and reliability.
Satin Brass Bellagio Series Glass-to-Glass Bracket
CRL Bellagio Series 90 Degree Glass-to-Glass Bracket are designed to work with 5/16" to 3/8" (8 to 10 mm) thick glass. thick glass projects. The two mounting screws per panel matches the configuration of many of our most popular hinge series. Continuity of design is maintained by matching the look of the hinges used. They feature square corners and edges in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting CRL Technical Sales Shower Door Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Satin Brass
Glass To Glass Angle: 90
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 2-15/16 in. (75 mm)
Leg Length: 2-3/4 in. (69.9 mm)
Length: 2-3/4 in. (70 mm)
Material: Brass
Maximum Door Weight: 110
Maximum Door Width: 39
Mounting Type: Glass To Glass
Opening Style: Swing(side)
Series: Bellagio
Shipping Limitations: None
