C.R. Laurence BEL90SMBL Matte Black Bellagio Series Wall Mount Bracket is an impeccable choice for securing tempered glass with style and sophistication. Designed for use with 5/16" to 3/8" (8 to 10 mm) thick glass, this wall bracket not only supports glass panels with ease but can also function as a horizontal shelf bracket, providing versatility in design. Constructed from solid brass, the BEL90SMBL boasts a modern square design that harmonizes beautifully with a range of architectural styles. The innovative snap-on covers ensure that screws remain invisibly concealed, delivering a clean and polished finish. This bracket is ideal for various applications, including corner, niche, and bathtub enclosures, making it a versatile addition to any project. The bracket measures 2-15/16 in. (75 mm) in height, with a width of 1-7/8 in. (48 mm) for the wall portion and 1-13/16 in. (46 mm) for the sidelite portion. Included with the bracket are gaskets and mounting screws, requiring a single 5/8" (16 mm) hole per panel for installation. Available in a sleek matte black finish, the C.R. Laurence Bellagio Series Wall Mount Bracket combines function and aesthetics for a truly premium solution.

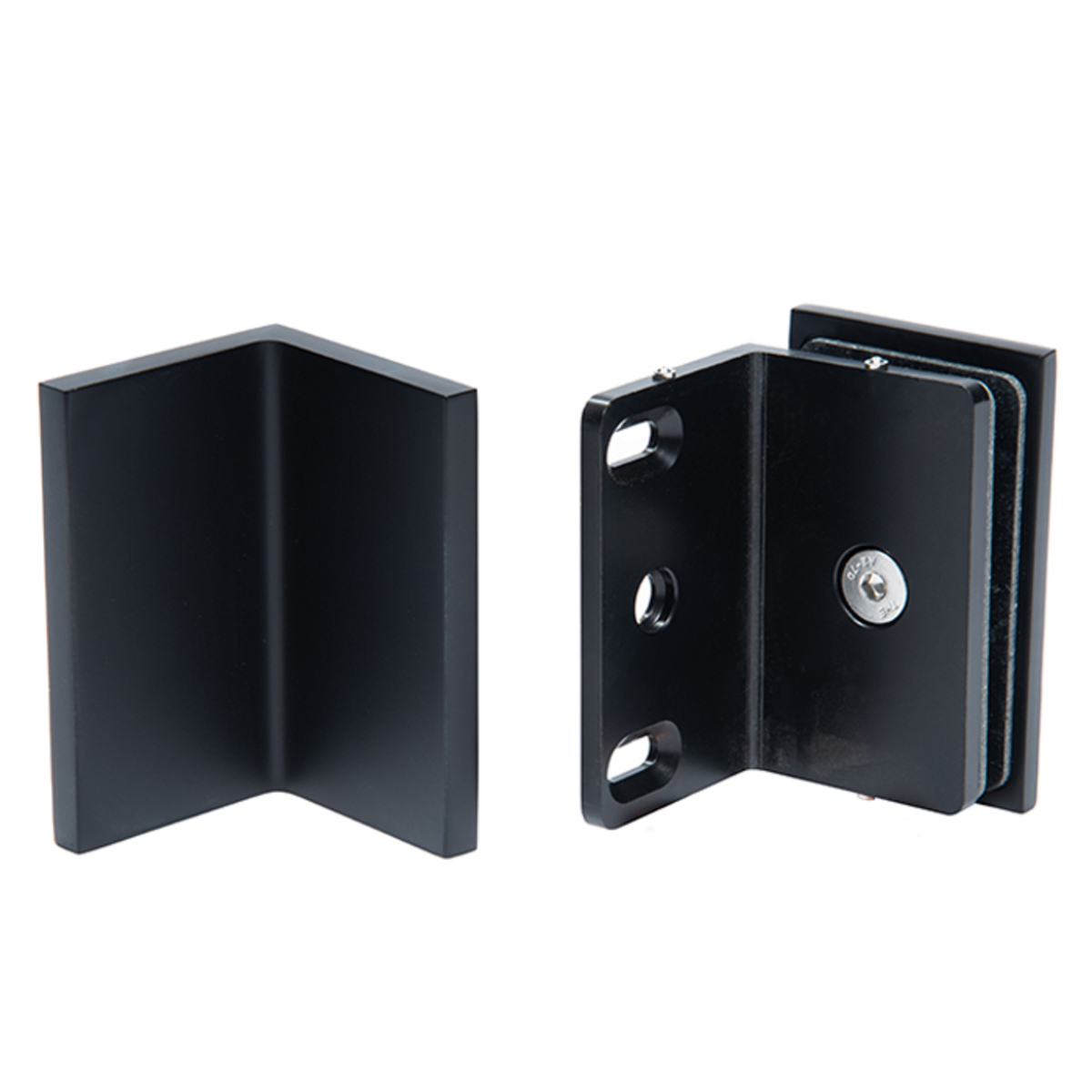

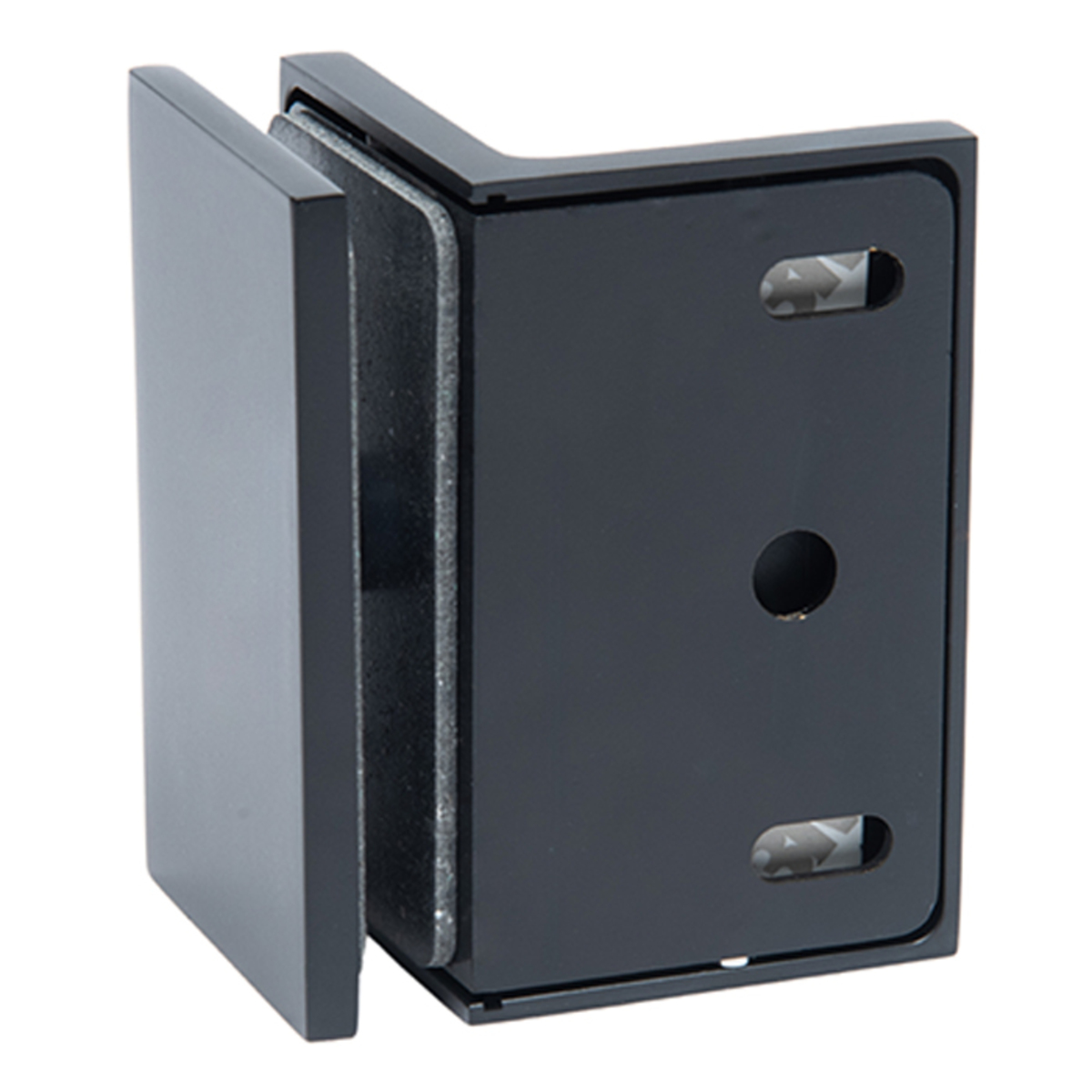

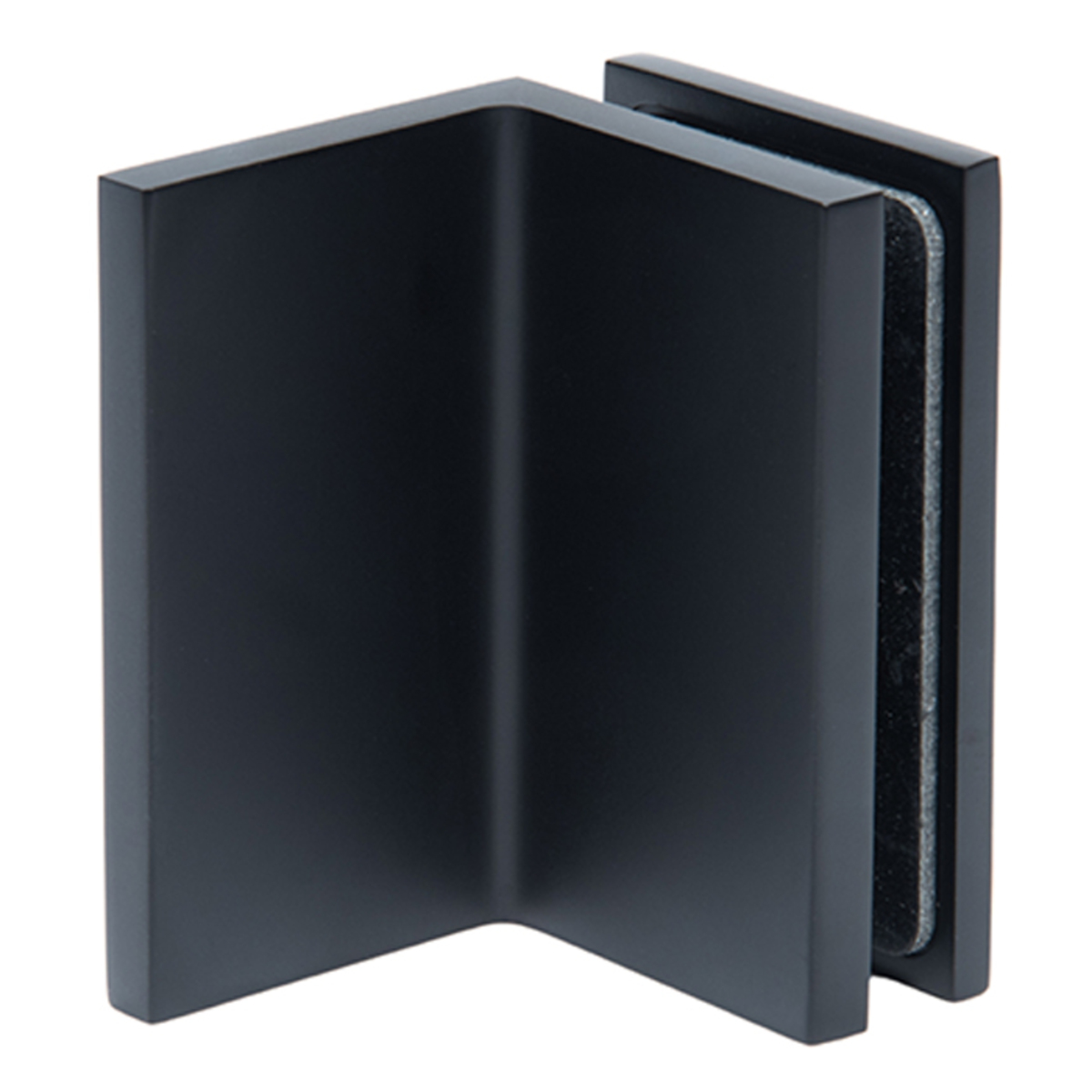

Matte Black Bellagio Series Wall Mount Bracket
CRL Bellagio Series Wall Mount Brackets are designed to work with 5/16" to 3/8" (8 to 10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Matte Black
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 2-15/16 in. (75 mm)
Material: Brass
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Bellagio
Shipping Limitations: None
Width - Sidelite Portion: 1-13/16 in. (46 mm)
Width - Wall Portion: 1-7/8 in. (48 mm)
