CRL BFW1A Satin Anodized Manual Flush Bi-Fold Service WindowC.R. Laurence BFW1A Satin Anodized Manual Flush Mount Bi-Fold Service Window is an exceptional choice for those seeking a high-quality bi-folding window solution. This versatile window features two panels that open outward simultaneously, creating an inviting service area for customers. Its robust design includes a burglar bar for added security, ensuring peace of mind in busy environments. Available in both manual and semi-automatic configurations, the manual option allows for seamless operation as both panels move together with minimal effort. The semi-automatic model enhances user convenience, with panels effortlessly closing after activation. Custom sizes and finishes can be tailored to meet specific project requirements, making this window adaptable to various settings. Constructed from durable aluminum extrusions and featuring 1/4" clear tempered glass, the BFW1A offers both strength and style. With a satin anodized finish, it complements a range of architectural designs. The window measures 38-1/2 inches in height and 24 inches in width, with a frame depth of 1-3/4 inches. Ideal for interior and exterior applications, this window strikes a balance between functionality and aesthetics. For more details, reach out to the CRL Technical Sales Department to explore your options further.

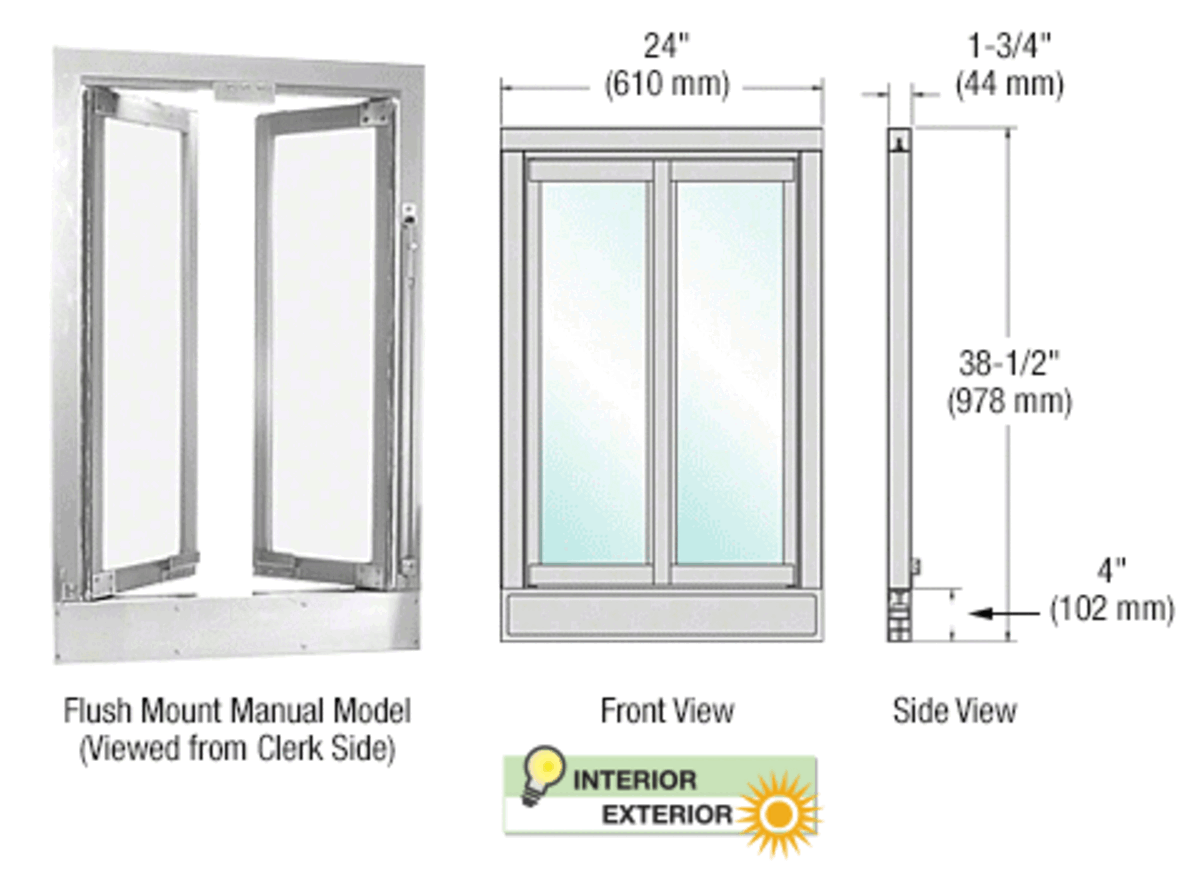

Satin Anodized Manual Flush Mount Bi-Fold Service Window
- Select From Manual or Semi-Automatic Operation
- Available in Stock or Custom Sizes and Finishes
- Drawings and Specifications are Available
CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required. Features include two panels that simultaneously open outward towards the customer, and a burglar bar for extra security. Projected and Flush Mount models are available in two different configurations:
MANUAL - Both panels move simultaneously as either panel is manually operated.
SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close. Custom sizes and custom paint colors are available by special order. For additional information, contact CRL Technical Sales Department.
NOTE: Manual models can be ordered with pivot mechanism at header for clear counter by others.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf or Stainless Steel Sill
Glazing: 1/4" (6 mm) Clear Tempered Glass
Stock Finishes: Satin Anodized or Bronze Anodized
Bi-Fold Configuration: Manual
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Frame Depth: 1-3/4 in. (44.5 mm)
Frame Width: 1-3/4 in. (44.5 mm)
Glazed: Yes
Glazing Thickness: 1/4 in. (6 mm)
Glazing Type: Clear Tempered
Height: 38-1/2 in. (977.9 mm)
Material: Aluminum
Shipping Limitations: No UPS - Common Carrier Only
Usage: Interior,Exterior
Width: 24 in. (609.6 mm)
Window Style: Flush Mount Manual
