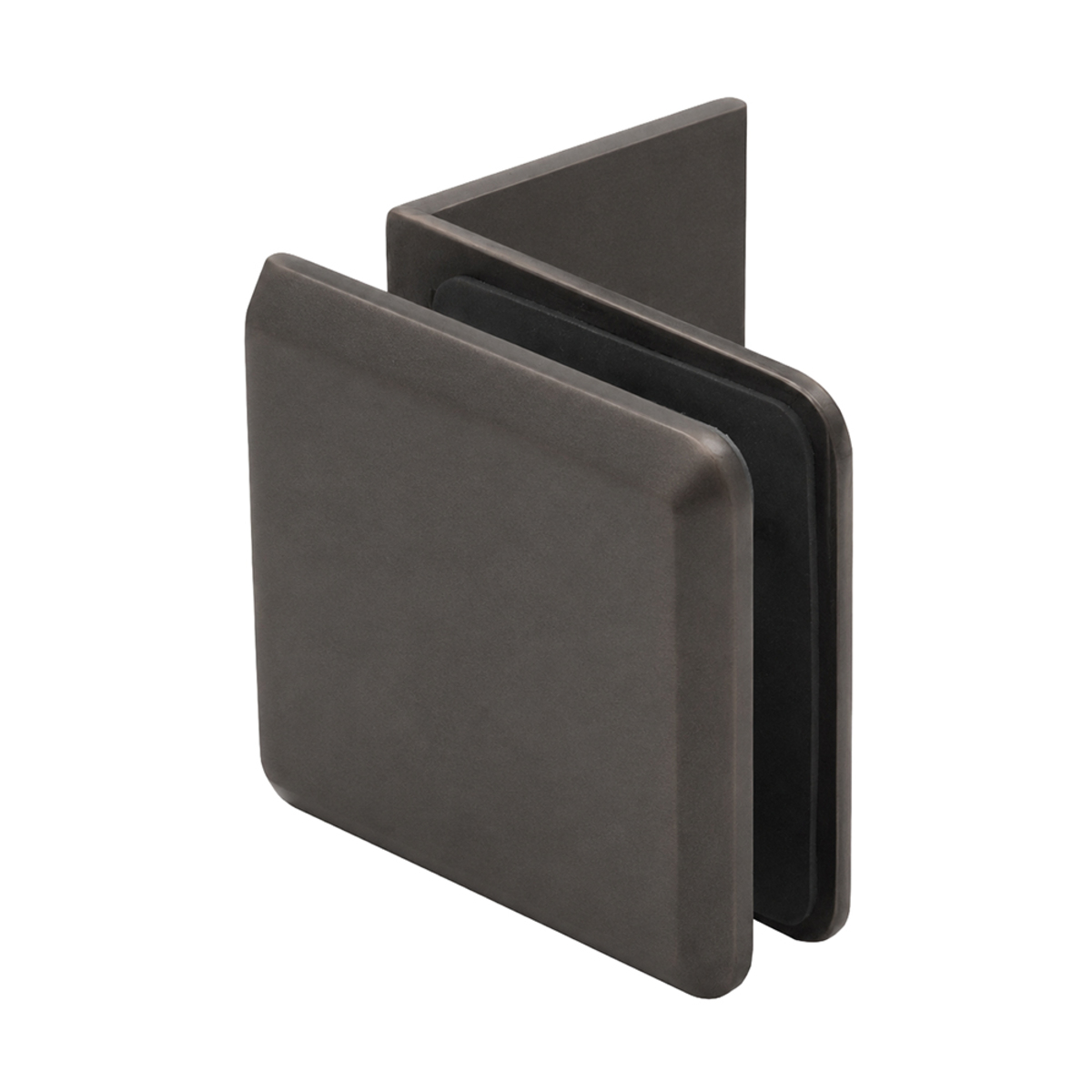

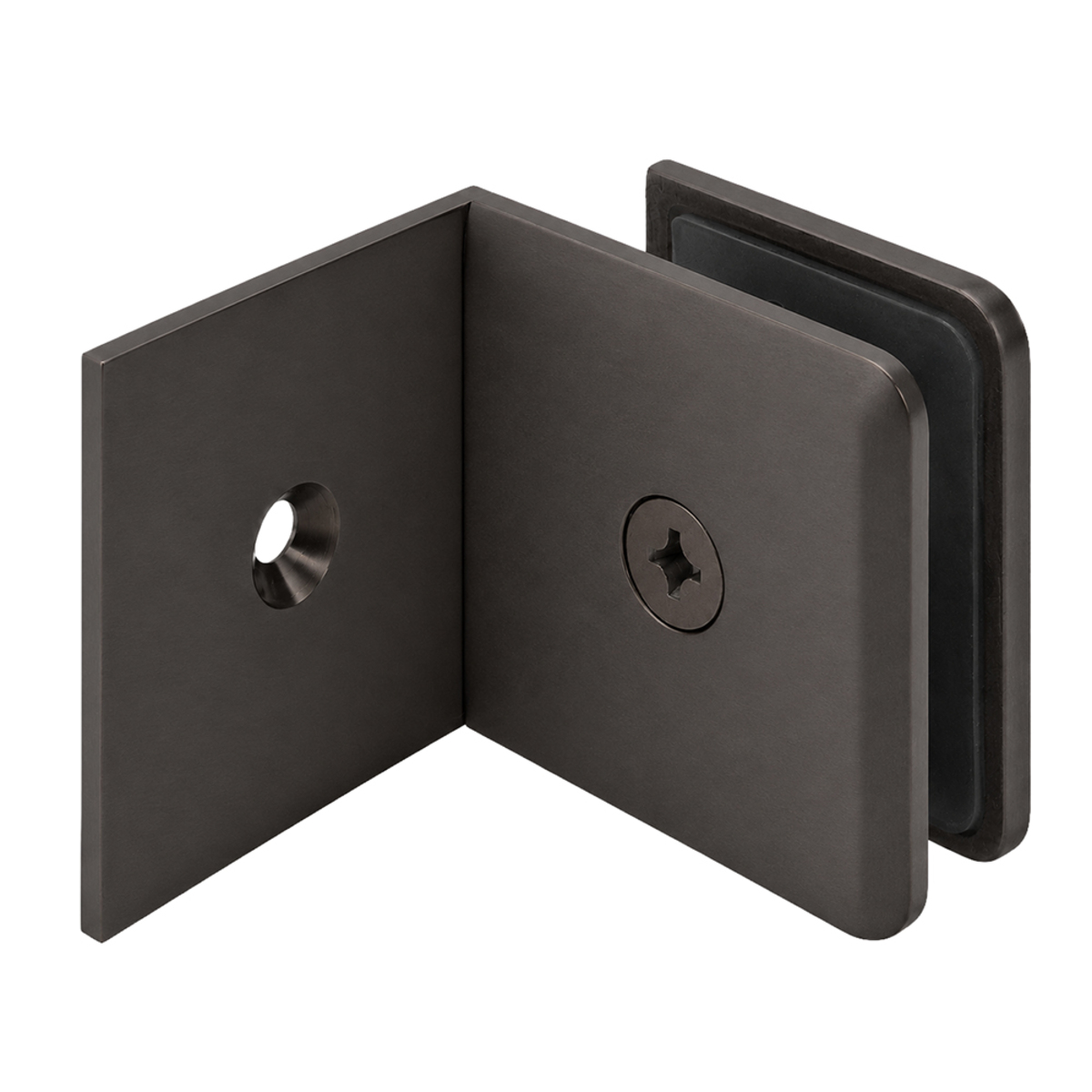

CRL BGC0390RB Oil Rubbed Bronze Beveled Fixed Panel Clamp with Large Leg

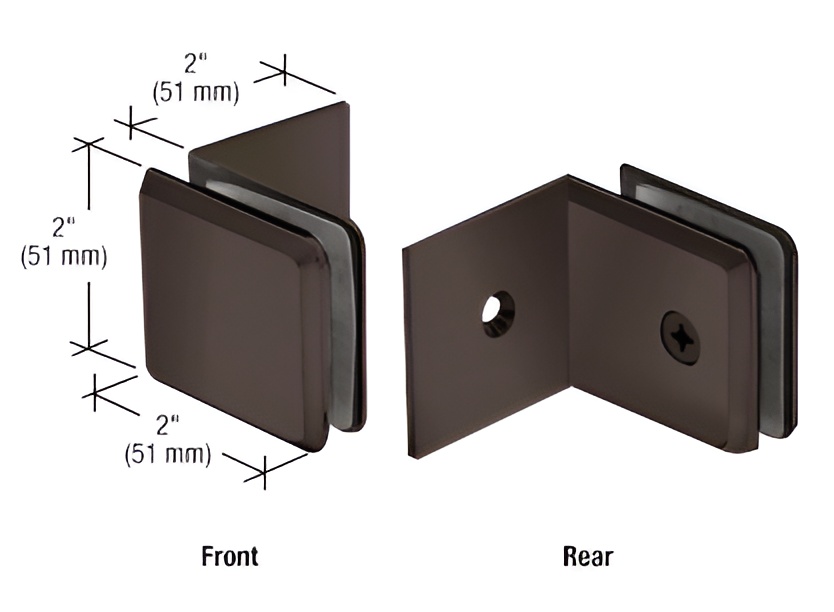

C.R. Laurence BGC0390RB Oil Rubbed Bronze Fixed Panel Beveled Clamp With Large Leg offers a robust solution for securing vertical fixed glass panels in both commercial and residential applications. Designed for use with monolithic tempered glass, this clamp accommodates glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm) and requires a 3/4" (19 mm) hole for installation. This clamp mounts directly to walls, ceilings, or floors, ensuring a secure fit with a clearance of just 1/16" (2 mm) between the glass and the wall. The 90º leg design enhances strength and stability, while the larger leg effectively covers more tile area, making it ideal for various installations. For a seamless, watertight finish, clear silicone can be applied. Constructed from solid brass and finished in a sophisticated oil-rubbed bronze, this clamp not only provides durability but also adds an elegant touch to any setting. Each unit includes mounting screws and gaskets, allowing for straightforward installation. For maintenance, the replacement gasket is available under Cat. No. BGCU1G. Choose the C.R. Laurence BGC0390RB for your next glazing project, and enjoy the perfect blend of style and functionality.

Oil Rubbed Bronze Fixed Panel Beveled Clamp With Large Leg

• For 3/8" to 1/2" (10 to 12 mm)
• Use Monolithic Tempered Glass
• Requires 3/4" (19 mm) Hole in Glass
• Available in Both Small and Large Leg Models
