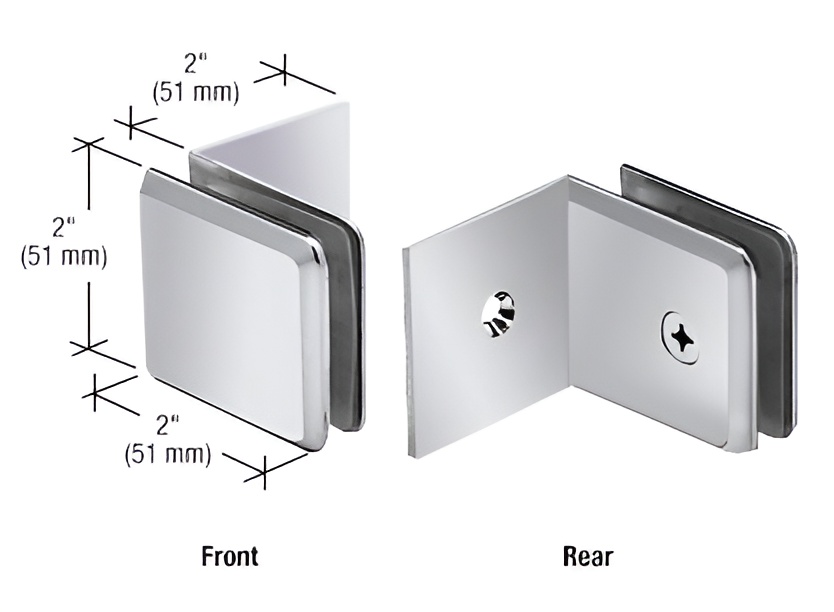

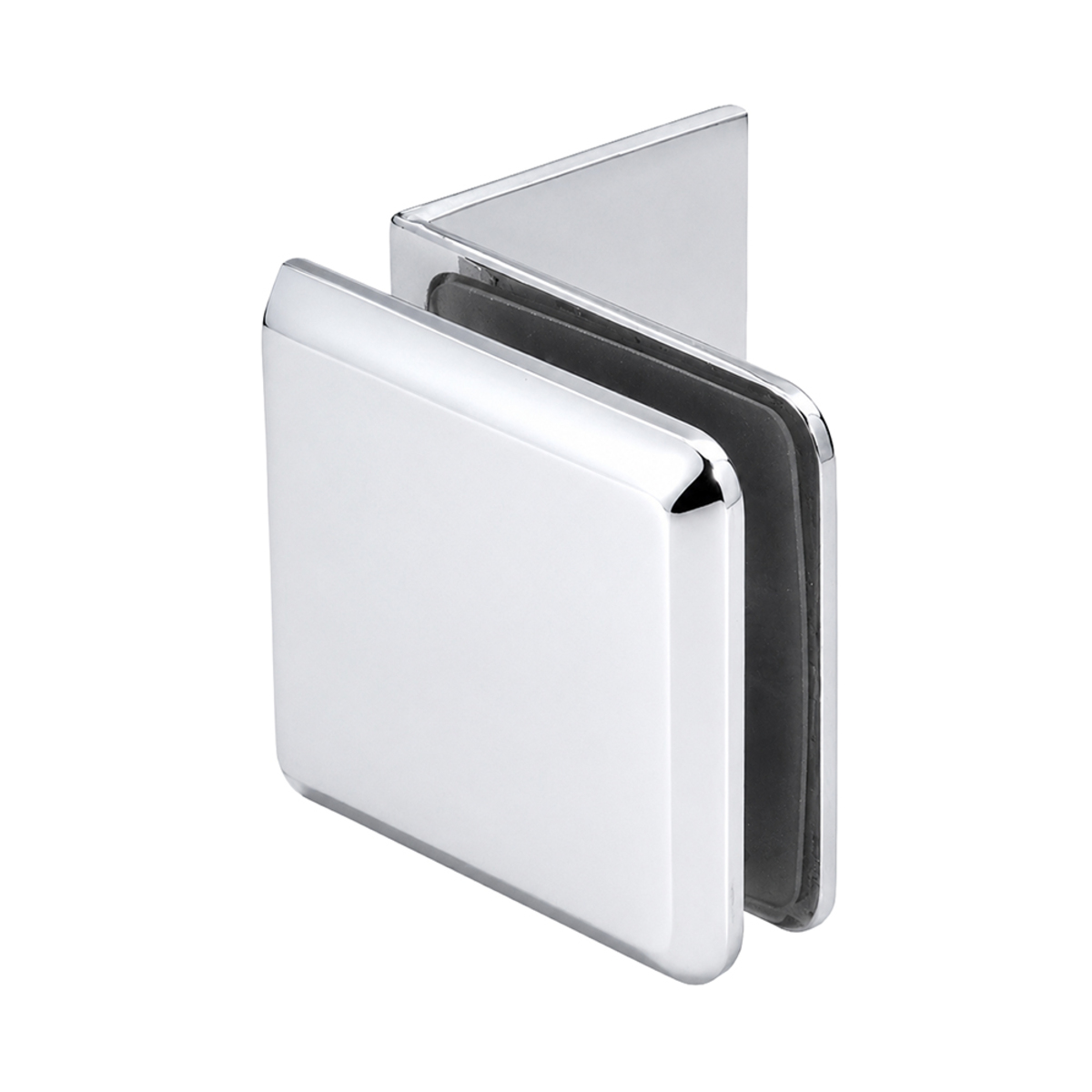

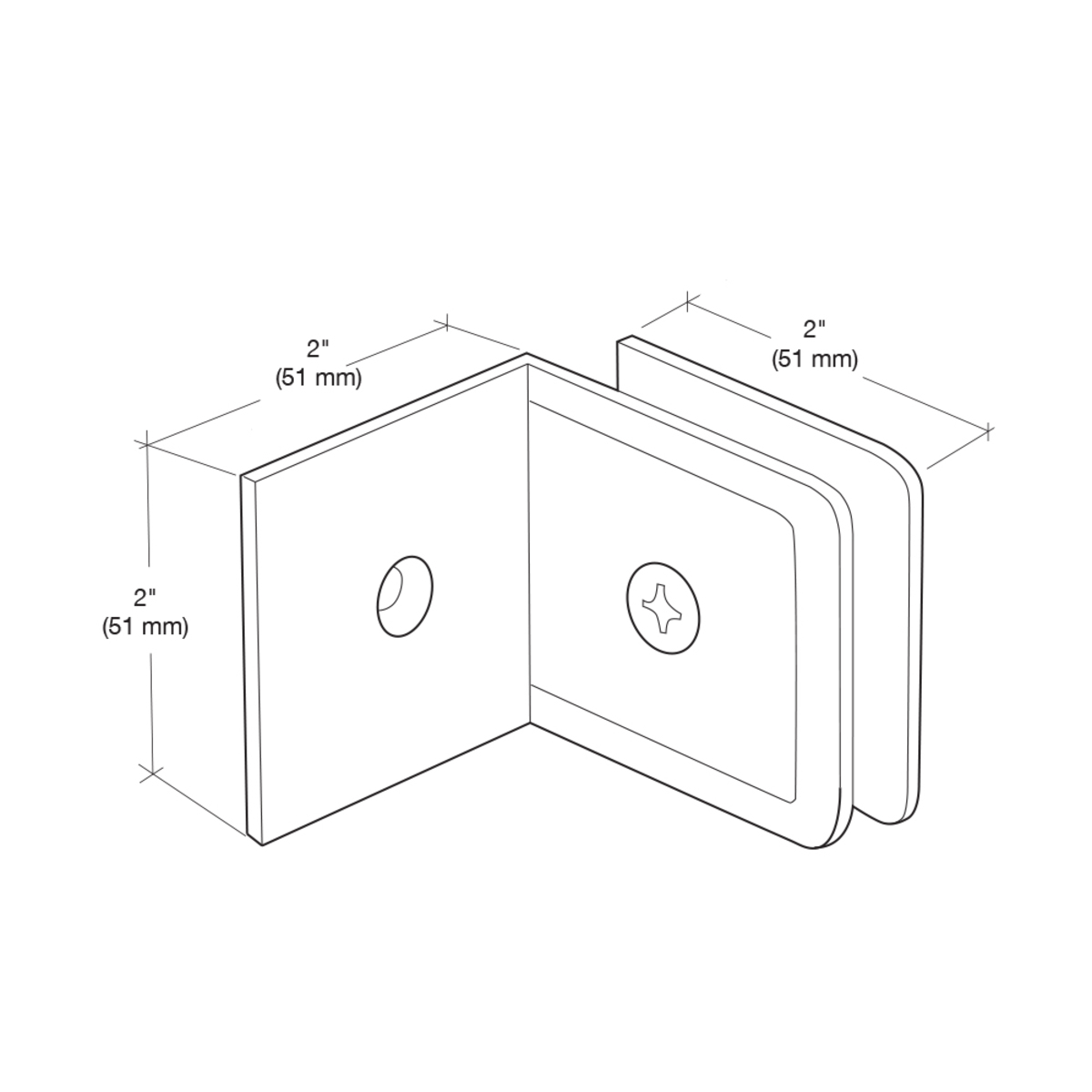

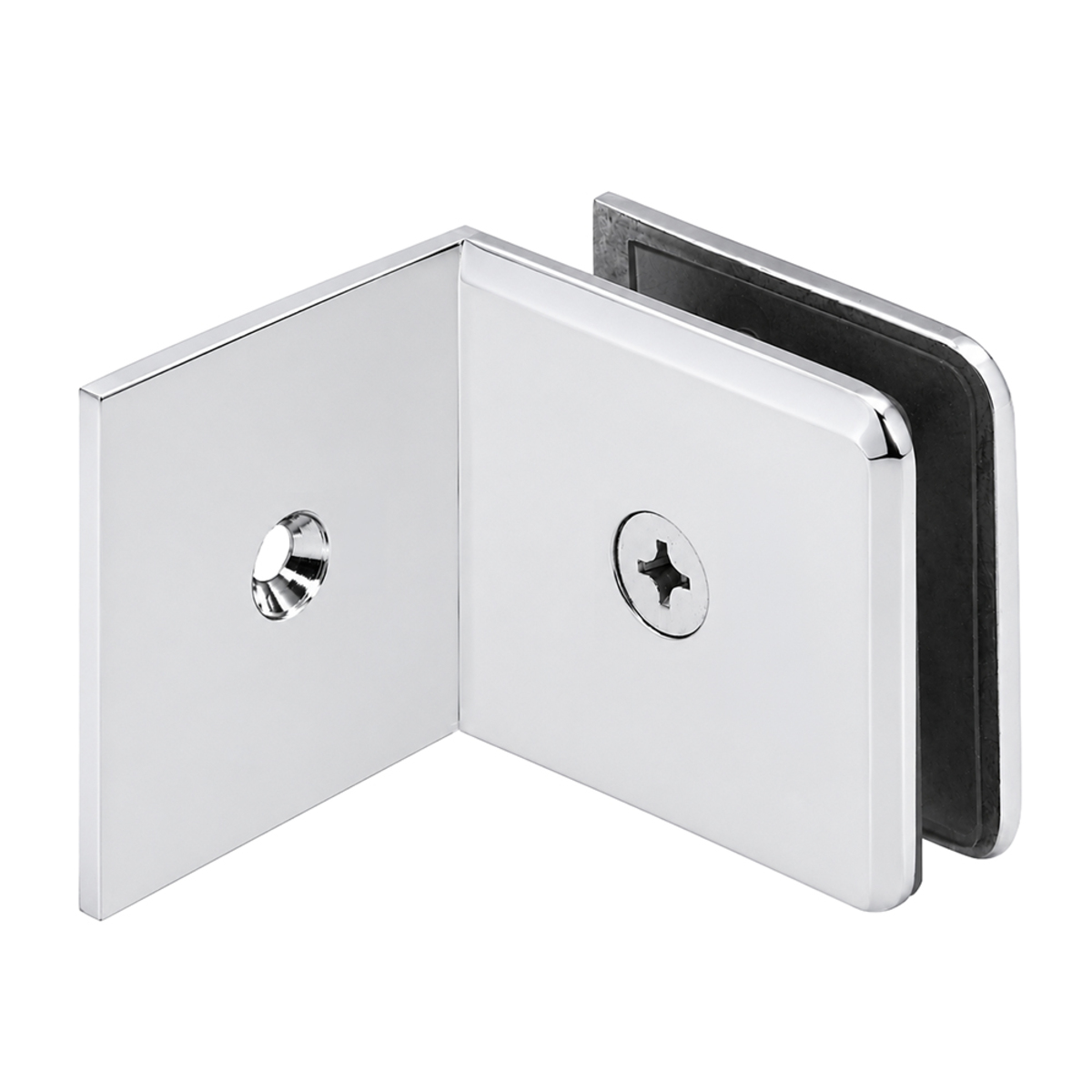

CRL BGC039CH Polished Chrome Beveled Fixed Panel Clamp with Large Leg

C.R. Laurence BGC039CH Polished Chrome Fixed Panel Beveled Clamp With Large Leg is expertly designed to secure vertical fixed glass panels, providing both strength and aesthetic appeal. Constructed from solid brass, this clamp is built to last, making it an ideal choice for professional applications. It accommodates glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm) and requires a 3/4" (19 mm) hole in the glass for installation. The large leg of the clamp enhances stability by covering more tile area, while the 90º leg design adds extra strength to the installation. A clearance of only 1/16" (2 mm) between the glass and wall ensures a clean, modern look. For added protection against water, clear silicone can be used to create a watertight seal. This product is available in both small and large leg models to suit various project requirements. Each package includes mounting screws and gaskets, making installation straightforward. With its polished chrome finish, the BGC039CH clamp not only serves a functional purpose but also complements contemporary design aesthetics. Trust C.R. Laurence for your architectural hardware needs, where quality meets style.

Polished Chrome Fixed Panel Beveled Clamp With Large Leg

• For 3/8" to 1/2" (10 to 12 mm)
• Use Monolithic Tempered Glass
• Requires 3/4" (19 mm) Hole in Glass
• Available in Both Small and Large Leg Models

Resources

• BGC039 Detailed CAD Drawings.dwg
• BGC039 Detailed CAD Drawings.pdf
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• SGC039 BGC039 Template
