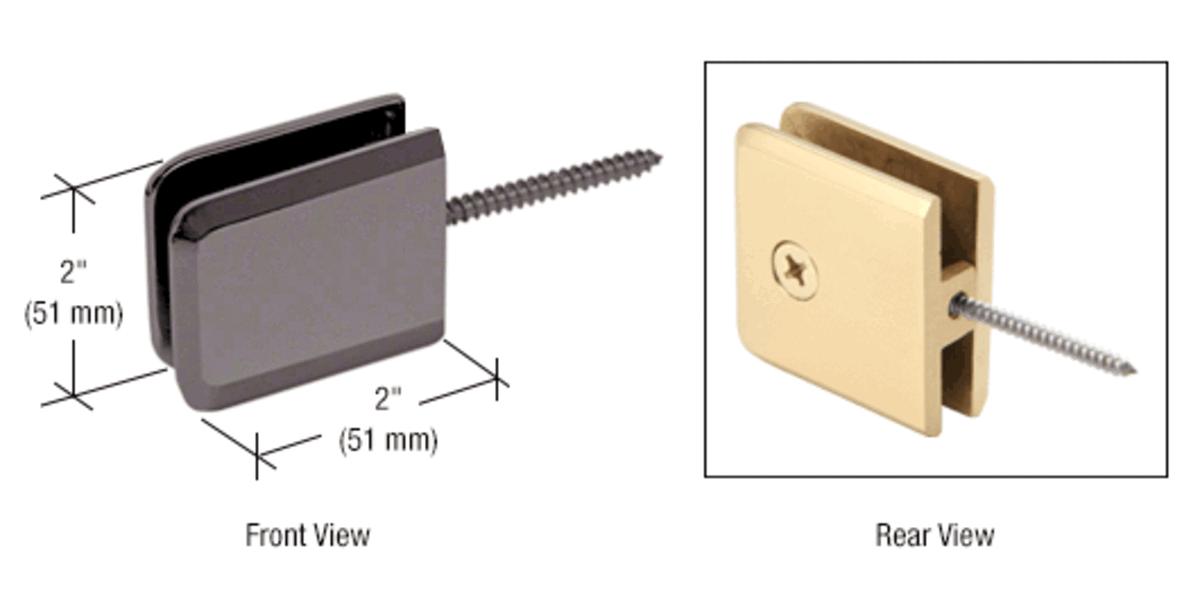

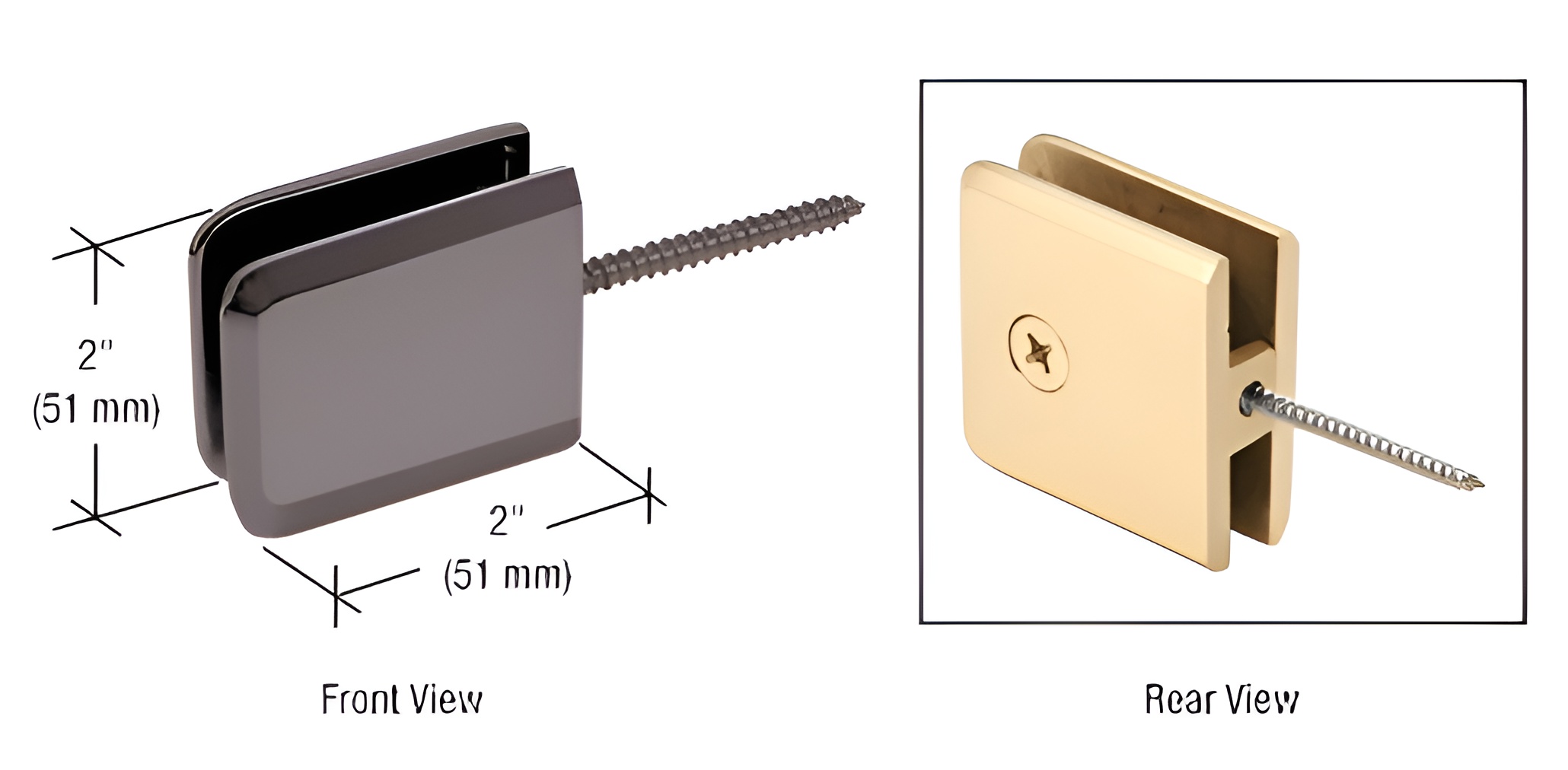

CRL BGC1860RB Oil Rubbed Bronze Square Beveled Movable Transom Clamp

C.R. Laurence BGC1860RB Oil Rubbed Bronze Square Beveled Wall Mount Movable Transom Clamp is engineered for versatility and elegance in architectural glass applications. Designed to accommodate glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), this clamp is ideal for use with monolithic tempered glass, ensuring both safety and durability. The innovative design allows the glass transom to swivel, effectively releasing steam and enhancing functionality in spaces like bathrooms or kitchens. This wall-mounted clamp is available in 180-degree models, providing flexibility in installation options. Crafted from solid brass, the BGC1860RB not only boasts a robust construction but also features an attractive oil-rubbed bronze finish that complements a variety of design aesthetics. For optimal performance, the clamp should be centered on the transom to achieve balanced movement. It includes necessary gaskets and accommodates a maximum transom size of 16" x 30" (406 x 762 mm). For larger transoms, pivot hinges may be required. The BGC1860RB is a reliable choice for building professionals and homeowners seeking a stylish and functional solution for movable glass transoms.

Oil Rubbed Bronze Square Beveled Wall Mount Movable Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Glass Transom Swivels to Allow Release of Steam
• Wall Mount, and 180 Degree Models Available
• Solid Brass Material
