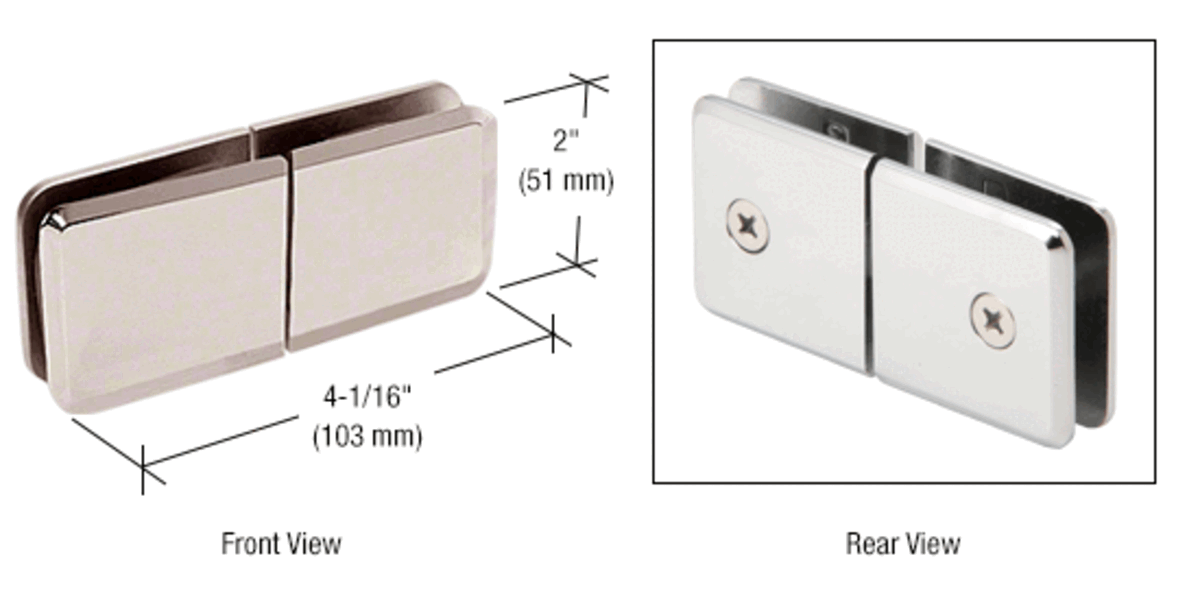

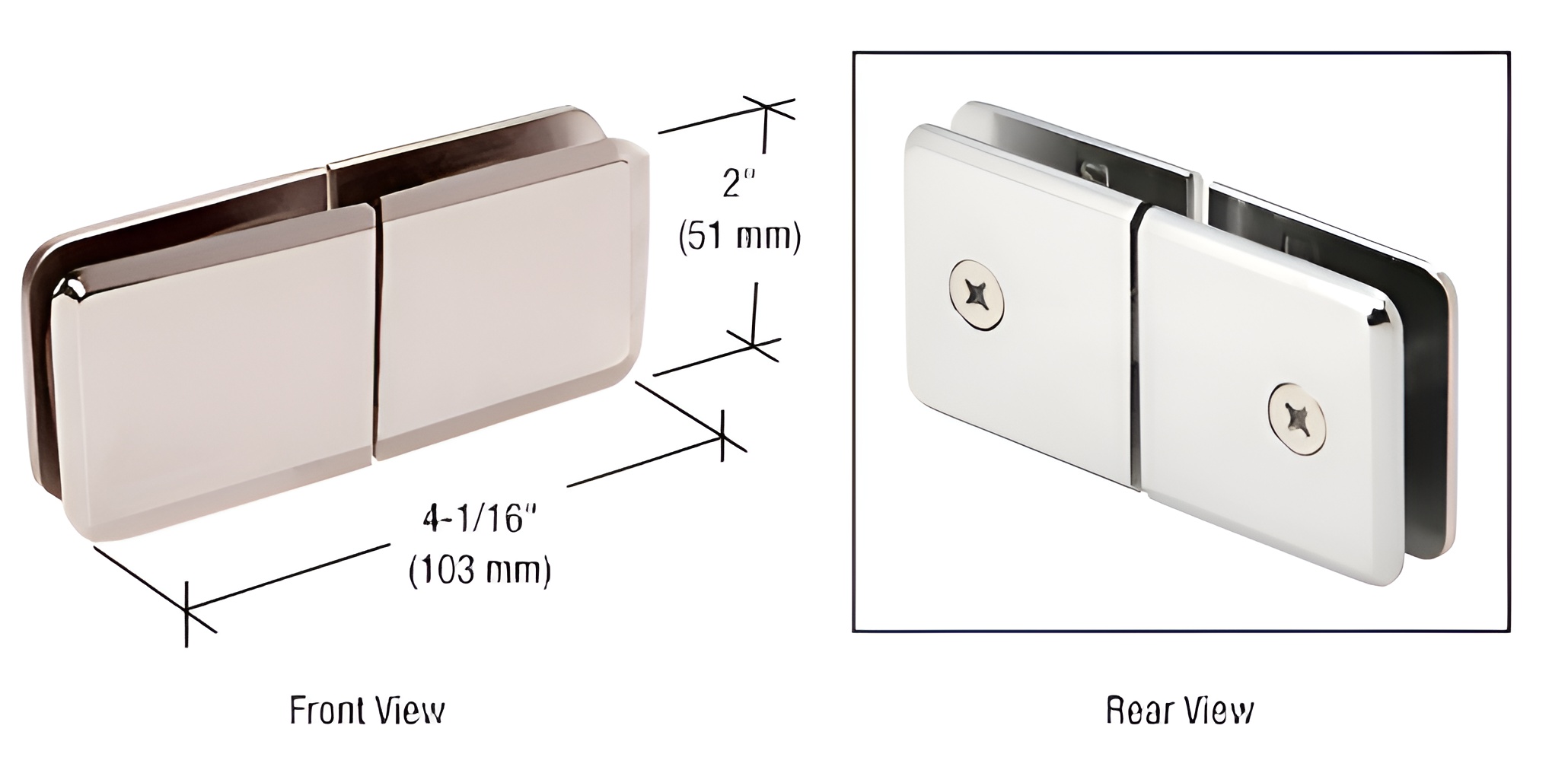

CRL BGC188PN Polished Nickel 180 Glass-to-Glass Movable Transom Clamp

C.R. Laurence BGC188PN Polished Nickel Square Beveled 180 Glass-to-Glass Movable Transom Clamp is engineered for versatility and durability, accommodating 3/8" to 1/2" (10 to 12 mm) thick glass. This innovative clamp allows the transom to swivel, effectively releasing steam and enhancing the functionality of your glass installations. Crafted from solid brass, the BGC188PN combines strength with an elegant polished nickel finish, making it a stylish addition to any project. It is specifically designed for use with monolithic tempered glass and ensures balanced movement when centered on the transom. This clamp can be paired with the BGC186 Wall Mount Movable Transom Clamp for added flexibility in your design. The maximum transom size supported is 16" x 30" (406 x 762 mm). For larger transoms, pivot hinges must be utilized as transom clamps. Installation requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom for optimal performance. Included with the product are gaskets for seamless integration. Elevate your architectural glass projects with the reliability and design sophistication of the C.R. Laurence BGC188PN.

Polished Nickel Square Beveled 180 Glass-to-Glass Movable Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) Thick Glass
• Glass Transom Swivels to Allow Release of Steam
• Wall Mount, and 180º Models Available
• Solid Brass Material
• Use Monolithic Tempered Glass
