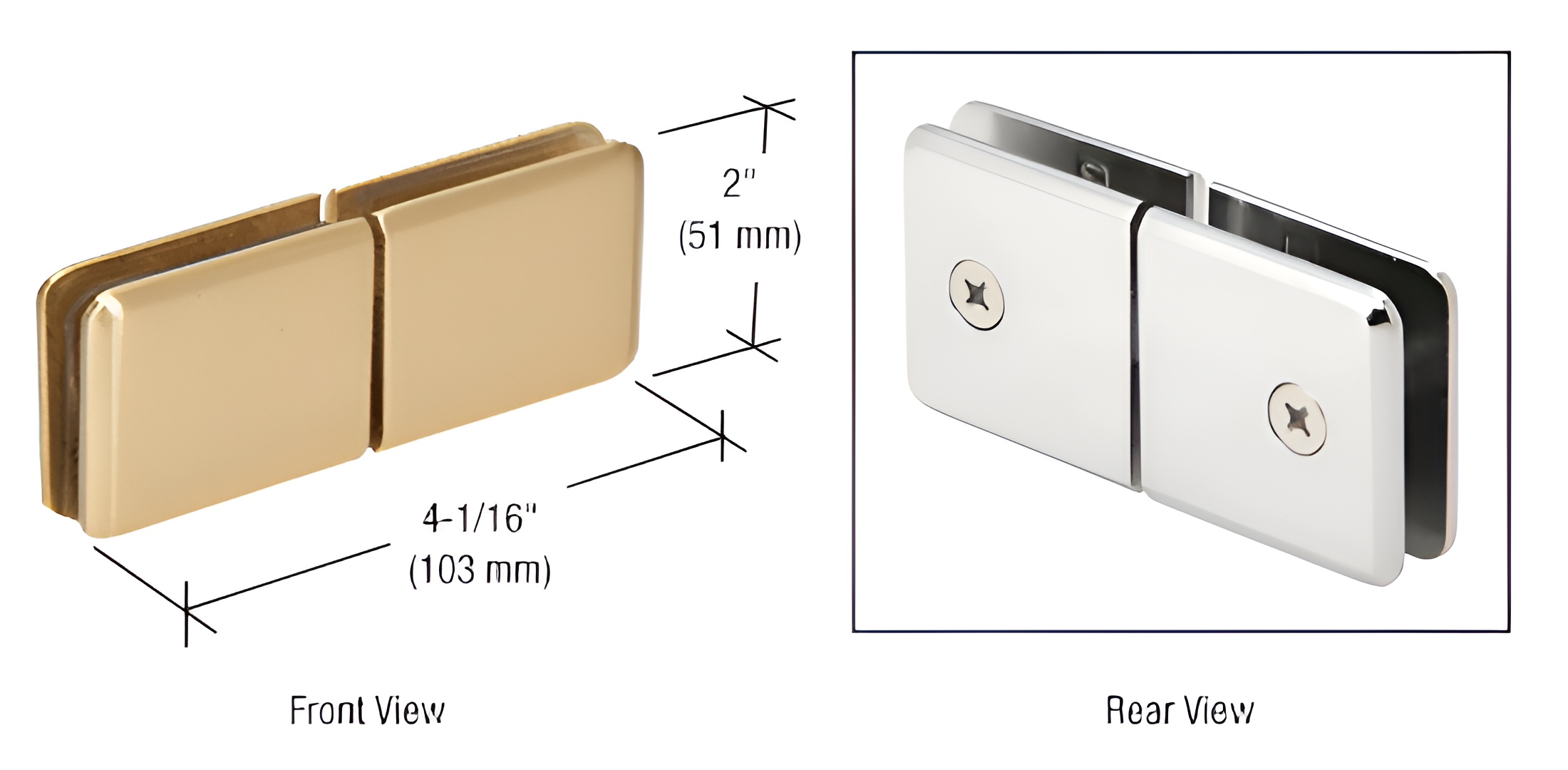

CRL BGC188SB Satin Brass Square Beveled 180 Glass-to-Glass Movable Transom Clamp

Your Price: $29.81

Retail Price:$35.68

Your Savings:$5.87(16%)

The CRL BGC188SB Satin Brass Square Beveled Transom Clamp enables smooth glass-to-glass movement for 3/8" to 1/2" thick glass.

Part Number : CRL_BGC188SB

Availability: 237 In Stock

Quantity

Description

CRL BGC188SB Satin Brass Square Beveled 180 Glass-to-Glass Movable Transom Clamp

C.R. Laurence BGC188SB Satin Brass Square Beveled Style 180 Glass-to-Glass Movable Transom Clamp is the perfect solution for creating versatile glass installations. Designed for 3/8" to 1/2" (10 to 12 mm) thick glass, this clamp allows the transom to swivel, effectively releasing steam and enhancing functionality. Its solid brass construction not only ensures durability but also adds a touch of elegance with its satin brass finish. This movable transom clamp can be paired with the BGC186 Wall Mount Movable Transom Clamp for seamless integration into a variety of glass configurations. It is essential to center the clamp on the transom for balanced movement, ensuring smooth operation. The maximum transom size is 16" x 30" (406 x 762 mm); larger sizes require pivot hinges as transom clamps. Installation requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom, making it suited for monolithic tempered glass. The package includes necessary gaskets for a secure fit. While brass is known for its durability, it may oxidize over time, potentially leading to a tarnished appearance. This clamp is an excellent choice for professionals seeking high-quality, attractive hardware for their glass projects.

Satin Brass Square Beveled Style 180 Glass-to-Glass Movable Transom Clamp

For 3/8" to 1/2" (10 to 12 mm) Thick Glass
Glass Transom Swivels to Allow Release of Steam
Wall Mount, and 180º Models Available
Solid Brass Material
Use Monolithic Tempered Glass

CRL Beveled 180º Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. This style Clamp can also be used in combination with our Cat No. BGC186 Wall Mount Movable Transom Clamp. Clamp must be centered on the transom to achieve balanced movement.

Replacement parts are Cat. Nos. 90295A120 (Nylon
Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Beveled

Enclosure Type: Niche, Tailor Made Solutions

Finish/ Color:: Satin Brass

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Material: Brass

Mounting Type: Glass To Glass

Shipping Limitations: None
