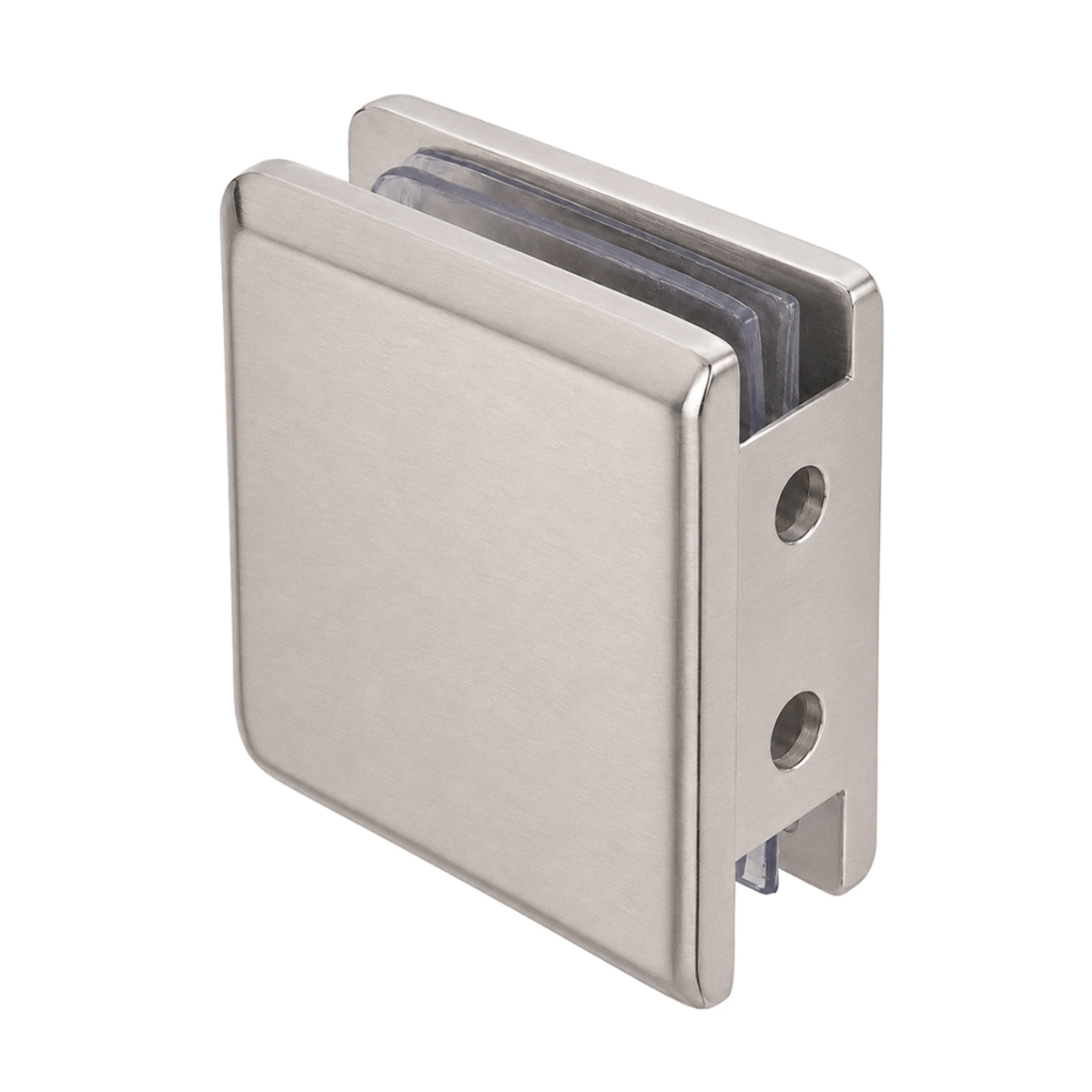

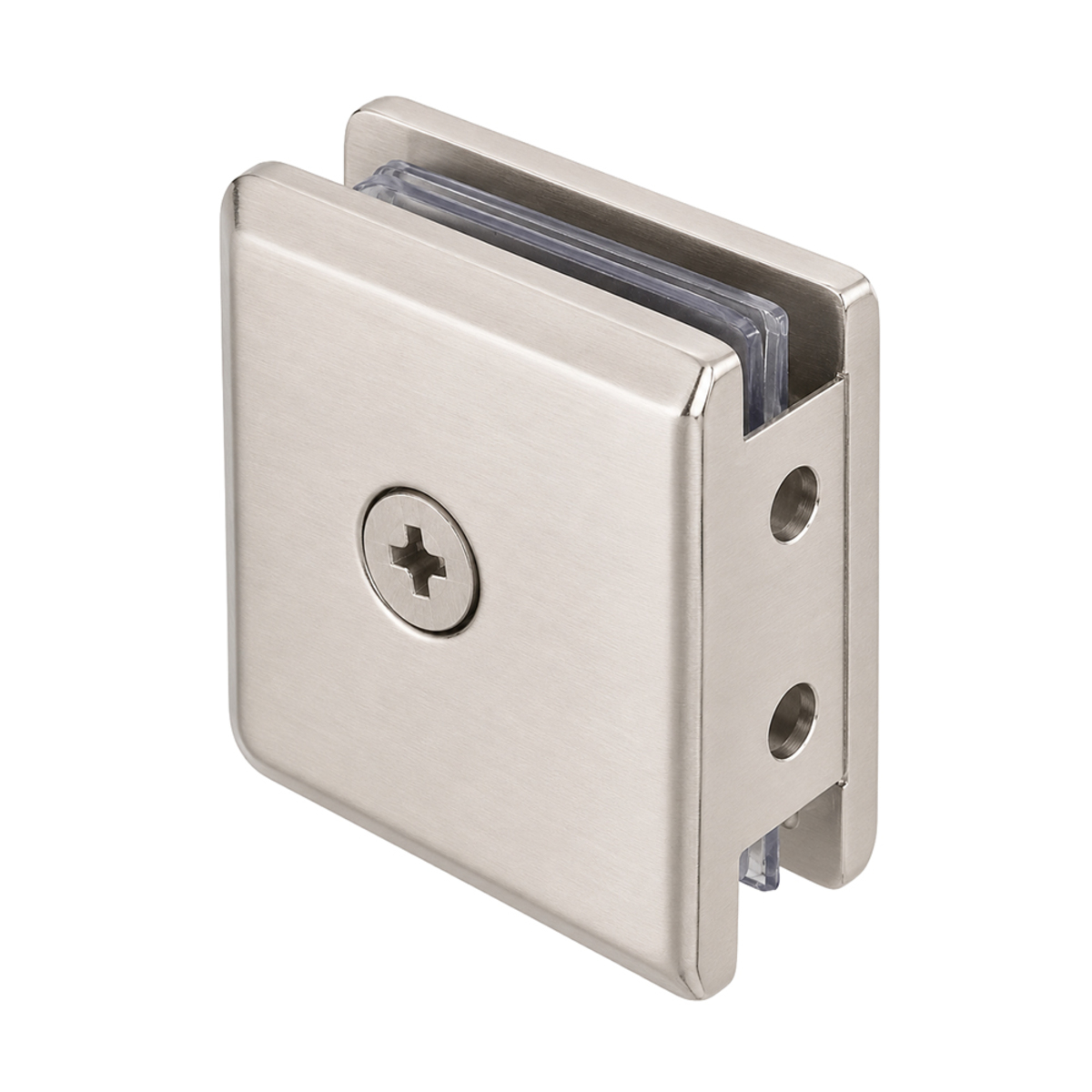

CRL BGCU1BN Brushed Nickel Beveled Notch-in-Glass Fixed Panel U-Clamp

C.R. Laurence BGCU1BN Brushed Nickel Beveled Style Notch-in-Glass Fixed Panel U-Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for use with 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass, this clamp enhances the overall aesthetics of your installation, providing a clean, 'all-glass' look that surpasses traditional U-channel options. Crafted from solid brass, the BGCU1BN is not only durable but also features a stylish brushed nickel finish, making it a perfect addition for modern bath spaces. The clamp mounts directly to the wall, ceiling, or floor, with a minimal 1/16" (2 mm) clearance between the glass and wall, ensuring a seamless integration. Glass fabrication is necessary to accommodate the clamp’s notch, and it includes mounting screws and gaskets for easy installation. Whether you're creating a corner, niche, or tailor-made shower solution, this clamp is versatile enough to meet your design needs. Additionally, clear silicone can be applied to provide a water-resistant seal, enhancing both functionality and appearance. Choose the C.R. Laurence BGCU1BN for a reliable, stylish, and efficient glazing solution.

Brushed Nickel Beveled Style Notch-in-Glass Fixed Panel U-Clamp

• For 3/8" to 1/2" (10 to 12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

Resources

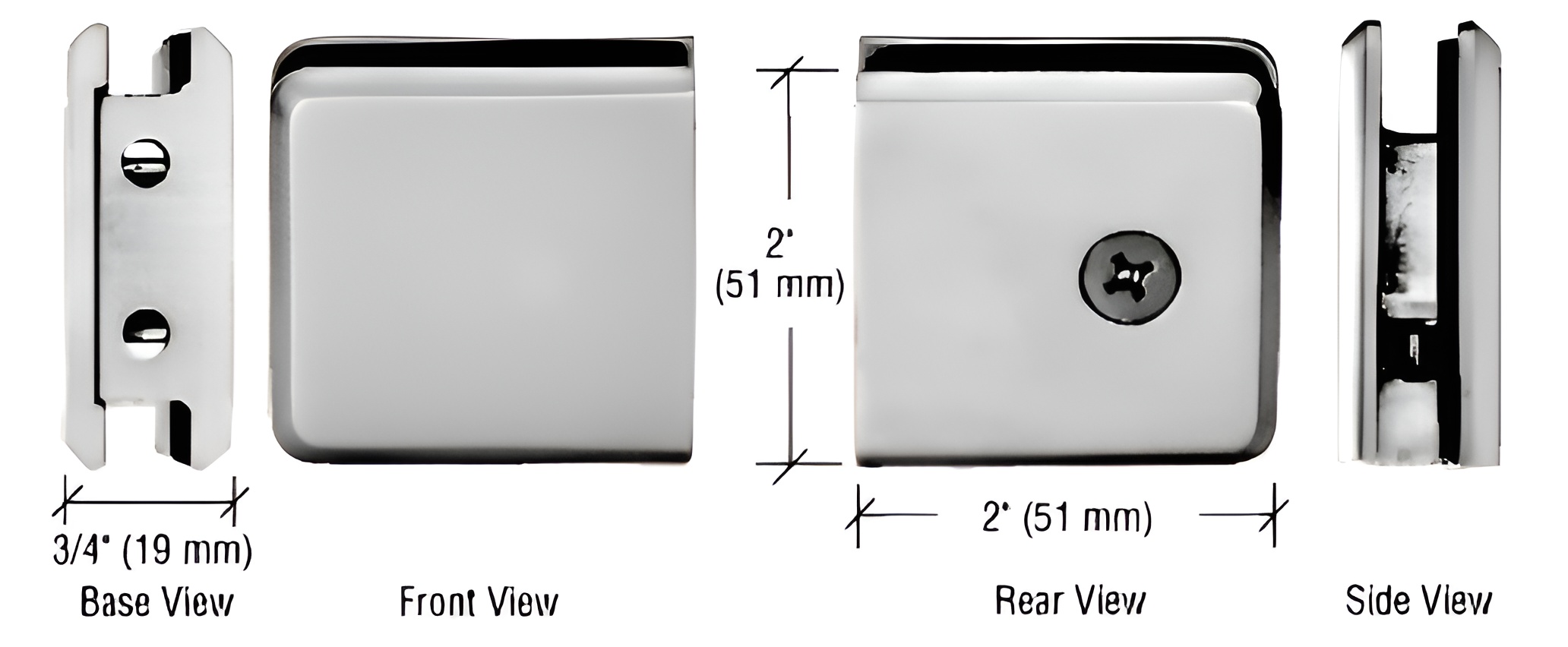

• BGCU1 Detailed CAD Drawings.dwg
• BGCU1 Detailed CAD Drawings.pdf
• BGCU1 SGCU1 Template
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
