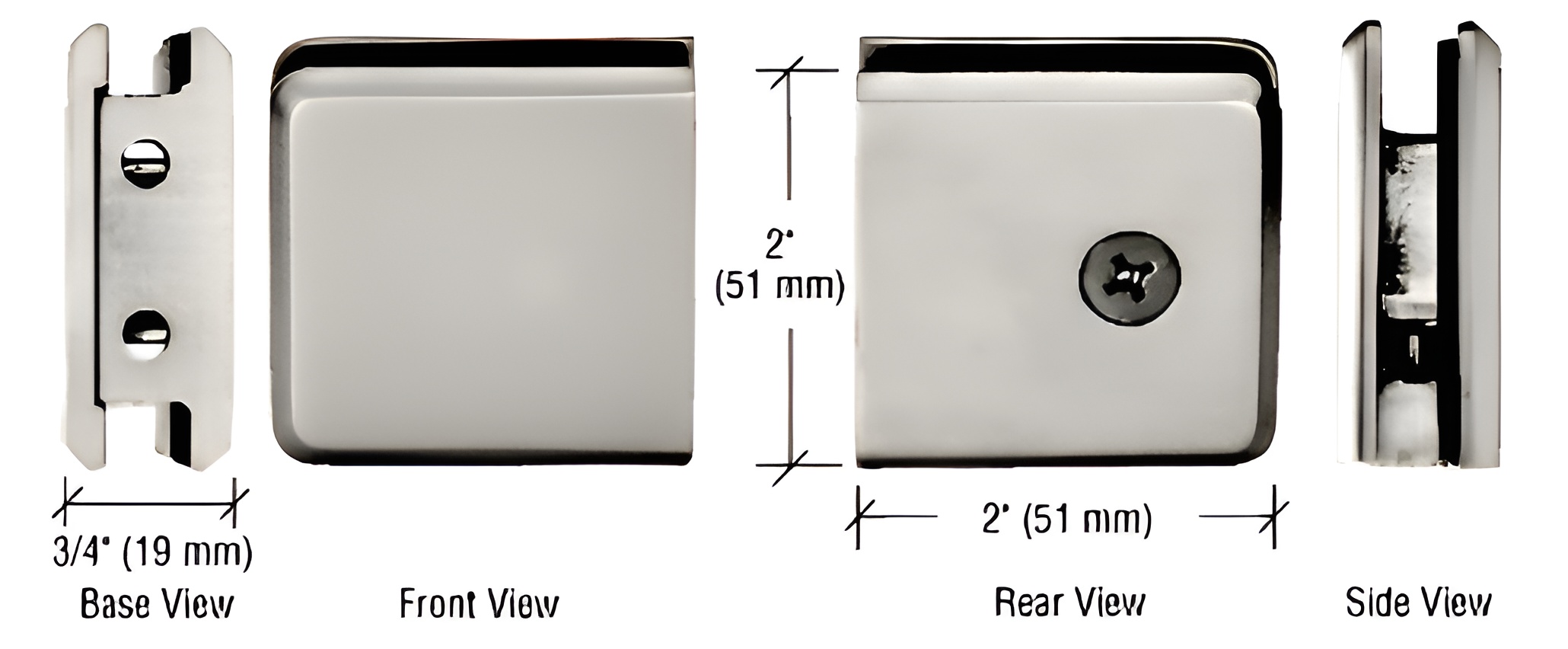

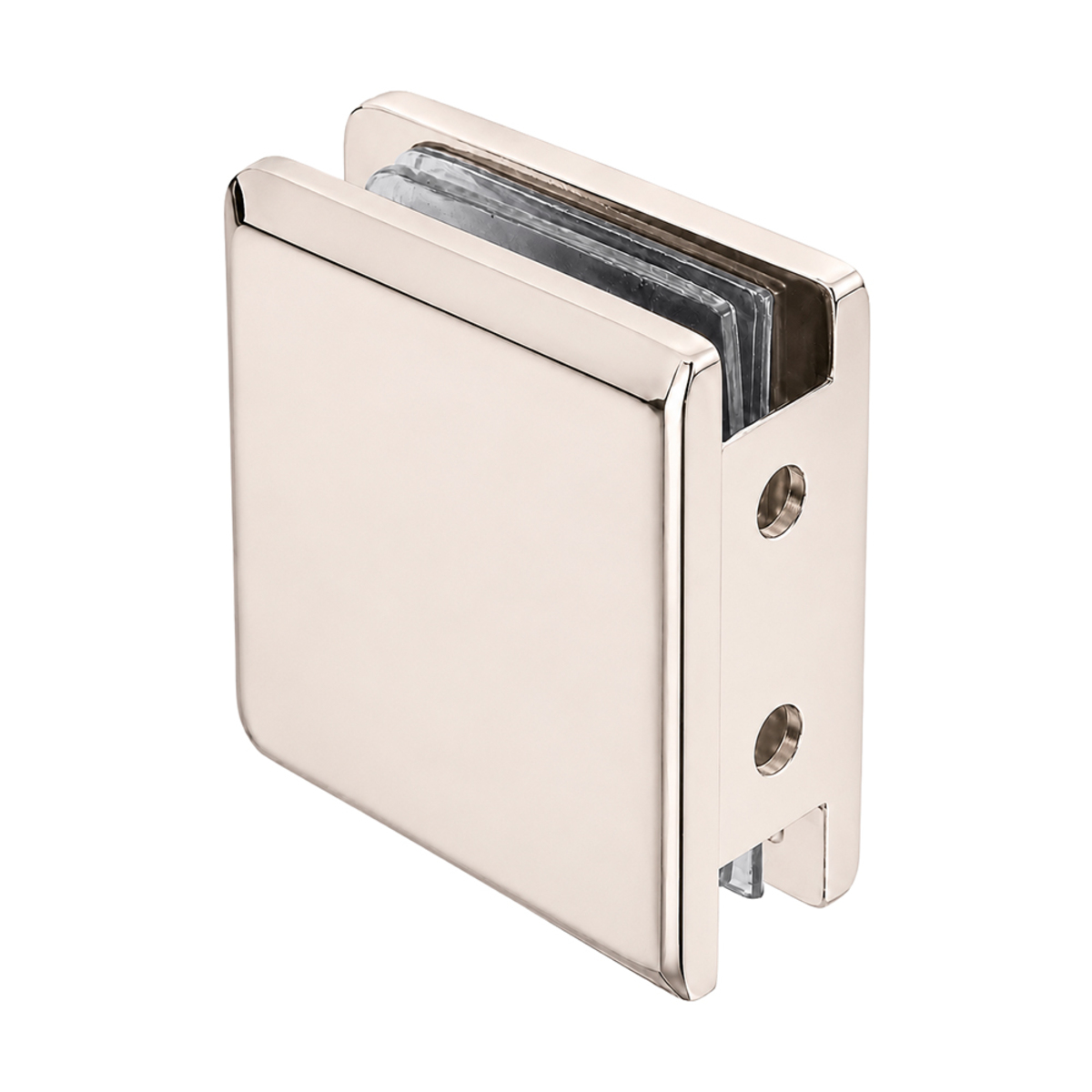

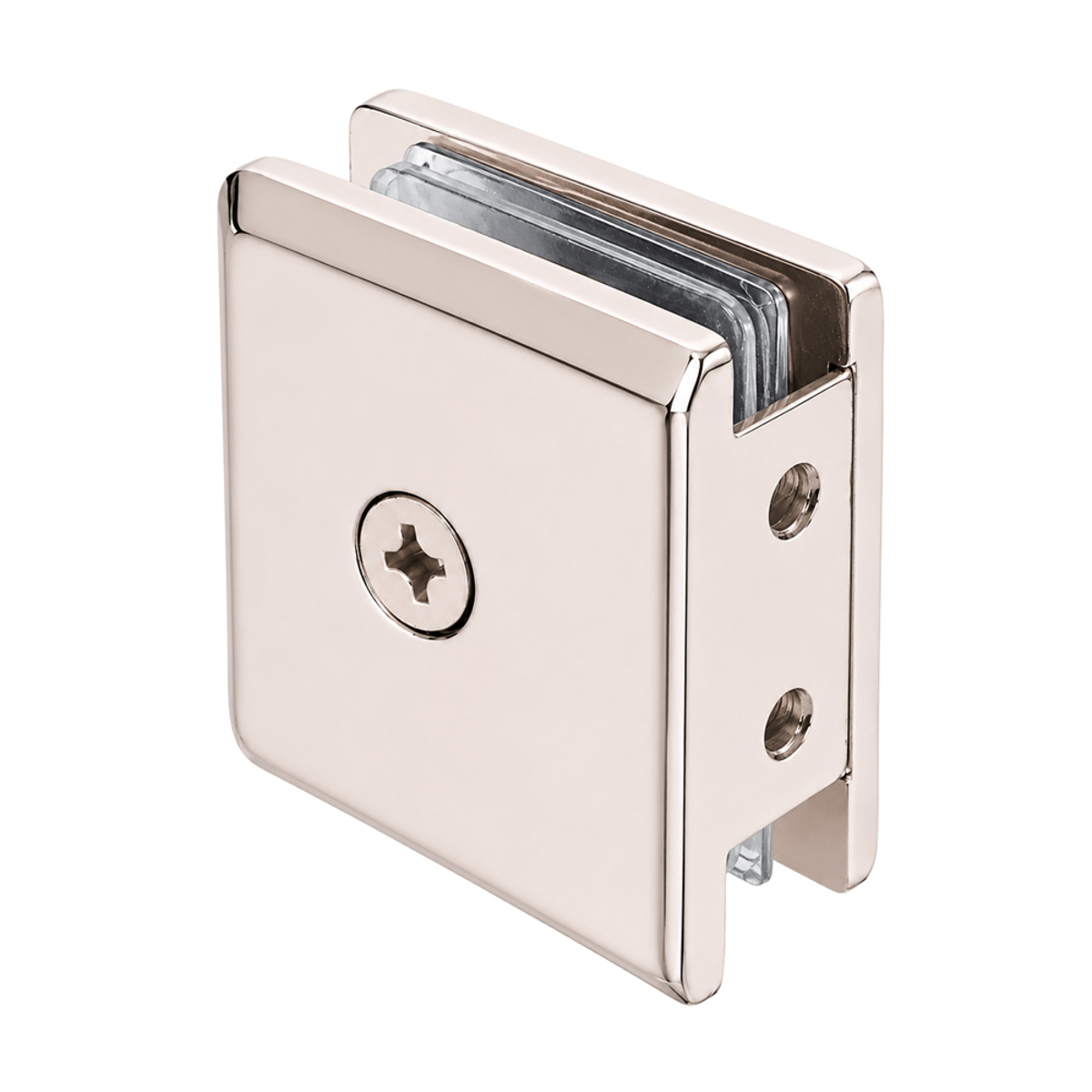

CRL BGCU1PN Polished Nickel Beveled Notch-in-Glass Fixed Panel U-Clamp

C.R. Laurence BGCU1PN Polished Nickel Beveled Style Notch-in-Glass Fixed Panel U-Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for use with monolithic tempered glass, this U-clamp accommodates glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), ensuring a secure fit and enhanced durability. Crafted from solid brass, the BGCU1PN not only delivers strength but also adds an elegant touch with its polished nickel finish, making it a stylish alternative to traditional U-channel options. The beveled design of the clamp contributes to the appearance of an 'all-glass' look, creating a seamless integration in modern bathroom designs. Installation is straightforward, as the clamp mounts directly to walls, ceilings, or floors, with a minimal clearance of just 1/16" (2 mm) between the glass and the wall. Clear silicone can be used for a clean, water-resistant seal. Please note that proper glass fabrication is required to accommodate the clamps. The BGCU1PN includes mounting screws and gaskets for convenience, making it an excellent choice for corner, niche, or tailor-made shower enclosures. Elevate your design with this refined, high-quality U-clamp from C.R. Laurence.

Polished Nickel Beveled Style Notch-in-Glass Fixed Panel U-Clamp

• For 3/8" to 1/2" (10 to 12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps
