Images may not represent actual product and finish

CRL BGCU1SB Satin Brass Beveled Notch-in-Glass Fixed Panel U-Clamp

Your Price: $28.39

Retail Price:$33.98

Your Savings:$5.59(16%)

Secure your frameless shower enclosure with the CRL Satin Brass Beveled Notch-in-Glass U-Clamp, designed for 3/8" to 1/2" glass.

Part Number : CRL_BGCU1SB

Availability: 366 In Stock

Quantity

Description

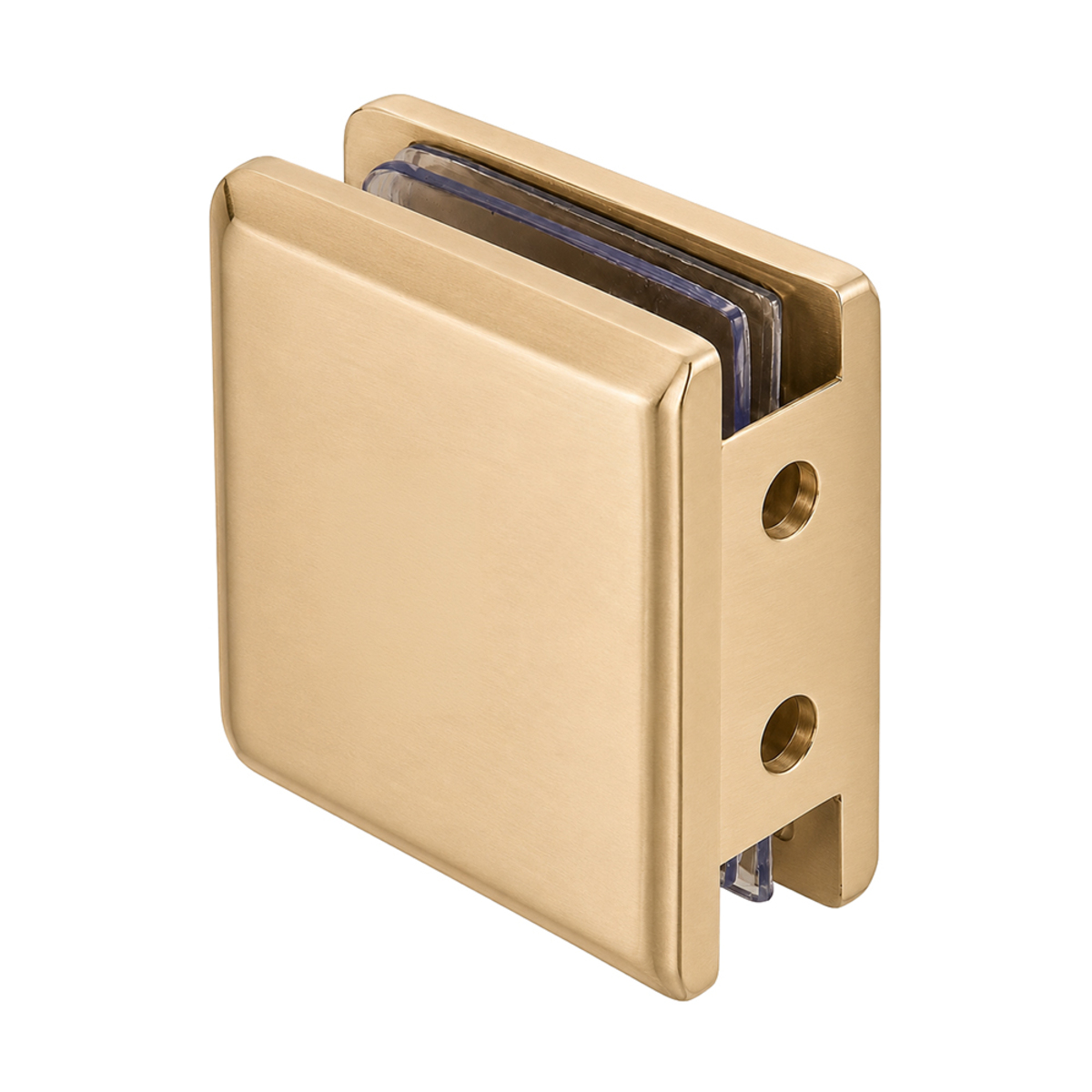

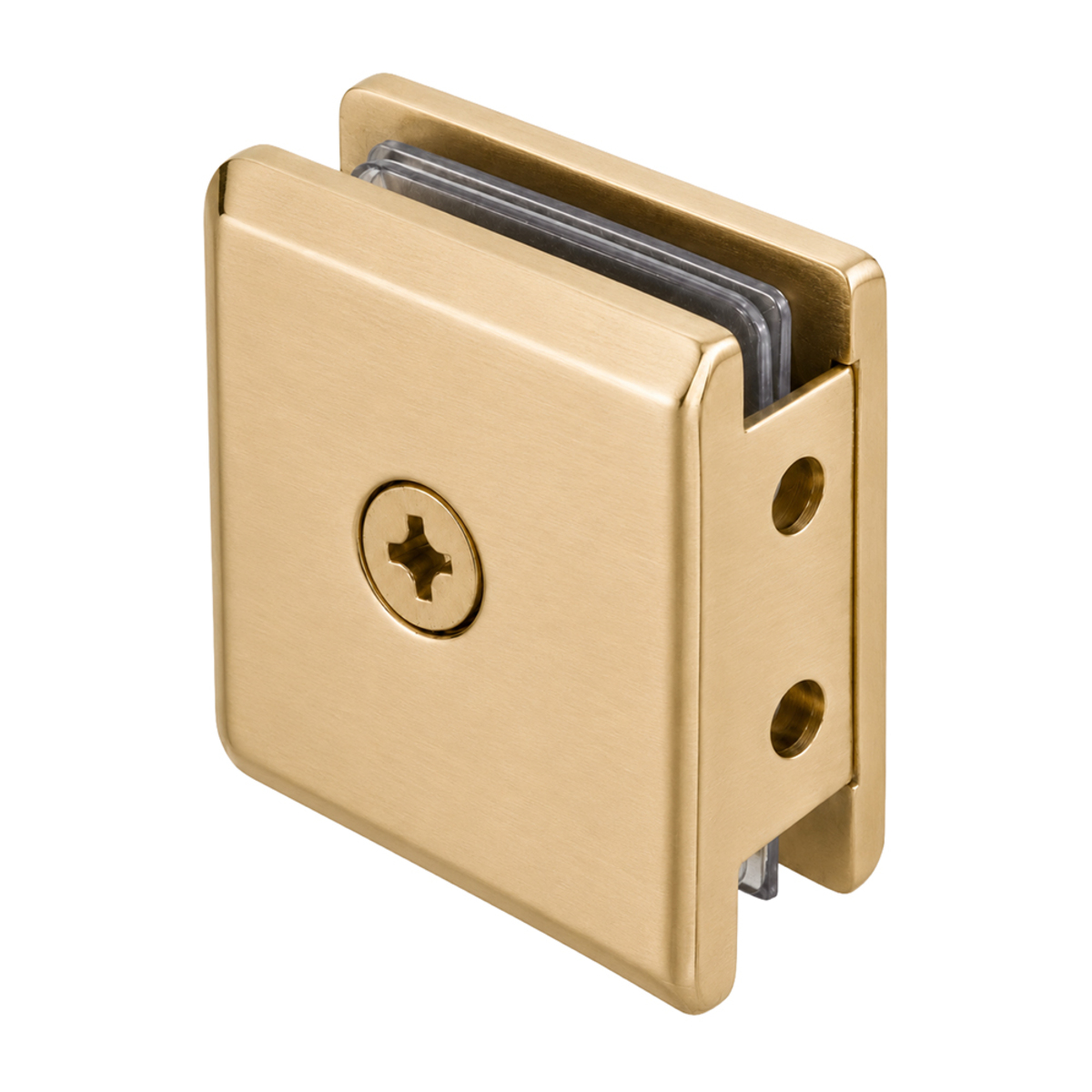

CRL BGCU1SB Satin Brass Beveled Notch-in-Glass Fixed Panel U-Clamp

C.R. Laurence BGCU1SB Satin Brass Beveled Style Notch-in-Glass Fixed Panel U-Clamp is an essential component for achieving a sleek, frameless shower enclosure. Designed for use with monolithic tempered glass ranging from 3/8" to 1/2" (10 to 12 mm) thick, this solid brass clamp secures fixed glass panels with elegance and durability. The beveled design offers a modern alternative to traditional U-channel fittings, enhancing the 'all-glass' appearance of your installation. It mounts directly to walls, ceilings, or floors, providing a secure hold while maintaining a polished look. A 1/16" (2 mm) clearance between the glass and the wall ensures a seamless finish, and the option to use clear silicone creates a clean, water-resistant seal. Installation requires specific glass fabrication to accommodate the clamp, but the included mounting screws and gaskets simplify the setup process. While the satin brass finish adds a touch of sophistication, it's important to note that brass may tarnish over time due to oxidation. Whether you're designing a corner shower, niche, or custom solution, the C.R. Laurence BGCU1SB U-Clamp is a reliable choice that combines functionality with a refined aesthetic.

Satin Brass Beveled Style Notch-in-Glass Fixed Panel U-Clamp

For 3/8" to 1/2" (10 to 12 mm) Glass
Use Monolithic Tempered Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps

CRL Beveled Wall Mount Clamp Notch-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water resistant seal.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 Requires Notch; BCU4, BGC037 and BGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Beveled

Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions

Finish/ Color:: Satin Brass

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Material: Brass

Mounting Type: Wall / Ceiling Mount

Shipping Limitations: None
