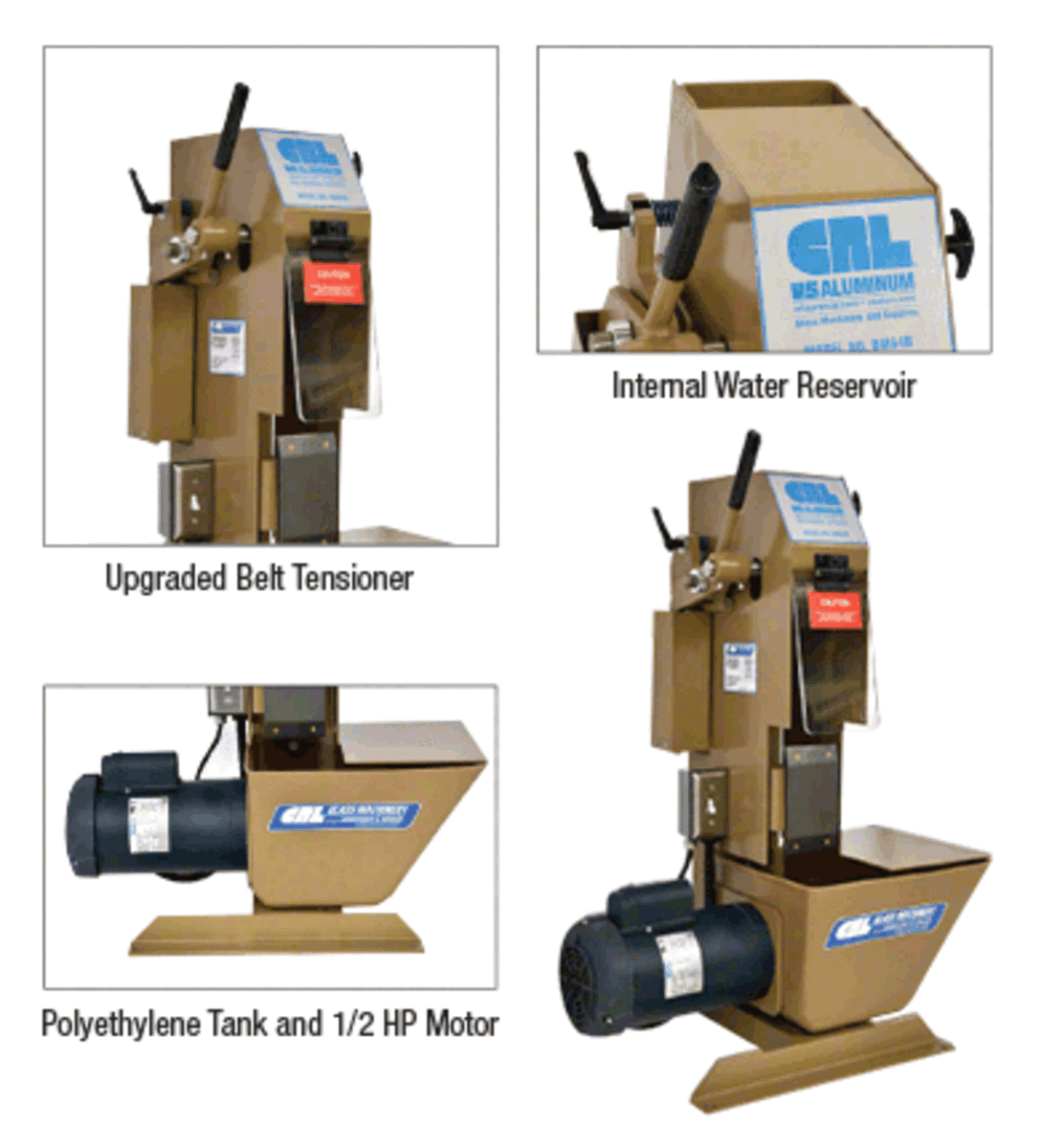

CRL BM64B 4" x 64" Bench Wet Abrasive Belt SanderC.R. Laurence BM64B 4" x 64" Bench Model Wet Abrasive Belt Sander is an essential tool for glass professionals seeking versatility and efficiency on the job. This portable sander is equipped with a heavy-duty, one horsepower, single-phase motor operating on 110V AC/60 Hz, ensuring powerful performance wherever it is needed. Its self-contained water tank eliminates the need for external water connections, allowing for wet grinding capabilities right at the worksite. Designed to accommodate standard 4" x 64" abrasive belts, this sander excels in both wet and dry applications, making it ideal for edge grinding tasks. The built-in spray nozzle delivers water directly to the belt for effective cooling and debris management, enhancing the polishing process. With a footprint of 27" x 18" and a height of 39", the BM64B can easily fit in any workspace or be mounted on a glass truck for added convenience. Weighing 200 lbs and built to OSHA requirements with CSA and UL certified components, the BM64B promises safety and reliability. Remember to always use the appropriate safety gear and consider utilizing a Ground Fault Circuit Interrupt Device during operation. Elevate your glass processing capabilities with this mobile and robust solution from C.R. Laurence.
4" x 64" Bench Model Wet Abrasive Belt Sander
- Extremely Mobile Unit is Ideal for Bench or Truck Bed
- Heavy-Duty, One HP, Single-Phase, 110V AC/60 Hz Motor
- Self-Contained Water Tank – No Water Hook-Up Needed
- The Portable BM64B is a Take-Anywhere Solution for Occasional Edge Grinding Jobs
This CRL Bench Model Belt Sander uses all standard 4" x 64" (102 mm x 1.63 m) Wet or Dry Abrasive Belts, and is specially designed for use in the shop or on the job site. It's perfect for bench work where there is only a limited need for edge-work capacity. This Sander can also be mounted right onto a glass truck for rough grinding, smoothing, and polishing the edges of glass on a job site. Water for wet grinding sprays on the back of the belt from a built-in spray nozzle connected to a built-in water tank. Just pour water in the holding tank and you can wet grind anywhere.
IMPORTANT NOTES: Always wear the proper safety gear when using any type of power tool. A Cat. No. GF1 Ground Fault Circuit Interrupt Device should be used with any type of wet-working electric tool.
All controls are built to OSHA requirements, utilizing CSA and UL Certified components.
UTILITIES:
Electrical - One Motor, Total 1 HP ( .745 kw)
Voltage - Single Phase, 60 Cycle, 115V AC
Power - 15 AMP Service @ 110V AC
BM64B SPECIFICATIONS:
Height: 39" (991 mm)
Width (Including Motor): 27" (686 mm)
Footprint: 27" x 18" (686 x 457 mm)
Shipping Weight: 200 Lbs. (91 kg)
Shipping Crate: 34" x 26" x 42"H (864 mm x 660 mm x 1.07 m)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Foot Print: 27 in. X 18 in. (686 mm X 457 mm)
Height: 39 in. (991 mm)
Power: 15 AMP Service At 110V AC
Shipping Crate: 34 in. X 26 in. X 42 in. (864 mm X 660 mm X 1067 mm)
Shipping Limitations: No UPS - Common Carrier Only
UL Listed: Yes
Voltage: Single Phase, 60 Cycle,115V AC
