C.R. Laurence BP05CA Clear Anodized 5" x 5" Offset Base Plate offers a reliable solution for securely mounting vertical posts in various railing applications. This base plate is specifically designed for 2-3/8" (60 mm) square aluminum posts and is compatible with all standard railings, making it a versatile choice for both residential and commercial projects. Crafted from durable aluminum and finished in a sleek clear anodized coating, the BP05CA not only provides strength but also enhances the aesthetic appeal of your installations. Available in seven standard colors, along with an unfinished chromate option for customization, this product allows for seamless integration into your design scheme. Installation is straightforward, as the base plate screws into vertical post raceways and features countersunk holes that accommodate four Cat. No. BPS112 Base Plate Screws. For added stability, it can be secured to the substrate using CRL Concrete Anchors or Lag Bolts, complemented by stainless steel washers (WSHR1) and color match bolt cover buttons (BTN1) for a polished finish. Each base plate includes a moisture barrier gasket (Cat. No. BPG1BL) to ensure long-lasting performance. With no shipping limitations, your project can proceed without delay.
Clear Anodized 5" x 5" Offset Base Plate
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

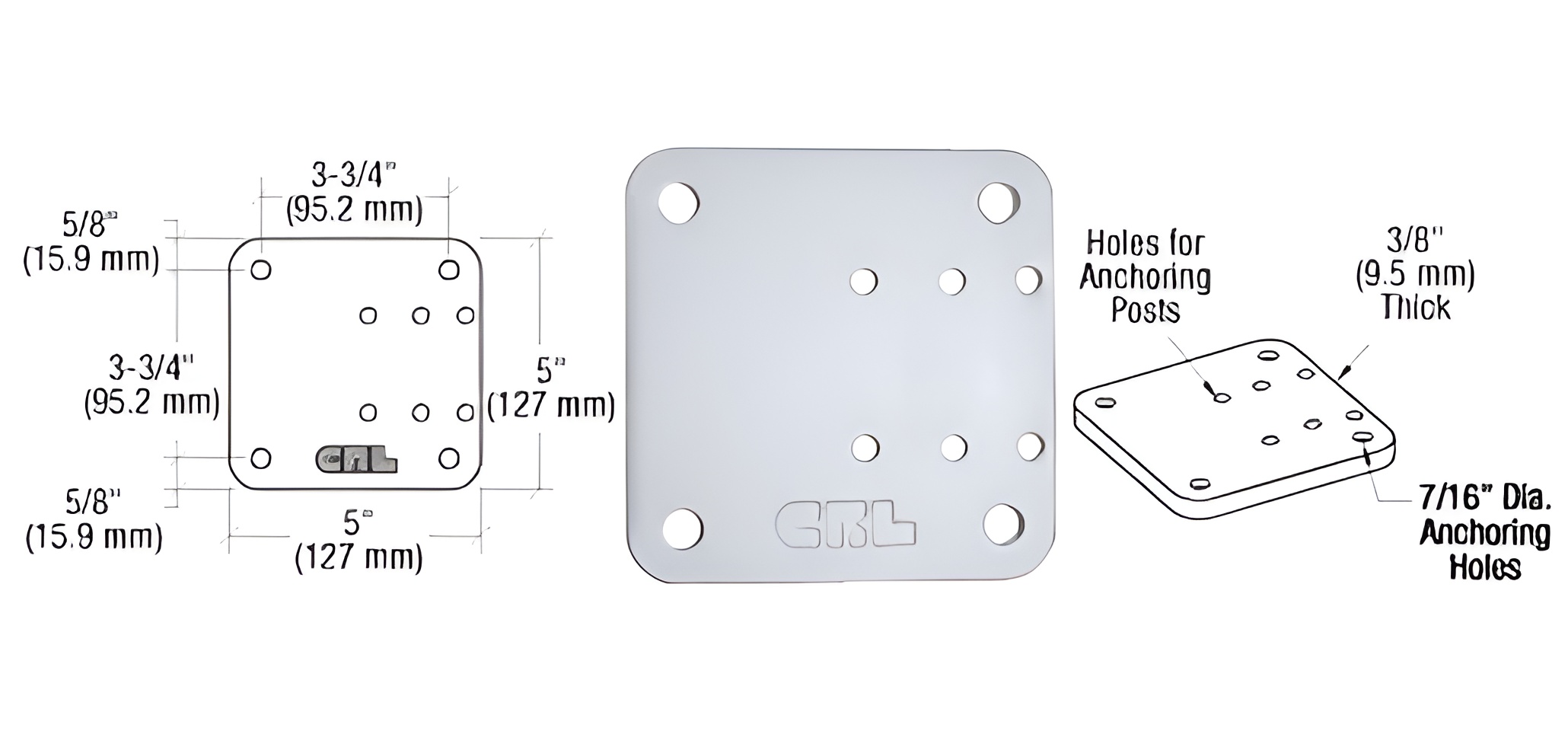

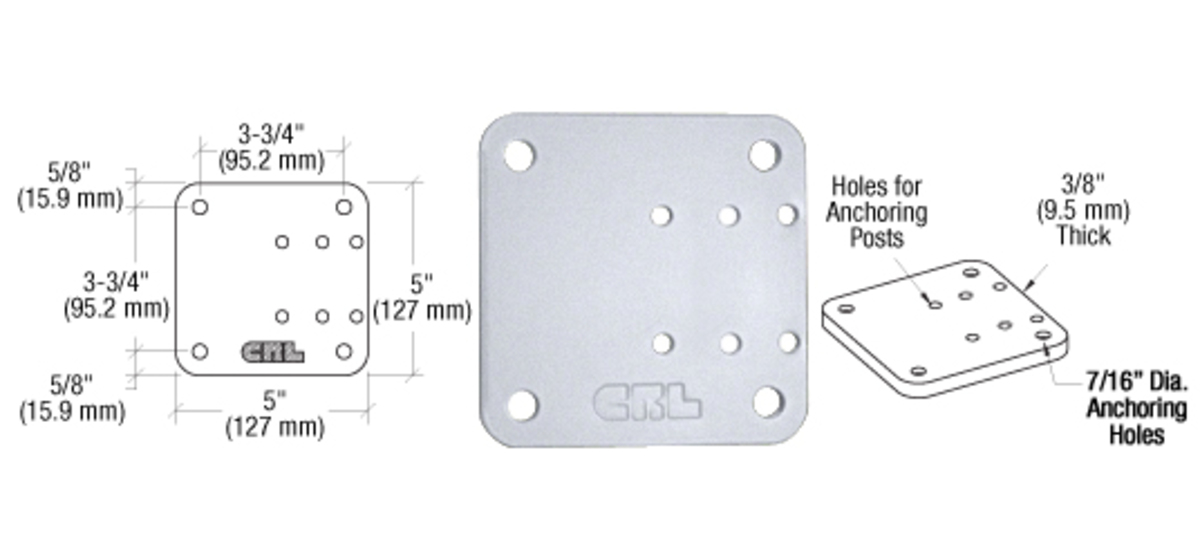

Base Plate Length: 5 in. (127 mm)
Base Plate Thickness: 3/8 in. (10 mm)
Base Plate Width: 5 in. (127 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Clear Anodized
Material: Aluminum
Shipping Limitations: None
