C.R. Laurence BP5S Silver Metallic 5" x 5" Square Base Plate offers a robust solution for securing railings with style and durability. Designed for use with 2-3/8" (60 mm) square aluminum posts, this base plate is perfect for various standard railings. The silver metallic finish not only enhances aesthetic appeal but also ensures longevity, making it suitable for both indoor and outdoor applications. The BP5S is crafted from high-quality aluminum and measures 5 inches by 5 inches with a thickness of 3/8 inch, providing a solid foundation for your installations. Its unique offset design allows vertical posts to be attached to one side of the base plate, optimizing space and functionality. Installation is straightforward, as the base plate screws into vertical post raceways and can be easily anchored to the substrate using concrete anchors or lag bolts. Each unit comes with a moisture barrier gasket (Cat. No. BPG1BL), ensuring enhanced protection against the elements. Additionally, users can achieve a polished look by pairing the base plate with stainless steel washers (WSHR1) and color match bolt cover buttons (BTN1). With seven standard colors available, the BP5S is versatile enough to complement any design scheme.
Silver Metallic 5" x 5" Square Base Plate
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

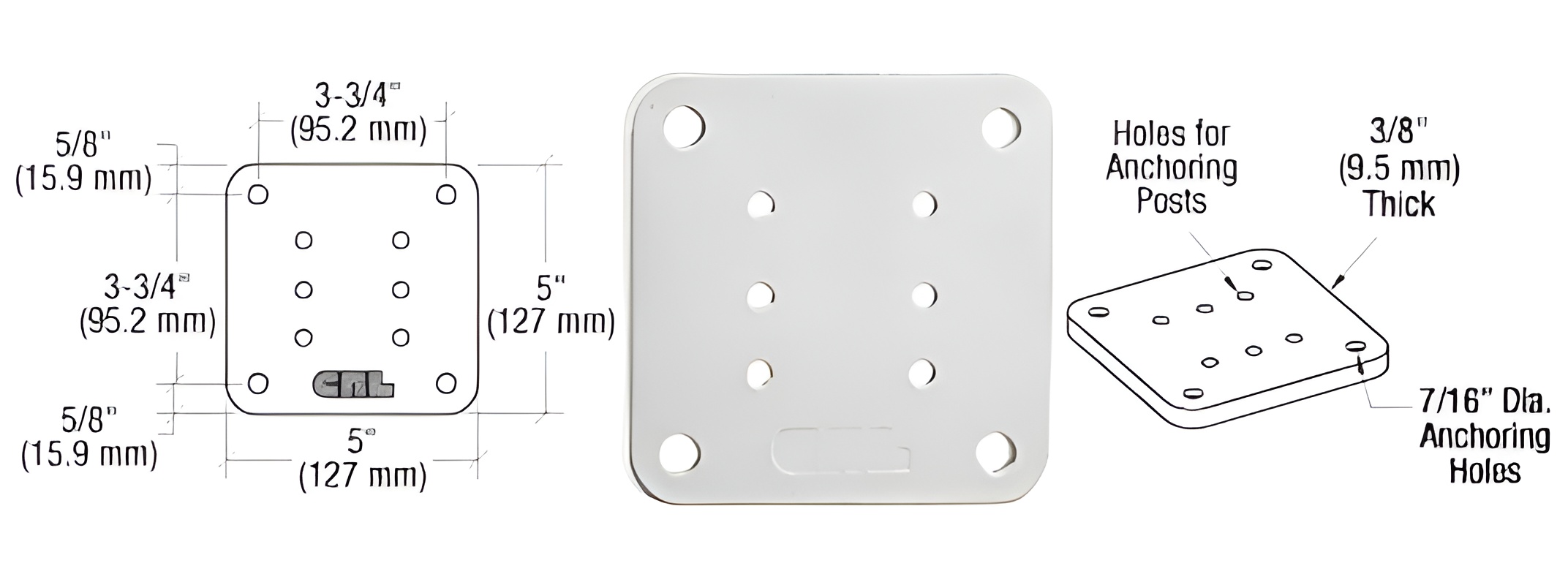

Base Plate Length: 5 in. (127 mm)
Base Plate Thickness: 3/8 in. (10 mm)
Base Plate Width: 5 in. (127 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Silver Metallic
Material: Aluminum
Shipping Limitations: None
